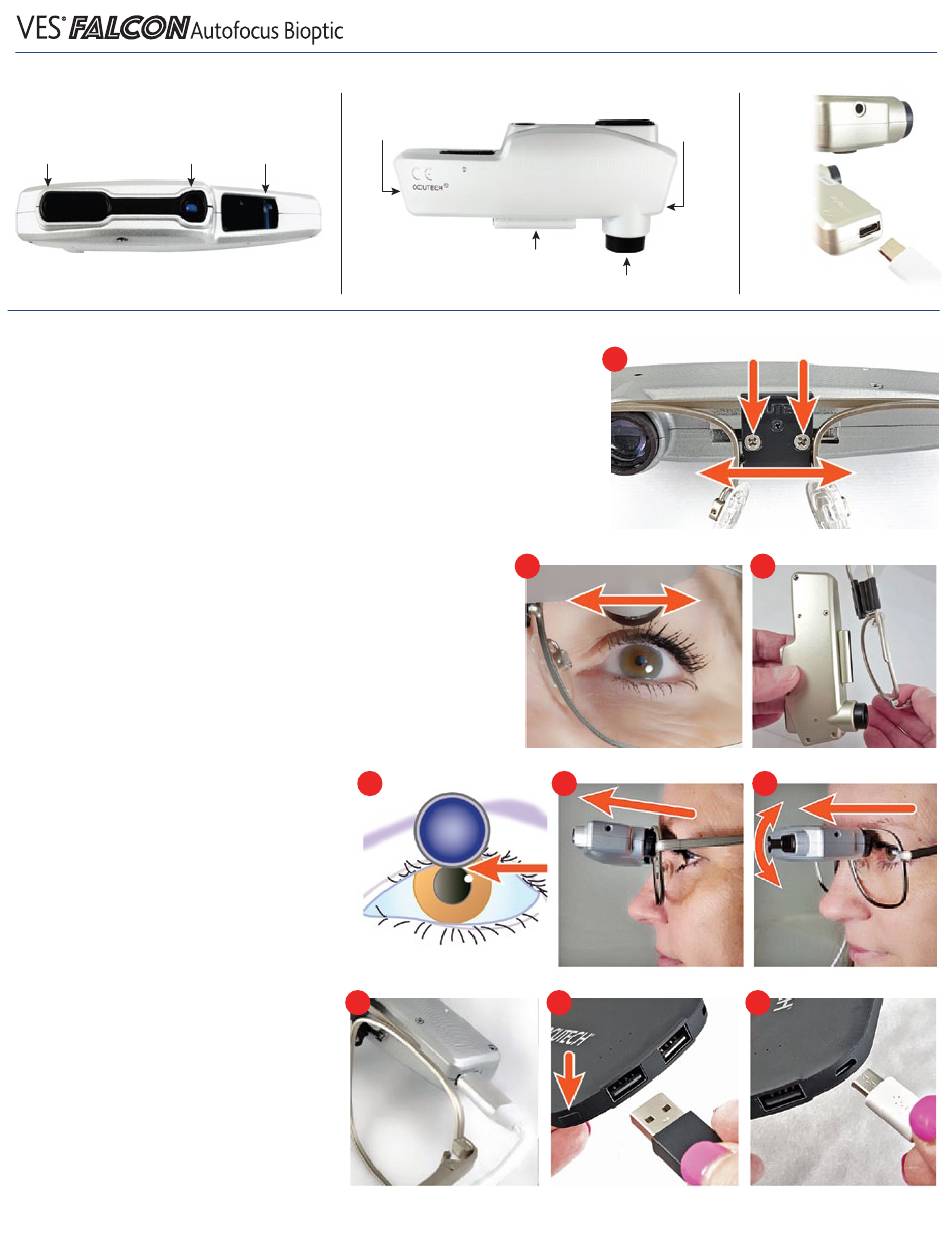

Ocutech VES FALCON Fittings Manual

Parts of the FALCON

IR IR
Emitters
Sensor
1. Align the eyepiece to center above the patient's pupil.
a. Loosen the two bridge screws.
b. Slide the telescope right or left to position the eyepiece directly above the pupil. Once in
position retighten the bridge screws slightly, but do NOT over-tighten.
c. To switch the telescope from one eye to the other,
loosen the two rear bridge screws and slide the telescope off the positioning rod.
Flip the telescope over and slide it back onto
the rod, then re-tighten the screws to keep it in position.
Do NOT over-tighten the bridge screws.

2. Align the vertical position of the telescope eyepiece

a. Adjust the nosepads on the frame to align the bottom of the eyepiece
with the top of the patient's pupil
b. When looking below the Falcon, the telescope will have an upward
tilted position. The red arrow shows angle of telescope while looking
beneath the Falcon.
c. Ask the patient to dip their head downward to look through the telescope
eyepiece. Adjust the viewing angle tilt of the telescope to be parallel
to the line of sight of the patient. The red arrow shows the straight-ahead
position of the falcon

3. Connect the USB cable to the battery

a. Do not disconnect the cable from the
telescope itself.
b. The battery will turn on automatically when the
USB cable is connected. The Falcon will
automatically run a brief self-check (this
will occur every time the power is turned on).
Press the power status button (red arrow)
to confirm that the battery has adequate
charge to operate the Falcon. The number
of lights illuminated shows the percent
of charge.
The Falcon will operate for approximately
8 hours on a full battery charge.
c. Recharge the battery using the Micro-USB
cable provided.
d. To turn off the Falcon, simply remove the USB
cable from the battery.
FITTING GUIDE
Power
Port
Telescope
Window
2a
3a
USB-C cable connected
to Falcon (do not remove)
Eyepiece
Frame
Eyepiece
Mounting Sleeve
1a
1b
2b
3b
Power supply cable
OCUTECH
Vision Enhancing Systems
Focus
Focus Port
Port
Power
Port
1c
2c
3c
Battery charge cable
®
