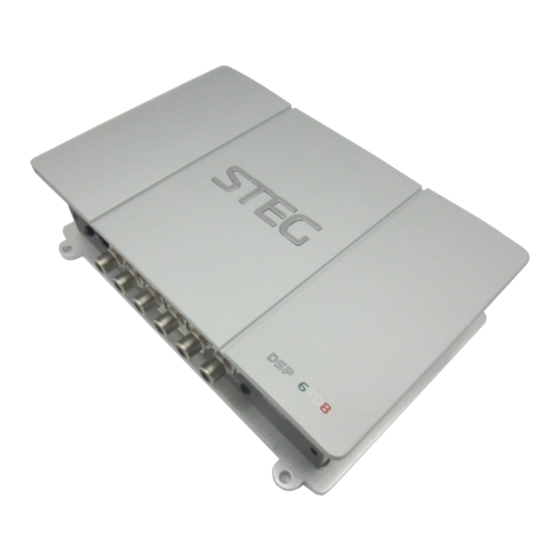

- Page 1 Ower s Manual Digital Signal Processor DSP 6TO8 DIGITAL SIGNAL PROCESSOR D04-MEN047-00...
-
Page 2: Table Of Contents
PRODUCT BRIEF INTRODUCTION PRODUCT BRIEF INTRODUCTION INDEX 1.PRODUCT DESCRIPTION-PRECAUTIONARY NOTES The DSP is a digital signal processor essential to maximize the acoustic performance of your car audio system. It consists of a 32-bit DSP processor and 24-bit AD and DA converters. 1. -
Page 3: Dsp And Drc Installation
PRODUCT BRIEF INTRODUCTION PRODUCT BRIEF INTRODUCTION 4.CONNECTION PANELS-DESCRIPTION 3.DSP AND DRC INSTALLATION 4.1 Input signals External dimensions REMOTE REMOTE LINE INPUT LINE INPUT OPTICAL OPTICAL CONTROL CONTROL SUB R SUB R SUB L SUB L INPUT INPUT REM OUT 2 REM OUT 2 REM OUT 1 REM OUT 1... -
Page 4: Output Signals
PRODUCT BRIEF INTRODUCTION PRODUCT BRIEF INTRODUCTION 5.CONNECTIONS 4.2 Output signals 5.1 Power supply and remote turn on WARNING: to power the device,use 1 mm (16 AWG) cables. 1.FRONT1/A+B To Midrange LINE OUTPUT LINE OUTPUT POWER POWER PC CONTROL PC CONTROL FRONT2/C+D To Tweeter Rear/E+F To Midbass Subwoofer /G+H To Subwoofer... -
Page 5: Personal Computer And Digital Remote Coontrol(Drc)
PRODUCT BRIEF INTRODUCTION PRODUCT BRIEF INTRODUCTION 5.2 Personal computer and Digital Remote Coontrol(DRC) 5.4 Low-Level input signals AUX IN L/R: Auxiliary analog stereo sigal . Sensitivity is adjusttable from 0.6 to 5V RMS . REMOTE REMOTE LINE INPUT LINE INPUT REMOTE REMOTE LINE INPUT... -
Page 6: Software Installation
PRODUCT BRIEF INTRODUCTION PRODUCT BRIEF INTRODUCTION 6.SOFTWARE INSTALLATION 6.Create shortcut to desktop 7.Click Install to begin 6.1 DSP GUI installation 1.Insert CD, Double-Click DSP 8.Wait until the process finish 9.Installation completed, reboot computer 2.Click NEXT 3.Click NEXT 7.GUI OPERATION INSTRUCTION 7.1 Guide to GUI after installation 1. -
Page 7: Interface Introduction
PRODUCT BRIEF INTRODUCTION PRODUCT BRIEF INTRODUCTION 4. Enter the GUI you long for! Now you could tone every signal details as experts do To bring sound effect on your beloved car to a higher level. 7.2 Interface introduction 5. When you open the DSP software interface, it will pop up the following options. 1.DSP interface guidance Please click on this desktop icon Conduct install the driver. - Page 8 PRODUCT BRIEF INTRODUCTION PRODUCT BRIEF INTRODUCTION 4. Default setting(restore to default setting) CH mode(click on the default in put state). optional (2CH 4CH 6CH MIX). 5.Save to DSP Output channel:A. B. C. D. E. F. G. H. Input soundtrack:FR. FL. RR. RL. SUB R. SUBL. When you click the drop-down button, you can choose the stste of the channel input.
-
Page 9: Stand Installation Reference
PRODUCT BRIEF INTRODUCTION PRODUCT BRIEF INTRODUCTION 6. DELAY . 8.STAND INSTALLATION REFERENCE 1.Auto configuration(base on 1.5 setting). 8.1 5 CHANNEL STAND ALONE TREBLE MODE 2.Manual configuration, change specifications in selected CH manually. Front1/A+B To Modbass Front1/A+B To Modbass Hi Level input Hi Level input Front2/C+D To Tweeter Front2/C+D To Tweeter... -
Page 10: Channel Separate Treble,Middle Mode
PRODUCT BRIEF INTRODUCTION PRODUCT BRIEF INTRODUCTION 10.TECHNICAL FEATURES 8.3 8 CHANNEL SEPARATE TREBLE,MIDDLE MODE POWER SUPPLY Voltange 9.0-15VDC Idling current 0,5A Switched off without DRC Switched off with DRC Front1/A+B To Midrange Front1/A+B To Midrange Front1/C+D To T weeter Front1/C+D To T weeter Remote IN voltage 6-15 VDC Rear/E+F To Midbass...
