Summary of Contents for Kvik U843

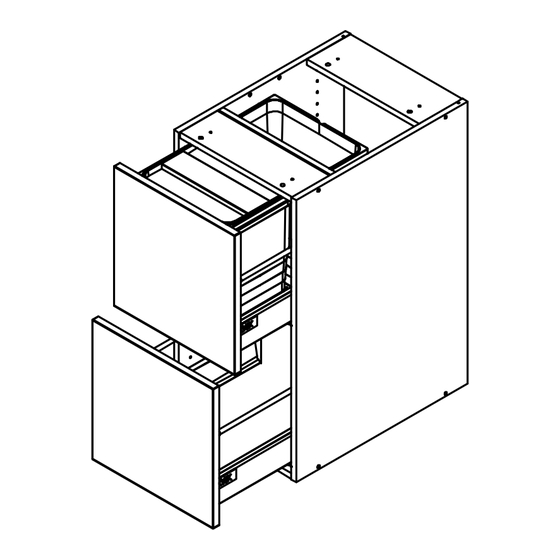

- Page 1 U843 Check out easy mounting of your kitchen Front without integrated handle L04130 L04140 L04130 L04140 30 cm 40 cm Front with integrated handle L04130 L04140 L04130 L04140 30 cm 40 cm 28-05-2019 0a...
- Page 2 U843 Check out easy mounting of your kitchen DU80,***,000 / 176 (Support ) 2 pcs (Base-top) (Side) (Back panel) (Suspension list) 1 pcs 1 pcs 1 pcs 2 pcs Drawer slide Left Drawer slide Right ID20102 ID20103 Trash system Trash system...
-
Page 3: Side Left
U843 FIG. Side Left Screw flh 3,5x15 mm 4 pcs (Side) Screw flh 3,5x15 mm Drawer slide Left 1 pcs NB!!! FIG. Side Right Screw flh 3,5x15 mm 4 pcs (Side) Screw flh 3,5x15 mm Drawer slide Right 1 pcs... - Page 4 U843 FIG. Side Left Euro screw 6,3x11 mm 2 pcs (Side) Euro screw 6,3x11 mm Screw flh 3,5x15 mm 3 pcs Drawer slide Left 1 pcs FIG. Side Right Euro screw 6,3x11 mm 2 pcs (Side) Euro screw Screw flh...
- Page 5 U843 FIG. (Support ) (Suspension list) (Suspension list) NB!!! (Support ) (Side) (Base-top) FIG. (Back panel) 28-05-2019 0a...
- Page 6 U843 FIG. Screw flh 3,5x45 mm 4 pcs (Side) FIG. Screw flh 3,5x45 mm 4 pcs 28-05-2019 0a...
- Page 7 U843 FIG. ID20102 / ID20103 Trash system 030/ 040 28-05-2019 0a...
