Operating instructions
Multicode reader
UK
O2I5xx

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the O2I5 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for IFM O2I5 Series

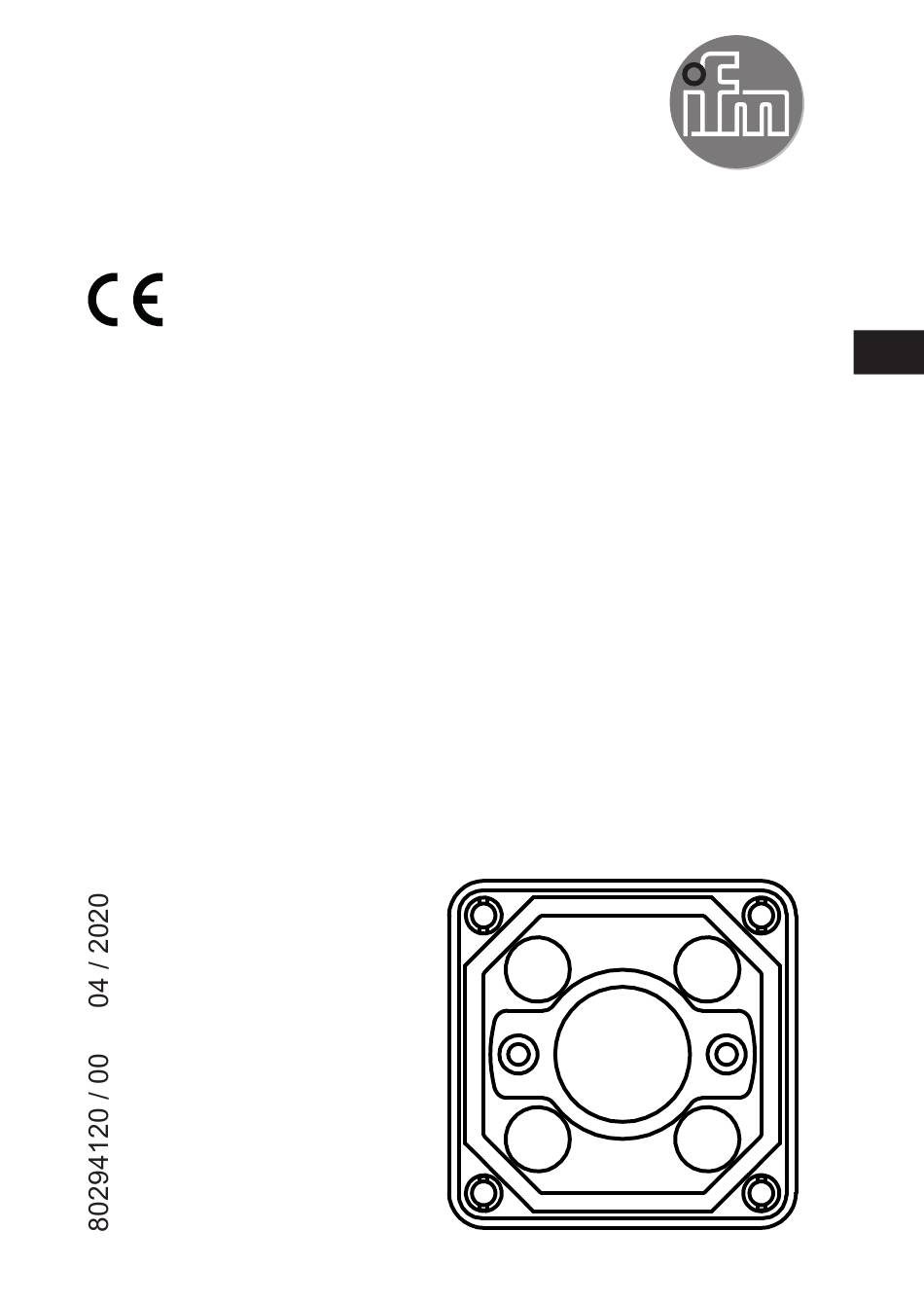

  • Page 1 Operating instructions Multicode reader O2I5xx...
  • Page 2: Table Of Contents

    Content 1 Preliminary note ���������������������������������������������������������������������������������������������������4 1�1 Symbols used ������������������������������������������������������������������������������������������������4 1�2 Warnings used �����������������������������������������������������������������������������������������������4 1�3 Copyright and trademarks �����������������������������������������������������������������������������4 1�4 Open source information �������������������������������������������������������������������������������5 2 Safety instructions �����������������������������������������������������������������������������������������������6 2�1 Laser protection class ������������������������������������������������������������������������������������7 3 Functions and features ����������������������������������������������������������������������������������������7 3�1 Characteristics ����������������������������������������������������������������������������������������������7 3�2 Device safety �������������������������������������������������������������������������������������������������8 4 Items supplied������������������������������������������������������������������������������������������������������8 5 Installation������������������������������������������������������������������������������������������������������������9...
  • Page 3 10 Web front end ��������������������������������������������������������������������������������������������������21 11 Approvals/standards ����������������������������������������������������������������������������������������21...
  • Page 4: Preliminary Note

    ► Measures to take� 1.3 Copyright and trademarks © All rights reserved by ifm electronic gmbh� No part of these instructions may be reproduced and used without the consent of ifm electronic gmbh� All product names, pictures, companies or other brands used on our pages are the...
  • Page 5: 1�4 Open Source Information

    The price of the ifm products has then to be paid for the respective device itself (hardware) and not for the firmware� For the latest information on the license agreement for your product please visit www�ifm�com...
  • Page 6: Safety Instructions

    We charge €30 for each request� Please write “source for product Y” in the memo line of your payment� Your request should include (i) the name of the covered binary, (ii) the name and the version number of the ifm product, (iii) your name and (iv) your return address�...
  • Page 7: 2�1 Laser Protection Class

    2.1 Laser protection class CAUTION! Exposure to radiation The use of operating and adjusting devices not indicated here may lead to dangerous exposure to radiation� ► Only use the operating and adjusting devices indicated in the operating instructions� Visible laser light; LASER CLASS 1� EN/IEC 60825-1:2007 and EN/IEC 60825-1:2014 complies with 21 CFR 1040 except for deviations pursuant to Laser Notice No�...
  • Page 8: 3�2 Device Safety

    4 Items supplied • O2I5xx multicode reader • Operating instructions ► Only use accessories from ifm electronic� Available accessories: www�ifm�com The optimum function is not ensured when using components from other manufacturers� The device is supplied without installation and connection accessories�...
  • Page 9: Installation

    If the device is permanently used in wet areas, the nut of the M12 Industrial Ethernet cable (e�g� E11898) may corrode� Use a cable with a high-grade stainless steel nut for permanent use in wet areas� It is possible that the devices mounted side by side interfere due to simultaneous exposure� Available accessories: www�ifm�com...
  • Page 10: Electrical Connection

    ► Firmly screw the M12 connectors to the device� For the scope of validity cULus: Minimum temperature rating of the cable to be connected to the field wiring terminals: 70 °C� Cover the unused sockets with protective caps (E73004)� Tightening torque 0�6���0�8 Nm� Available accessories: www�ifm�com...
  • Page 11: 6�1 Wiring

    6.1 Wiring (1) Ethernet M12 socket, D-coded, 4 poles TD + RD + TD - RD - screen (2) Power supply M12 connector, A-coded, 5 poles trigger input switching output 1 - ready switching output 2 Fig� 4: Wiring 6.1.1 Pin 1 (U+) / pin 3 (GND) The permitted supply voltage is 18���30 V DC�...
  • Page 12: 6�1�3 Pins 4 / 5 (Switching Outputs)

    The trigger input can be debounced internally (preset: internal debouncing deactivated)� Internal debouncing prevents several short pulses from triggering� The pulse must be at least 2 ms long to be recognised as a trigger� Depending on the electrical installation, debouncing is not necessary� t [ms] ①...
  • Page 13: 6�2 Wiring Example

    ③ : industrial PC for evaluation and triggering ④ : proximity sensor ⑤ : voltage source DC 24 V Fig� 6: Wiring example of a trigger circuit An adapter cable (Y cable) is available for external trigger sensors: www�ifm�com...
  • Page 14: 6�3 External Illumination Unit

    Article number Illumination unit, transmitter red light 630 nm O2D909 An adapter cable (Y cable) is available for external illuminations: www�ifm� 6.4 External trigger source An external trigger source is connected to the trigger input of the device (e�g� diffuse reflection sensor)�...
  • Page 15: Operating And Display Elements

    7 Operating and display elements ① : teach LED (green) ② : Ethernet LED (green) ③ : power LED (green) ④ : Out 1 LED (yellow) ⑤ : Out 2 LED (yellow) ⑥ : teach LED (yellow) ⑦ : teach button Fig�...
  • Page 16 Description LED Out 2 Ethernet power Out 1 device is ready for operation, Ethernet is not connected flashes no parameters set or parameter at 0�5 setting was not loaded into the device flashes device is in the parameter 2x at 0�5 setting mode switching output 1 switched flashes...
  • Page 17: 7�1 Teach Device

    > The code is not taught if the yellow teach LED briefly flashes (→ 7). 7.1.1 Configure teaching The teaching of codes is configured with the ifm Vision Assistant software� The recognition of codes can, for example, be restricted� The ifm Vision Assistant software and the software manual are available on the internet: www�ifm�com...
  • Page 18: 7�1�3 Lock Teach Button

    The teach button can be locked using the ifm Vision Assistant (→ software manual)� In the following situations, the teach button is automatically locked: • The device is configured by the ifm Vision Assistant (exception: If the ifm Vision Assistant is in the monitor mode, the teach button is unlocked)�...
  • Page 19: 8�1 Set Parameters Of The Device

    The device parameters can be set in two ways: • ifm Vision Assistant software (→ see software manual) • teach button (→ 7.1). The ifm Vision Assistant software and the software manual are available on the internet: www�ifm�com 8.2 Detect object...
  • Page 20: 9�1 Replace Device

    9.1 Replace device When the device is replaced, the saved configuration can be transferred to the new device� The internal ifm mass storage device of the old device is inserted in the new device� The service lid may only be opened for the transfer of the configuration�...
  • Page 21: 9�2 Update Firmware

    9.2 Update firmware The firmware of the device can be updated using the ifm Vision Assistant software� Configurations saved in the device get lost when the firmware is updated� Create a backup copy of the configurations before updating the firmware: ►...
