Evil Mad Scientist Egg-Bot Electro-Kistka Operating Instructions

Operating Instructions
!

Part 1: Gathering parts and supplies

4
3
Additional recommended tools and supplies:
• A set of tweezers
• Dyes for eggs, prepared in jars according
to manufacturer's instructions.
• Drying rack for eggs
• A spoon (for raising/lowering eggs) for each dye color

Part 2: Setup

1. Begin with power off. Fully insert the kistka tip into its hole, in the red aluminum block at the front of the
heater assembly. Use the 5/64" hex driver to gently tighten it in place with the provided screw.
2. Unscrew the screw at the top rear of the EggBot's pen arm, to remove the pen holder. Replace it with the
Kistka heater assembly, in the same location. The kistka tip should point directly towards the pen motor shaft.
3. Arrange the Power control board behind the EggBot. Ensure that as the pen arm moves to and fro, the cable
will not bind or catch upon the EggBot frame. Finally, connect the power supply to the control board.
CAUTION: This is a that tool attains high temperatures and produces hot wax.
Hot tools and wax can cause personal injury (burns) and/or property damage.
• Do not touch hot surfaces or wax.
• Do not allow children to use this tool without direct, constant supervision.
6
5
7
1
2
1
Egg-Bot Electro-Kistka
Electric hot wax pen for EggBot with
interchangeable tips and adjustable power.

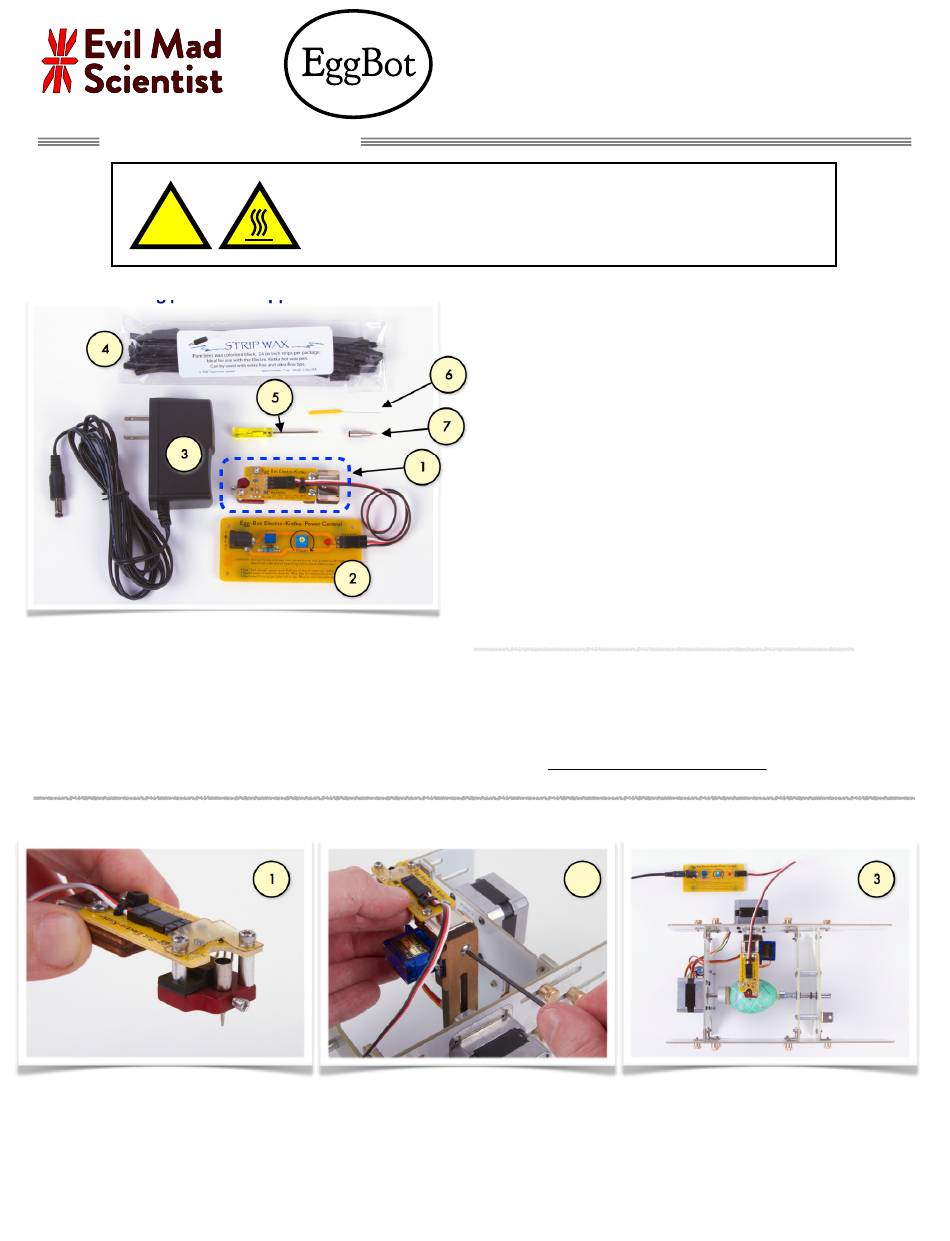

Here is what comes with the Electro-Kistka:
1. Kistka heater assembly
2. Power control board
3. Plug-in power supply (UL listed, universal input)
4. Strip beeswax, black
5. Miniature screwdriver (for power adjustment)
6. Tip cleaning wire (for #0 – #3 tips)
7. Kistka tip, medium (#2)
You'll also need:
1. An EggBot Kit
2. 5/64" hex driver (included w/ EggBot)
3. An appropriate work surface
4. Scrap paper (for testing wax flow)
5. Eggs or other media to print upon
Eggs should be clean, dry, and at room temperature.
• Paper towels or low-lint cloths, for cleanup and/or drying eggs
• A low-temperature heat gun for removing wax
• Tools for blowing eggs
See tips at http://wiki.evilmadscientist.com/blow
2
v 1.0
3
Page 1 of 2
