Summary of Contents for EMR BDAMON02-MODEM

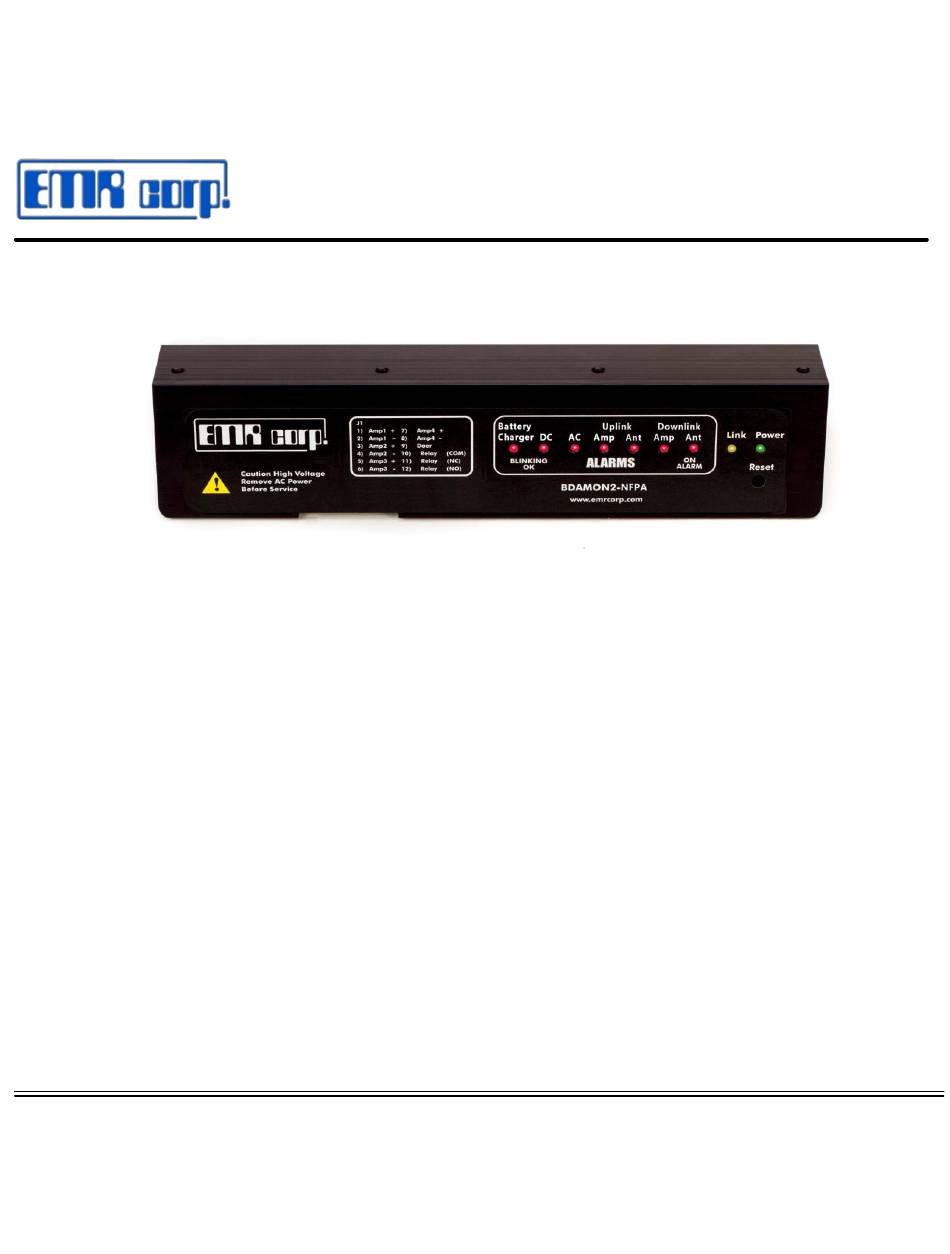

- Page 1 BDAMON02-MODEM Bi-Directional Power Amplifier Monitor USERS MANUAL Rev. 7 EMR CORPORATION 17431 N. 25 Avenue - Phoenix, Arizona 85023 Phone: (623) 581-2875 - Toll Free: (800) 796-2875 - Fax: (623) 582-9499 sales@emrcorp.com – www.emrcorp.com...
-
Page 2: Table Of Contents
............BDAMON02-MODEM Manual – V3.D1... -
Page 3: Introduction And Features
The EMR BDA Monitor (Model #BDAMON02-MODEM) is a microprocessor-controlled unit capable of monitoring the Primary AC, Power Supply/Battery DC Voltage, and the DC Current for up to four RF amplifiers used in any EMR Signal Enhancement System. BDA monitoring features vary depending on the relevant hardware configuration. This documentation covers features which are common to most users. -
Page 4: Physical Connectivity
USERS MANUAL Physical Connectivity The BDA monitor comes pre-installed in an EMR Bi-Directial Amplifier (BDA) system. When the BDA system is plugged into a reliable power source the power indicators on the monitor unit will light/glow. Connect the telephone line included to the RJ11 cable to the port located at the base of the BDA enclosure. -
Page 5: Programming The Bda Monitor
A>> Com Port Setup B>> Alarm and Misc. Setup C>> Auto Dialer Setup D>> Modem Setup E>> View Current Readings & Alarms F>> Reset Alarms G>> Clock Setup X>> Exit > Fig. 2 BDAMON02-MODEM Manual – V3.D1 © 2019 EMR Corporation... -
Page 6: Using Menus
Enter New Setting [X to Exit] > Fig. 4 Note: The current Baud rate remains until the user exits the programming mode. Press “X” to exit and return to the main menu. BDAMON02-MODEM Manual – V3.D1 © 2019 EMR Corporation... -
Page 7: Setup Menu
H>> Amp #4 Current High Alarm >=Disabled I>> DC Voltage Low Alarm <=12.00 Vdc J>> DC Voltage High Alarm >=14.90 Vdc K>> AC Alarm =Disabled L>> Door Alarm=Disabled M>> Audible Alarm=Disabled X>> Exit > Fig. 6 BDAMON02-MODEM Manual – V3.D1 © 2019 EMR Corporation... -
Page 8: Misc. Menu
C>> TP-1 Voltage = 13.60 D>> Hysteresis (0 to 255) = 10 E>> Data String = Disabled X>> Exit > Fig. 8 Note: Options A, B & C are factory settings and not user changeable. BDAMON02-MODEM Manual – V3.D1 © 2019 EMR Corporation... -
Page 9: Data String
Press “C” from the “Setup Menu” to display the “Password Setup” menu (Fig. 9). This menu displays the following option: ************************************************ EMR Corp. BDAMON2MODEM V1.021 ************************************************ Password Select The Following A>> Password = 123456 X>> Exit > Fig. 9 Press “A” to change the password. BDAMON02-MODEM Manual – V3.D1 © 2019 EMR Corporation... -
Page 10: Auto Dialer Menu
• Auto Answer from 0 to 255 Rings. Inputting “0” turns off auto answer. ************************************************ EMR Corp. BDAMON2MODEM V1.021 ************************************************ Modem Setup Select The Following A>> Modem Baud Rate = 9600 Baud B>> Auto Answer = 1 Ring X>> Exit > Fig. 11 BDAMON02-MODEM Manual – V3.D1 © 2019 EMR Corporation... -
Page 11: View Current Readings & Alarms
• Change/View the Time • Change/View the Date • Refresh the Menu to see current time/date. Clock Setup Select The Following A>> Time 15:26:07 B>> Date 09/28/2010 C>> Refresh Menu X>> Exit Fig. 13 BDAMON02-MODEM Manual – V3.D1 © 2019 EMR Corporation... -
Page 12: Hookup Diagram
Amp. Settings (1-4 ), DC (1-4 ), DC Enable/Disable Enable/Disable Settings, Alarm Settings, Alarm Data String Data String Enable/Disable Enable/Disable (AC Alarm, Door (AC Alarm, Door Alarm, Audible Alarm, Audible Alarm) Alarm) BDAMON02-MODEM Manual – V3.D1 © 2019 EMR Corporation... -
Page 13: U.s. Fcc Part 68 Statement
If the problem is with the equipment, discontinue use and contact your dealer or vendor. The FCC also requires the transmitter of a FAX transmission be properly identified (per FCC Rules Part 68, Sec. 68.381 (c) (3)). BDAMON02-MODEM Manual – V3.D1 © 2019 EMR Corporation... - Page 14 17431 N. 25th Avenue – Phoenix, Arizona 85027 Tel: (623) 581-2875 – Toll Free: (800) 796-2875 – Fax: (623) 582-9499 www.emrcorp.com – sales@emrcorp.com...
