- Page 1 Merlin 35 CLIP ON THERMAL IMAGING...
- Page 2 ATTENTION! The proper usage of the device is important for safe exploitation! Therefore read carefully the present manual! If the device was left in storage for a longer period of time, before exploitation check its funtionality. Disassembling of the device is prohibited,except in authorized repair centers.
- Page 3 ATTENTION! When carrying or transporting the device,put the protective lens cap! Condensation can cause fogging of the optical surfaces! Condensation occurs when the temperature or humidity changes as follows: · When moving the device from cold to warm place or vice versa; ·...

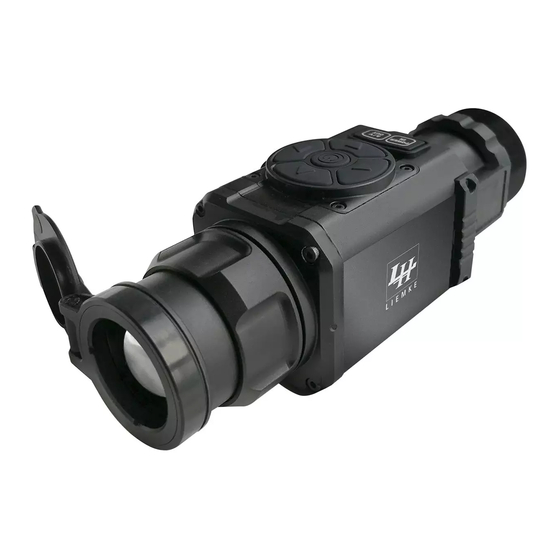

- Page 4 APPEARANCE Attention! Export of Merlin 35 May have export limitations depending on the laws in your region.
- Page 5 APPEARANCE NOTE All images used in this instruction manual are for illustrative purpose only. Actual product may vary due to product enhancement. Lens Cover Detachable focus ring Button Video out / USB Attachment place Battery compartment cap...
- Page 6 CONTROLS ATTENTION! The main operations are performed through the “ Button” ( 5 position button) . ATTENTION! Turn off the device after usage, otherwise you can permanently Turn off the device after usage, otherwise you can permanently damage the batteries! damage the batteries! POWER DOWN...
-
Page 7: Short Press
CONTROLS Short Press Long Press Palette Main Menu Stand-by Power on/off Brightness Picture Rangfinder Video Wifi on/off... -
Page 8: Status Bar
STATUS BAR The status bar is located in the lower part of the display and shows informationon the actual operating status of the sight, including: Color palette C1~C6 Current digital zoom magnification. Battery charge with current level in percent. -
Page 9: Quick Menu
QUICK MENU The Quick menu allows change of basic settings.Enter the Quick menu with a short press of any button in Up/Down/Left/Right. Power On / Off Long Press Power button to power on /off the device. Stand By Short Press Power button to make device StandBy, short press Power button again to be back to normal display. - Page 10 QUICK MENU Rangefinder Merlin 35 are equipped with a stadiametric rangefinder which allows the user to estimate approximate distance to an object of known size. 168m You will see on the display: measurement bars, icons of three reference objects and respective distances for the three objects.
- Page 11 MAIN MENU NOTE Enter the main menu with a long press of the Up button. Press the Left/Right buttons to select between the main menu options. EXIT Press the Up/Down button to Exit Main Menu.Main Menu will not disappear automatically. OLED Brightness Press the Up / Down buttons to change OLED brightness from -2 , -1 , 0 , 1 , 2 .
- Page 12 Alignment All Merlin 35 are adjusted on the laboratory test equipment with accuracy from 0.1 mrad to 0.3 mrad. The final accuracy depends on customer rifle scope, parallax of used rifle scope and shooting distance. Merlin 35 is preset on 350m .
- Page 13 5) By pressing Left or Right button to move between X, Y and EXIT. By pressing Up button to change positive value (X+, Y+), by pressing Down button to change negative value (X-, Y-). x=11 y=-9 x=11 y=-9 x=11 y=00 5)-1 5)-2 6) The setting is saved by pressing EXIT button Up or Down...
- Page 14 Info Merlin 35 OC19350001 This option allows the user to view the following information about the imager. Restore Press Up/Down buttons to Restore Default Setting, there will be no further indication. The following settings will be restored to their original values before changes made...
-
Page 15: Battery Installation
BATTERY INSTALLATION Turn the battery compartment knob counterclockwise until stop and remove it. Install two CR123A batteries in opposite polarity direction. Turn the battery compartment knob clockwise until stop – the latches from both sides of the cover will pull out (see the drawing). Replace the battery cover and press it until its clicking position - make sure the cover is closed on both sides. -
Page 16: Cable Connection
CABLE CONNECTION 1. Power supply / Firm ware update Serves for power supply and Firmware update 2.Video Cable Video cable serves for external displaying... - Page 17 SPECIFICATIONS Technical Data Sheet of Merlin35 Clip On 335C Detector Type Uncooled Resolution 384×288, Vox Frame Rate 50Hz Pitch 17μm Spectral range 8-14μm NETD less then 50mk Optical Characteristics Objective lens 35mm Magnification 10.6°×8.0° Close-up range Dioptre Adjustment -5D-4D Functions Zoom 2x/4x/PIP Palette...
-
Page 18: For Android Users
Wi-Fi Connection For Wi-Fi use, download APP with the name "Cam802", it can be found in Apple and Android APP store: 1. Enable Wi-Fi in your MERLIN Settings 2. Connect your smart device with the Wi-Fi of the MERLIN-35 (Wi-Fi password is 12345678) 3.
