Summary of Contents for Liemke Pirol-50

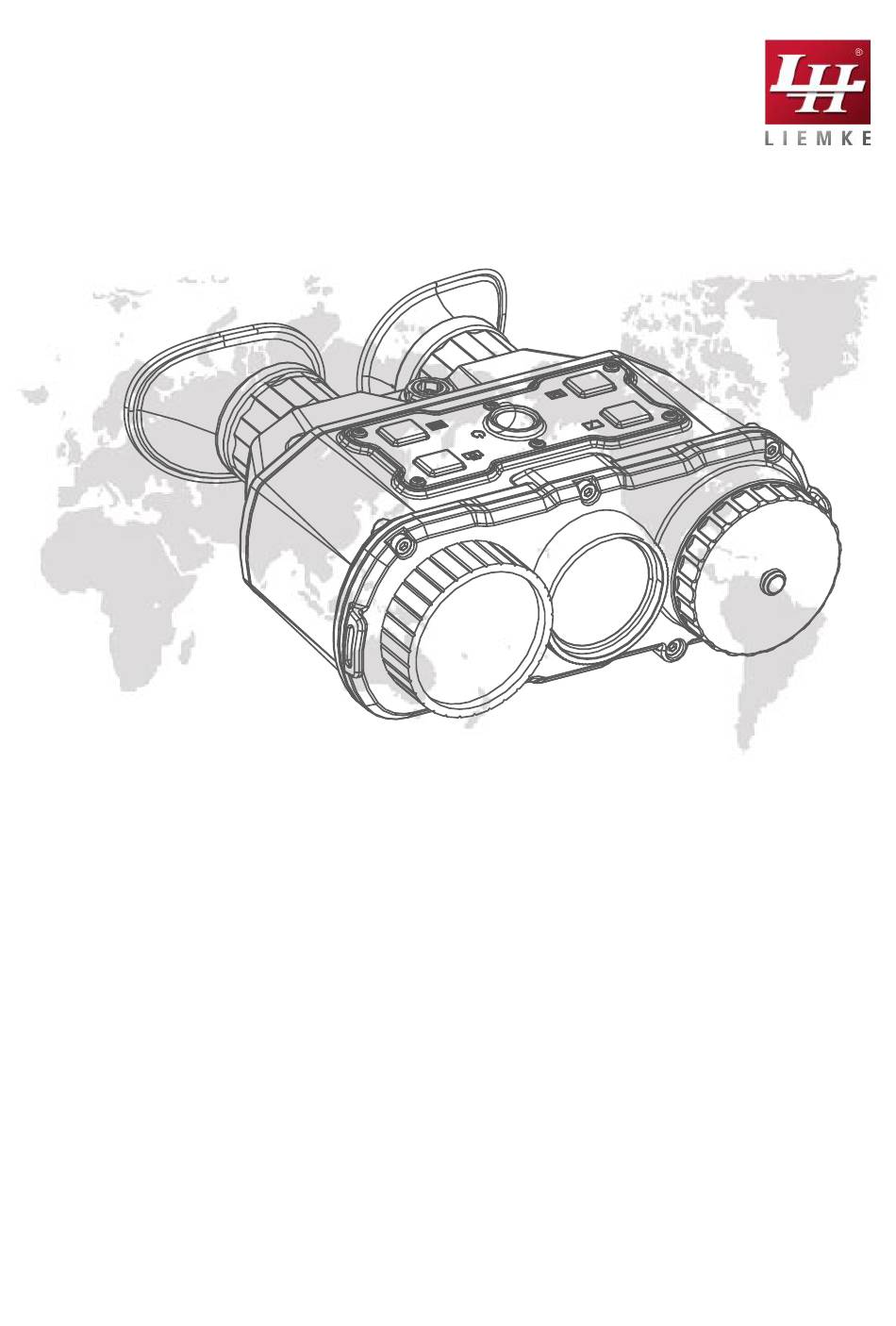

- Page 1 Handheld Thermal Binoculars User Manual...
-
Page 2: Front View
Dual-Lens Handheld Thermal Binoculars | User Manual Appearance 1.4.1 Components Eyepieces Aviation Connector Front View Battery Compartment Visible Light Lens Thermal Lens Tripod Screw Top View Approaching Sensor Rear View... -
Page 3: Cables Description
Dual-Lens Handheld Thermal Binoculars | User Manual Eyepieces Cover the eyes. Visible Light Lens Let the visible light in. IR Lens Let the infrared light in. Battery Compartment The battery is here. Tripod Screw Install the binocular on tripod. Aviation Connector Connect with the cables. -
Page 4: Device Operation
Dual-Lens Handheld Thermal Binoculars | User Manual For the descriptions of the menu buttons, see the table below. Press the key to switch between Near, Middle, and Far. Adjust Key Hold the key to adjust the view parameters. Press the key to switch the pallets. Mode Key Display the Mode menu. - Page 5 Dual-Lens Handheld Thermal Binoculars | User Manual Push and hold it, at the mean time slide it toward the inside to assemble the power adapter. Connect the power adapter to the battery charger. Insert the batteries in the charger with positive/negative terminals corresponded.
-
Page 6: Battery Installation
Dual-Lens Handheld Thermal Binoculars | User Manual Complete battery charging and disassemble the battery. Battery Installation Purpose: Insert the batteries into the battery compartment. Steps: Rotate the battery cover anticlockwise to disassemble it. Insert four batteries with positive/negative marks match with that of the battery compartment Align the shape of battery cover with that of the batteries and cover the batteries. -
Page 7: Power Off
Dual-Lens Handheld Thermal Binoculars | User Manual Power On/Off 2.3.1 Power On Step: When the binocular is sufficiently charged, press the key to power on the binocular. Notes: See the battery icon for the electricity quantity. means battery is fully charged, and means that the battery runs low. - Page 8 Dual-Lens Handheld Thermal Binoculars | User Manual Anchor Point To disconnect the cable, lift the cable. Focus Notes: Do NOT touch the lens directly with your finger, or place any sharp objects near them. Steps: Slightly rotate the focus wheel to focus the objective lens. Slightly rotate the focus wheel to focus the objective lens.
-
Page 9: Binoculars Setup
Dual-Lens Handheld Thermal Binoculars | User Manual Rotate Left/Right 3 Binoculars Setup Menu Description Step: Hold the button to show the menu. In the menu, the direction keys, OK key, and the Exit key are shown below. Previous Back Next See the figure below for the menu interface. -
Page 10: Local Output
Dual-Lens Handheld Thermal Binoculars | User Manual Digital Zoom Storage Battery Optical Thermal Palettes Fusion Color Back Previous Next Image Image Display Display Cursor Digital Image Video CVBS OFF Reset Contrast Brightness Contrast Brightness Zoom Local Output Before you start: Connect the binocular to the display unit via CVBS interface of the aviation plug. -
Page 11: File Export
Dual-Lens Handheld Thermal Binoculars | User Manual File Export Before you start: Connect the binocular to your PC via USB interface of the aviation plug. Refer to Section 2.4. Purpose: Export the videos and snapshots with your PC. Steps: In your PC, go to the Removable Disk. Double-click to open the disk. -
Page 12: Image Brightness & Contrast
Dual-Lens Handheld Thermal Binoculars | User Manual Press the key to confirm. Press the key and key to set the brightness value. The higher, the brighter. Screen Contrast Steps: Hold the key to show the menu of binocular. Press the key and key to move the cursor to Display Contrast submenu. -
Page 13: Cursor Display
Dual-Lens Handheld Thermal Binoculars | User Manual 3.5.3 Cursor Display Purpose: Display the cursor on the live view, and the target can be indicated better. Steps: Hold the key to show the menu of binocular. Press the key and key to move the cursor to Cursor submenu. - Page 14 Dual-Lens Handheld Thermal Binoculars | User Manual Press to move up. Press to move down. Press to move left. Press to move right. Press to set the offset. Hold to exit. To move the cursor position, adjust the cursor moving offset first. Hold the key to go to offset setting interface.
-
Page 15: Digital Zoom
Dual-Lens Handheld Thermal Binoculars | User Manual 3.5.4 Digital Zoom Purpose: Enable the digital zoom function to enlarge the image display. Steps: Hold the key to show the menu of binocular. Press the key and key to move the cursor to Digital Zoom submenu. - Page 16 Dual-Lens Handheld Thermal Binoculars | User Manual Purpose: The binocular has dual-lens: thermal and visible light lens. You can set the thermal/optical view to show thermal channel, visible light channel, or both them combined. For thermal view, you can set the palettes. Step: In the live view interface, hold the key to display the...
-
Page 17: Capture And Video
Dual-Lens Handheld Thermal Binoculars | User Manual 4 Capture and Video Capture Settings 4.1.1 Capture Snapshots Step: In the live view mode, press the key to capture a snapshot. When capturing succeeded, it shows Snapshot captured. When capturing failed, it shows Capturing failed. 4.1.2 View Snapshots Steps: Hold the... -
Page 18: Video Playback
Dual-Lens Handheld Thermal Binoculars | User Manual Hold the key to delete the selected snapshot. can delete the snapshot while viewing the live view. Video Settings 4.2.1 Video Recording Steps: In the live view mode, hold the key to record videos. - Page 19 Dual-Lens Handheld Thermal Binoculars | User Manual Press the key to confirm. Press the key and key to select video. Hold the key to delete the selected video. 5 Appendix Dimensions 69 mm 168 mm [6.61''] [2.72 '']...
