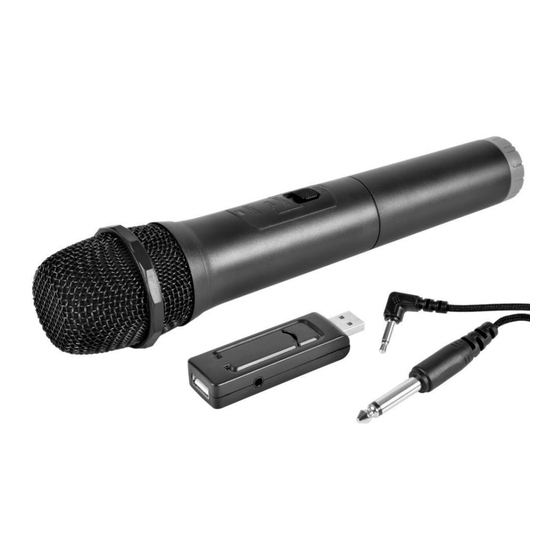

- Page 1 U-MIC Item ref: 171.806UK 171.807UK USB Powered UHF Handheld Microphone User Manual Version 1.2 Caution: Please read this manual carefully before operating Damage caused by misuse is not covered by the warranty...
- Page 2 Introduction Thank you for choosing the U-MIC for your wireless microphone requirements. This system is designed to provide a reliable, cable-free solution with minimal setup and ease of use. Please read and keep this user manual to get the best results from your product and avoid damage through misuse.
- Page 3 Operation The U-MIC receiver is designed to connect to a microphone input channel on a mixer or amplifier. Turn down the volume level on the microphone input of the mixer or amplifier before connecting to avoid loud noises when connecting. Connect the 3.5mm plug end of the supplied lead to the U-MIC receiver (5) and the 6.3mm plug into an appropriate microphone input channel.
- Page 4 Specifications Order ref. 171.806UK 171.807UK Model U-MIC-863.2-H U-MIC-864.8-H Carrier frequency 863.2MHz 864.8MHz RF power 10mW Power supply USB 5V 1A (receiver), 2 AA batteries (transmitter) Frequency response 50Hz - 15kHz Capsule Dynamic cardioid Output connection 3.5mm mono jack Wireless range Up to 50m Dimensions: transmitter 240 x 50mmØ...
