Hitachi ST-150NV User Manual

Fitness sorter
Hide thumbs

Advertisement

Fitness Sorter
Satisfied with our counterfeit detector?
Here comes a machine with a complete solution using the
most advanced state-of-the-art technology.
Introducing, the new ST-150NV and ST-150NF.
This Machine is designed to make your banknotes safe and
your duties easier than ever before.
Rev. 1.1.2
Date: 2016. 07. 26

Advertisement

loading

  Related Manuals for Hitachi ST-150NV

No related manuals

  Summary of Contents for Hitachi ST-150NV

  • Page 1 Satisfied with our counterfeit detector? Here comes a machine with a complete solution using the most advanced state-of-the-art technology. Introducing, the new ST-150NV and ST-150NF. This Machine is designed to make your banknotes safe and your duties easier than ever before.
  • Page 2: Table Of Contents

    8. CF Level ........................57 9. Machine Model ......................60 10. Machine Setting ......................61 11. System Setting ......................62 12. Network Setting......................82 13. Specification ......................84 14. Error Code ......................... 85 15. Maintenance ......................87 Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 3: Introduction

    The machine is designed for user’s convenience, optimized for high performance and easy maintenance. ST-150NV(NF) has high connectivity interfaces and 7” full color graphic LCD display. For Safety Use In this section, the compliance matters are described in order to use the product safely, and to prevent you and other people from the damages brought by the product to the human bodies or properties.
  • Page 4 1m or less from volatile combustible materials or curtains. 1m or less from heating apparatus such as stoves, heaters etc. The place with direct winds blown from air conditioners, ventilating openings etc. Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 5 Do not use or put the combustible materials such as thinner, combustible gas, or a high-volatile object around/inside the product. Otherwise, it may cause explosion and/or fire due to heating from the product or flashing from power supply.. Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 6 2. The product should be used at the specified frequency. If it is used at other than the specified frequency, it may cause an accident. Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 7 4. Do not turn of air heating suddenly when the product is completely cold. Moisture may adhere inside the product due to sudden air heating and it may cause electric shock. Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 8 3. When working with a door opened, confirm it is locked. It may become a cause of injury because the door may suddenly close. Do not touch the gear etc. It may cause injury. Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 9 Then, please contact our distributor near you or our designated dealers. It used or left as it is, it may cause fire and/or electric shock. Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 10: Packing List

    ST-150NV(NF) USER Guide Packing List Manual ST-150NV(NF) Power Cable Options External Display OSD Kit Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 11: Appearance

    ST-150NV(NF) USER Guide Appearance <Front View> Hopper Guide Hopper LCD Display Operation Keys Reject Pocket Stacker Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 12 ST-150NV(NF) USER Guide <Rear View> Gap Adjust Knob Power Supply Socket Power Switch USB-S (Devices) USB-H (PC) Printer External Display Hitachi Terminal Solutions Korea Co., Ltd.

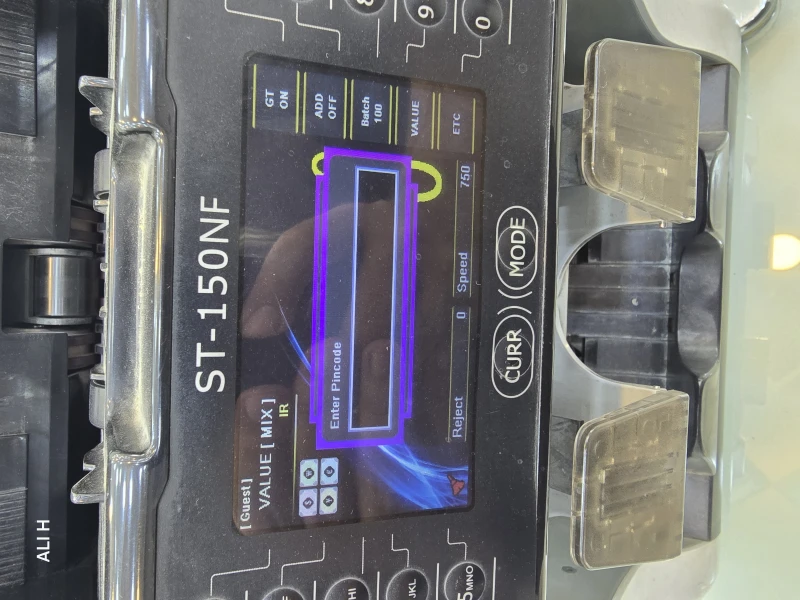

  • Page 13: Screen Description

    ST-150NV(NF) USER Guide 1. Screen Description Counting Operation Counting Value Mode 1 Number Sensors Operation Mode 2 Currency Reject Counting Speed Number 1) Key Operation Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 14 Short Key Change counting Speed. ∧∨ Long Key Page at Setting Mode. > < Short Key Change value and move curser or page at Setting Mode. Short Key Enter the relevant menu. 1 ~ 0 Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 15: Basic Operation

    ST-150NV(NF) USER Guide 2. Basic Operation 2-1. Currency - Change local currency. When long press “CURRENCY”, the installed currencies are shown together and you can select the currency directly with number key. Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 16 Mix - Count all denominations of selected currencies. SP - The first inserted denomination is sent to Stacker Pocket. SG - The selected denomination is sent to Stacker Pocket. Long press MODE key and select the denomination. Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 17 (Pincode is needed.) Press 2 ~ 5 key for turning on or off the sensors. Press 1 key for turning on or off all sensors. Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 18 After count the notes, press PRINT/SEND key and check counting result.  Barcode (Russia only)  You can connect Barcode Reader to ST-150NV(NF) via USB port. Press “7” key and scan Barcode. When you press “9” key, the scanned barcode is printed with counting result. ...
  • Page 19 When press “9” key, print the counting result via Printer.  Reject When press “0” key, you can check the reason of the rejected notes. You can check the counting result for each version by pressing “1” key. Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 20: Operation Mode 4 (Option)

    ST-150NV(NF) USER Guide 3. Operation Mode 1 – Sorts very clean notes. 3-1. ATM (ST-150NF Only) – Sort clean notes by fitness standards. 3-2. FIT (ST-150NF Only) Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 21 ST-150NV(NF) USER Guide – Count notes normally. 3-3. VALUE Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 22 After select operation mode, if press “9” key, GT result of the selected mode is printed to Printer. After select operation mode, if press “8” key, GT result of the selected mode is saved to USB stick. Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 23 You can clear GT Result by pressing “7” key but Pincode is needed. 4-2. ADD - The total counting result is accumulated. 1) Manual Add You can enter counting result about notes and coin manually. When press ADD key, Manual Add menu is shown. Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 24 After select the denomination by pressing number keys, enter the number of notes and press “SET” key for saving. (For example 10 EUR – 2 notes) Press START/STOP key and exit the Manual Add menu. Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 25 If ADD function is “ON”, you can active verify function. When long press “7” key, verify function is shown as below. If you count the notes in verify function, counting result is not added in the previous counting result. Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 26 ST-150NV(NF) USER Guide 4-3 Batch 1) Batch number. (5 ~250) When press “BATCH” key, you can enter batch number directly After enter batch number, you need to press SET key for saving. Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 27 Long press “SET” key After enter Pincode, try to press “SET’ key. When long press “BATCH” key, you can enter reject batch number directly After enter batch number, you need to press SET key for saving. Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 28 In main screen, if press “8” key, Preset Batch number is seleted in order. After press number key, enter batch number and you save batch by “SET” key. You also change the Batch for each Mode. (Mix, SP and SG mode) Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 29 – Select Direction, Serial and Version Mode by pressing “0” key. 4-4. ETC 1) Direction (NONE, Face, ORG) Press “2” key and select Direction mode. Face Sort the notes by face of the notes. Sort the notes by face and orientation together. Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 30 Press “3” key and select the scanned image data for transferring it to PC. Serial: Send serial image to PC. None: No data is transferred to PC. When you select “Serial”, 3 menus appear. 2-1) SN transfer Serial image data is transferred via LAN. Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 31 When Batch is full, print the counting result via Printer automatically. Auto Finish When count is finish regardless of Batch, print counting result via Printer automatically. Manual When you long press “PRINT/SEND”, you can print counting result via Printer. Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 32 When you print Serial number, output form of Serial number is Text. Image When you print Serial number, output form of Serial number is Image. Both You can print Serial number for both Text and Image form. Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 33 ON - Sorts the notes by version. (Old, New and Very New) 4) Old Version & Select Version 4-1) Old Version By pressing “5” key, you can select the machine Count or Reject old version notes. Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 34 You can select denomination and version of the notes for Couting or rejecting. User When long press “5”key, following screen is shonw and you can select the denomination and version. Change the version by pressing “←” or “→” key. Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 35 Once : Dispenser mode is operated 1 time. Continue : Dispenser mode is operated continuously. ● 3. Dispenser Option Amount : Dispenser mode is operated by Amount. User : Press “2” key and set the Amount for each denomination. Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 36 ST-150NV(NF) USER Guide Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 37 ST-150NV(NF) USER Guide 6) External Pincode is needed If select “Enternal FND”, you can connect External Display to the machine. OSD NTSC/PAL OSD is for displaying counting result to Monitor. Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 38 Press “↑” or “↓” key and save or load user settings by USB stick. Up : Export Export User Setting by pressing “↑” key. Down : Import Import User Setting by pressing “↓” key.. Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 39 Auto Mode is for separating Unfit and Suspect note from Fitness and ATM mode. You can use the GT function and ADD function ( include “Verify” function) in Auto Mode. Go to Menu by long pressing START/STOP key. Press “4. System Setting”. Press “0. Operation”. Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 40 When the note is rejected by Unfit reason. ● Suspect or Unfit When the note is rejected by Suspect or Unfit reason. ● Suspect and Unfit When the note is rejected by Suspect and Unfit reason together. Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 41 You cannot use “Validate Continue” and “Validate Clear” functions of Batch Function with Auto Mode together. If you change the option of Auto Mode when you set “Validate Continue”, you can see the below message. For example) AutoMode : Suspect Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 42 You count the notes from Fit or ATM mode. If the note is rejected by Suspect reason(Red color), you can see the message as below. When you remove all notes from Stacker and Reject pocket, change the mode as below. Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 43 ST-150NV(NF) USER Guide Count the notes which are rejected by Unfit or Suspect reason. After count the notes which are remove from reject pocket, the message appears as below. Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 44 When you remove the notes from pocket, mode is changed to Fit or ATM from Reject Count mode. Counting result is shown as below except the Suspected note. Grand total result is as below. When you print the counting result, receipt is as below. Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 45 In Mix Currency mode, the machine can count mixed currencies together. This mode is operated like one currency. You can select Mix currency by “CURR” key or “Local Select” function. Mix Currency mode is shown as below. Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 46 ST-150NV(NF) USER Guide 1) VALUE [MIX] You can count the notes of installed currencies together. You can check the counting value and counting number for each currency. Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 47 ST-150NV(NF) USER Guide Counting number Counting Value If you count the notes more than 6 currencies, you can check only counting number. Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 48 The first inserted currency is sent to Stacker Pocket. If first note is EUR, the machine is counted only EUR and change the flag to EUR from MIX. The notes of other currencies are rejected. Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 49 The first inserted currency and denomination is sent to Stacker Pocket. If first note is 10 EUR, the machine is counted only 10 EUR. The notes of other currencies and of denomination are rejected. 4) Counting Result Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 50 ST-150NV(NF) USER Guide When press “PRINT/SEND” key, you can check the counting result. ∧ ∨ Change the other currency result by pressing “ ” or “ ” key. Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 51 When you print the counting result, receipt is as below. 5) GT - When GT function is on, machine settles accounts before user clears the accounts. By long pressing “6” key, you can see the result of GT. Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 52 Change the other currency result by pressing “ ” or “ ” key. > < 6) ADD - The total counting result is accumulated.  Manual Add In Mix currency mode, Manual Add function is not operated.  Verify function Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 53 If you count the notes in verify function, counting result is not added in the previous counting result. 7) ETC - Select Direction and Version Mode by pressing “0” key. The other function is operated like the currency mode. Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 54: Fitness Level

    Export USB – Send the current Fitness and Counterfeit level to USB Stick. Import USB – Load Fitness and Counterfeit level from USB Stick. After select an item first, adjust Fitness level as below. 14 kinds of fitness parameter are available. Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 55 ST-150NV(NF) USER Guide ① Select Fitness parameter. (for example Tape X) Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 56 ST-150NV(NF) USER Guide ② Select Version by pressing “8” key. ③ Select Denomination by pressing 1~5 key. ④ Select ATM/FIT by pressing “9” key. Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 57 ST-150NV(NF) USER Guide ⑤ Enter level by pressing number keys and SET key or select Fitness ON/OFF by pressing “0” key. ⑥ Press START/STOP key twice. ⑦ Save the changed level by pressing “7” key. Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 58: Cf Level

    ST-150NV(NF) USER Guide 8. CF Level After press SET key and “3” key, you can enter Counterfeit Level mode. After select item first, adjust CF level as below. Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 59 ST-150NV(NF) USER Guide ① Select CF item. (for example UV) ② Select Version by pressing “8” key. Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 60 ST-150NV(NF) USER Guide ③ Select Denomination by pressing 1~5 key. ④ Select Lv. by pressing “9” key. ⑤ Enter level by pressing number keys and SET key or select Counterfeit ON/OFF by pressing “0” key. Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 61 ST-150NV(NF) USER Guide ⑥ Press START/STOP key twice. ⑦ Save the changed level by pressing “7” key. Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 62: Machine Model

    When long press START/STOP key and press “1” key, you can check machine information. 10. Machine Setting Pincode is needed. When long press START/STOP key and press “3” key, you can enter Machine Setting mode. Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 63: System Setting

    ST-150NV(NF) USER Guide You can set each sensor by pressing number keys. 11. System Setting When long press START/STOP key and press “4” key, you can enter System Setting mode. Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 64 ST-150NV(NF) USER Guide 1) Language Press “1” key -> Press Number key for selecting Language for display. Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 65 When press START/STOP key, exit the mode and Date and Time setting is completed. 3) Sound Press “3” key -> Press “ ”, “ ” key and “∧”, “∨” key for selecting and adjusting Sound and Volume. > < Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 66 Serial Printer : The counting result is printed on Printer.  Auto Print After finish the counting, the receipt is printed automatically.  Baud rate Select Baud rate between Machine and Printer.  Paper Size Select paper size. (2 inch and 3 inch) Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 67 When long press “9” key, you can enter or change Bank Name.  Branch Print Select to print Branch Name to Receipt. When long press “0” key, you can enter or change Branch Name. 5) Pincode Change Pincode of ST-150NV(NF). (Pincode is needed.) Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 68 ST-150NV(NF) USER Guide 6) Bookmark This function is that the setting is saved and you can load this setting by number key. ① Press “1” key. ② Set the functions as below. Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 69 ST-150NV(NF) USER Guide ③ When you press “Set” key, “Completed !” message is shown. ④ Go back to Bookmark menu automatically. ⑤ Go to Main UI. Press “1” key. ⑥ Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 70 ST-150NV(NF) USER Guide ⑦ The below massage is shown and the setting that you saved is loaded. Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 71 Ex) Batch : 10, Count 6pcs note -> remove notes in Stacker pocket -> Put 6pcs note on Hopper -> Count 4 pcs note and stop the counting -> Batch Full.  Batch Warning Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 72 By pressing Start/Stop icon or key, machine will start or stop counting.  GT Turn-ON (Fitness) When enter FIT or ATM mode, GT is turned on automatically.  Fit Lv Activation Set fitness level, High, Middle and Low.  AutoMode Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 73 ST-150NV(NF) USER Guide Go to page 34.  Display Denom Set the display type of face value, Text or Image, from the counting result. Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 74 Remove Hopper & Stacker – When remove the notes from Hopper and Stacker pocket, this counting result is sent to Grand Total. Print key – When you print the counting result, this counting result is sent to Grand Total. Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 75 Tape Detection Set the Tape detection for Value, Fitness, Fitness and Value. If you set the None, the machine doesn’t detect the Tape note. Also you can’t turn on TAPE detection function from CF page. Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 76 ST-150NV(NF) USER Guide  SP + Dispenser Set Dispenser in SP mode for amount or Number. If you set this function to Number, Dispeser mode is operated to the pcs of the notes. Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 77 Display – When you add the value by using “Manual add” function, this value is added in the counting result. After count a 10 EUR, add the counting result 10 pcs of 10 EUR. Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 78 Hide – When you add the value by using “Manual add” function, this result is not added in the counting result. After count a 10 EUR, add the counting result 10 pcs of 10 EUR. Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 79 ST-150NV(NF) USER Guide The counting result is shown as below.  Theme : Background type. Theme1 Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 80 ST-150NV(NF) USER Guide Theme2  Cleaning Cycle Set the pcs of note for Cleaning Cycle. Image and message is shonw as per the pcs of note that you counted. Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 81 Clear – The previous result is reset, when the warning message is caused.  Show Denom List Type1 - If you remove the notes in Stacker pocket, the counting result is shown on the screen. Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 82 Type2 – The Main UI is changed to the screen of counting result as below. The result will be changed during counting.  Print Fit-Detail ON – Detail information of FIT and UNFIT is printed. OFF - Detail information of FIT and UNFIT is not printed Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 83 ST-150NV(NF) USER Guide  Unfit View Show the amout and number of Unfit note in Fitness and ATM mode. Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 84: Network Setting

    ST-150NV(NF) USER Guide 12. Network Setting ∧ When long press “ ”key, you can set Network. You can enter the required information by number keys and ADD key. (ADD key - enter “DOT”) Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 85 ST-150NV(NF) USER Guide After enter each item, press SET key for accepting. After enter all data, try to press “6” key for saving the information. Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 86: Specification

    Over 500 Notes Detection Pocket Capacity Currency Maximum 10 currencies Reject Pocket 100 Notes (New/Old) Count Only 1200 notes/min Stacker 250 Notes High Speed Value counting Value 1200 notes/min Dimensions 300(W) x 321(D) x 310(H) mm Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 87: Error Code

    User Interface Colors TFT-LCD(4.3 inch), Audio Upgrade LAN, USB 14. Error Code HI Code Low Code Error Chain Error Skew Error Size Error Communication Error Double Error POCKET FULL BATCH FULL REJECT POCKET FULL Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 88 Size Check CF_MALFUNCTION 11~40 User Select Denom Value Error (Main) 51~60 User Select Dispenser default Err-Main 16 Skew Error Value Error Skew Error Size Error Chain Error Double Error default Err-DM22 6~11 Value Error Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 89: Maintenance

    Missing Serial Number uncertain Serial Number Different Serial Number Black List default Err-DM28 Wrong Side of Barcode Search Error Barcode Wrong Type Barcode Exceed Pattern Numbers of Barcode default Err-DM29 15. Maintenance 13-1. Sensor Structure Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 90 Users are recommended to clean the machine sensors at least once a day. Refer to following section and clean the machine regularly. Wipe with a cloth and/or can air. ※ Turn the power off before cleaning the machine. Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 91 Tape Sensor UV Sensor MG Sensor Down Sensor Module Counter Sensor Bottom CIS Sensor Tape Sensor Roller UV Sensor Lower Drive Body Reject Sensor Jam 2 sensor Jam 1 sensor Hopper sensor Stacker sensor Hitachi Terminal Solutions Korea Co., Ltd.
  • Page 92 ST-150NV(NF) USER Guide Hitachi Terminal Solutions Korea Co., Ltd.
