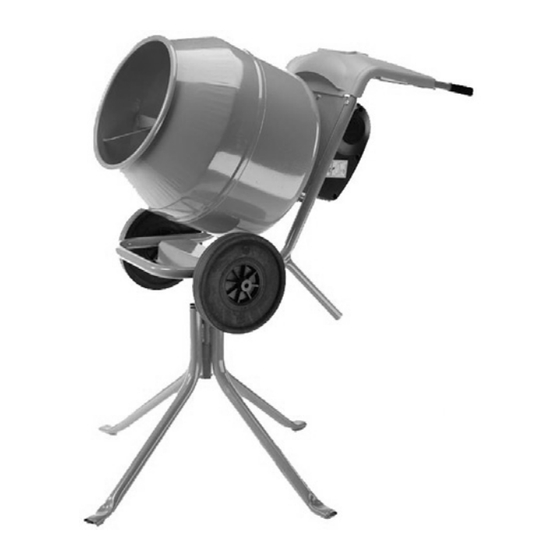

- Page 1 MINIMIX 150 CONCRETE MIXER OPERATORS MANUAL BÉTONNIÈRE MANUEL DE L'OPERATEUR HORMIGONERA MANUAL DEL OPERARIO BETONEIRA MANUAL DO OPERADOR BETONMOLEN BEDIENINGSHANDLEIDING 800/21330/7 Euro1 - 3/05...
-
Page 2: Serial Numbers
Serienummers ATTENTION! Make a note of the serial numbers of your machine and always quote them in any communication with a Belle Group Dealer. ATTENTION! Notez les numéros de série de la machine et indiquez-les dans toutes vos communications avec un revendeur du Groupe Belle. - Page 3 +44 (0)1298 84000 +44 (0)1298 84019 +44 (0)1298 84722 +44 (0)1298 84722 uksales@belle-group.co.uk exportsales@belle-group.co.uk Unit 5, Bode Business Park, Ball Haye Green, Leek, Staffordshire, ST13 6BW, GB +44 (0)1538 380000 +44 (0)1538 380038 parts@belle-group.co.uk warranty@belle-group.co.uk www.belle-group.co.uk MINIMIX 150 OPERATORS MANUAL...
-
Page 4: Table Of Contents
Service & Maintenance........................10 Technical Data..........................28-29 Notes ...............................11 Belle Group reserves the right to change machine specification without prior notice or obligation. Introduction Read this manual, carefully, observing all operating and safety instructions before, during and after using your machine, and maintain your machine in good working order. -
Page 5: Safety Instructions
The wire which is coloured Blue must be connected to the terminal which is is marked with the letter N or coloured Black. The wire which is coloured Brown must be connected to the terminal which is is marked with the letter L or coloured Red. MINIMIX 150 OPERATORS MANUAL... -
Page 6: Warning Decals
ONLY STACK 3 HIGH HAUT EMPILAGE LIMITÉ À 3 NIVEAUX ESTE LADO HACIA ARRIBA SOLO DEBE APILARSE A 3 NIVELES ESTE LADO PARA CIMA EMPILHAR APENAS A 3 NÍVEIS DEZE ZIJDE BOVEN NIET MEER DAN 3 HOOG STAPELEN MINIMIX 150 OPERATORS MANUAL... -
Page 7: Assembly Instructions
É FAVOR NOTAR: FORNEDCIDO SEM OLÉO NO MOTOR A GASOLINA USAR RECEPIENT FORNECIDO PARA ENCHIMENTO INICIAL DO MOTOR Botão de Paragem de Emergência (APENAS ELÉCTRICA) Noodstopknop (ALLEEN ELEKTRISCH) LET OP: BENZINEMOTOR IS BIJ AFLEVERING NIET GEVULD MET OLIE GEBRUIK BIJGELEVERDE FLES VOOR AFVULLEN MACHINE MINIMIX 150 OPERATORS MANUAL... -
Page 8: Stand Assembly
Certifique-se de que o Grampo de fixação vertical está correctamente posicionado na armação. OPMERKING: Als u de mixer na gebruik uit elkaar wilt halen, moet u de voorgaande procedures in omgekeerde volgorde uitvoeren. Controleer of de positioneringsklem goed op het frame zit. MINIMIX 150 OPERATORS MANUAL... -
Page 9: Loading & Unloading
1 1/4 2 1/2 2 3/4 ROUGH MASS 1:4:8 1/4 BAG 1 1/4 2 1/2 2 3/4 CONCRETE WATERTIGHT 1:1 1/2:3 2/3 BAG 1 1/4 FLOORS, TANKS PITS, ETC. 5 No 2 shovels = approx. 1 cu.ft MINIMIX 150 OPERATORS MANUAL... -
Page 10: Service & Maintenance
Before inspecting the gearbox oil level, make sure the gearbox is cold before removing the filler plug. Top up with EP90 or similar gear oil in the mix position to the level of the filler plug. Oil Fill Plug Mixing Position MINIMIX 150 OPERATORS MANUAL... -
Page 11: Technical Data
E - Largura (no suporte) E - Breedte (op standaard) 1056.5 mm F - Length (on stand) F - Longueur (sur support) F - Longitud (con caballete) F - Compriment (no suporte) F - Lengte (op standaard) 1227mm MINIMIX 150 OPERATORS MANUAL... - Page 12 MINIMIX 150 OPERATORS MANUAL...
- Page 13 Belle Group Head Office Sheen, Nr.Buxton, Derbyshire, SK17 0EU, GB. +44 (0)1298 84606 +44 (0)1298 84722 sales@belle-group.co.uk http://www.bellegroup.com...
