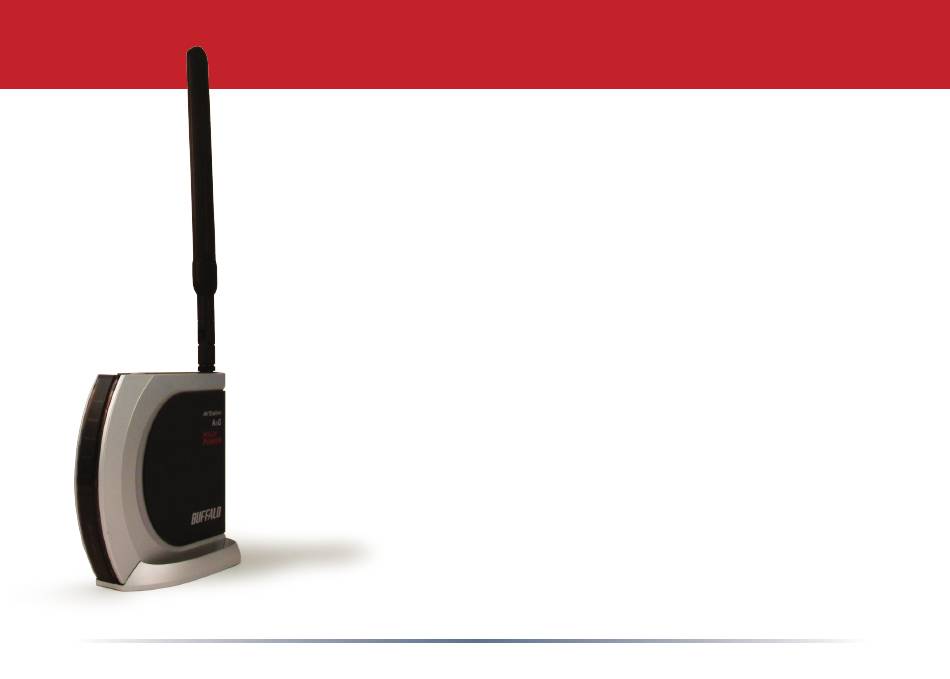

Quick Setup Guide - AirStation WHR-HP-AG108
High Power Dual A+G Smart Wireless Router
www.buffalotech.com
Package Contents
•
WHR-HP-AG108 AirStation
•
Antenna
•
Base
•
AC Adapter and Power Cable
•
CAT5 LAN cable
•
Utility CD with Manual
•
Quick Setup Guide
•
Warranty Statement
v. 1.0
Advertisement
Related Manuals for Buffalo Tech AirStation WHR-HP-AG108
Summary of Contents for Buffalo Tech AirStation WHR-HP-AG108
- Page 1 Quick Setup Guide - AirStation WHR-HP-AG108 High Power Dual A+G Smart Wireless Router Package Contents • WHR-HP-AG108 AirStation • Antenna • Base • AC Adapter and Power Cable • CAT5 LAN cable • Utility CD with Manual • Quick Setup Guide •...
- Page 2 Introduction Congratulations on your purchase! The AirStation High Power Dual A + G Wireless Smart Router provides two separate wireless networks at the same time, one on the 2.4ghz 802.11g frequency and another on the 5ghz (5.2-5.3ghz) 802.11a frequency. When your PC or other wireless client device surveys for wireless networks, there will be two to choose from.
-
Page 3: Step 1: Connect Your Equipment
Step 1: Connect Your Equipment . Screw the antenna into the top of your AirStation. It will usually work best if configured to point straight up. Attach the stand if desired. . Make sure that all equipment is powered off, including the AirStation, PCs, and your cable or DSL modem. -
Page 4: Step 2: Configure Your Router
Step 2: Configure Your Router Next, you need to configure your router. This is done from a web browser on a computer connected to the router. Using a computer that is connected directly to the AirStation with a cat5 Ethernet cable is recommended. . - Page 5 AOSS Step 3: Configure Wireless Settings (with AOSS) Does your wireless client support AOSS? If so, then configuring your wireless network securely is very simple. To use AOSS, your router and client device should already be installed and powered on. Push the AOSS button on the top of your router and hold it in for a few seconds.
- Page 6 Step 3: Configure Wireless Settings Manually (without AOSS) If your wireless client doesn’t support AOSS, you’ll have to configure your network manually. From a web bowser or a PC on the network, log in to the AirStation Configuration Utility. Open a web browser, type http://192.168.11.1 into the address field and press Enter.
- Page 7 Congratulations! Your AirStation is installed. For advanced settings and more detailed information, consult the User Manual, located on your AirNavigator CD-ROM. Technical Support: North American Technical Support by phone is available 24 hours a day, 7 days a week. (USA and Canada).
