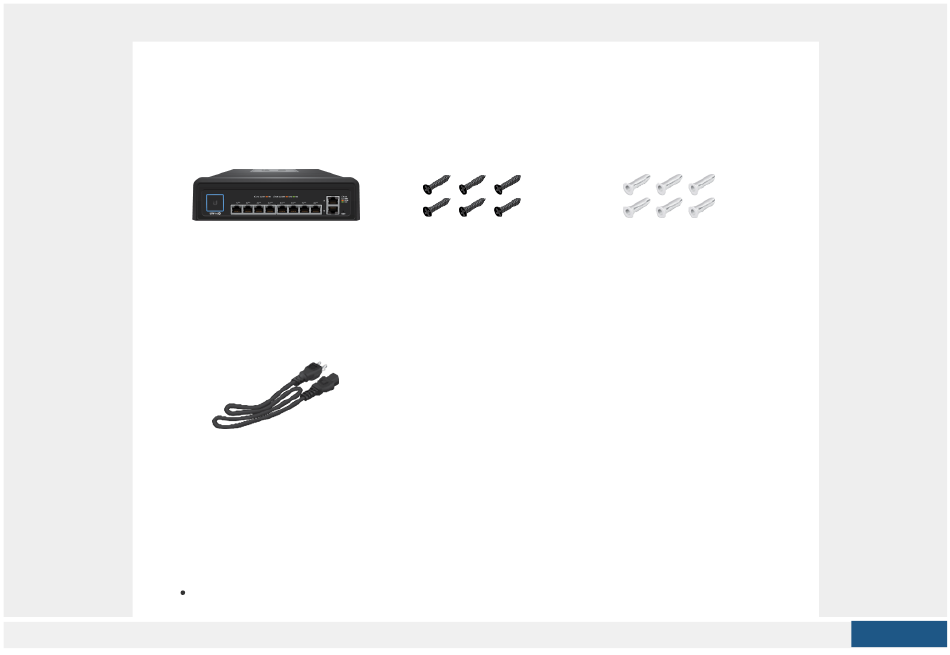

- Page 1 Package Contents UniFi Switch Screws (Qty. 6) Screw Anchors (Qty. 6) Power Cord Installation Requirements Drill with 6 mm drill bit Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
-
Page 2: System Requirements
System Requirements Linux, Mac OS X, or Microsoft Windows 7/8/10 Java Runtime Environment 1.8 or above recommended Web Browser: Google Chrome (Other browsers may have limited functionality) UniFi Controller software v5.10.x (or newer), available at: ui.com/download/unifi Hardware Overview System LED Flashing White Initializing. - Page 3 This is used to locate a device. When you click Locate in the UniFi Controller Flashing Blue software, the System LED will flash blue. The software will also display the location of the UniFi Switch on the map. PoE LED PoE Disabled Amber 802.3af/at/bt PoE...
-
Page 4: Hardware Installation
Ports 9 - 10 RJ45 ports support 10/100/1000 Ethernet connections. Reset Button This button serves two functions for the UniFi Switch: Restart Press and release the Reset button quickly. Restore to Factory Default Settings Press and hold the Reset button for more than five seconds. -
Page 5: Wall Mounting
Wall Mounting Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD... - Page 6 Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
- Page 7 Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
- Page 8 Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
-
Page 9: Connecting Power
Connecting Power Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD... -
Page 10: Connecting Ethernet
Connecting Ethernet Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD... - Page 11 Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
-
Page 12: Software Installation
"Adopting the UniFi Switch". After you have installed the software and run the UniFi Installation Wizard, a login screen will appear for the UniFi Controller management interface. Enter the admin name and password that you created and click Sign In. - Page 13 To adopt the UniFi Switch, proceed to "Adopting the UniFi Switch". For information on configuring and using the UniFi Controller software, refer to the User Guide on the website: ui.com/download/unifi Adopting the UniFi Switch 1. From the UniFi Controller dashboard, click Devices in the left menu bar.
- Page 14 2. On the Devices screen, locate the UniFi Switch in the list of devices under the Model column. To adopt the UniFi Switch, click Adopt. Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
-
Page 15: Specifications
3. The System LED on the UniFi Switch will turn blue to confirm that it has been successfully adopted. Specifications USW-Industrial Dimensions 254 x 235 x 60 mm (10 x 9.25 x 2.36") Weight 3.85 kg (8.49 lb) Interfaces Networking (8) 10/100/1000 802.3bt PoE RJ45 Ports... -
Page 16: Safety Notices
USW-Industrial Power Method 100 - 240 VAC, 50/60 Hz Universal Input Power Supply AC/DC, Internal, 450W DC Supported Voltage Range AC Input: 100 to 240VAC, Max. 6A Max. Power Consumption (Excluding PoE Output) LEDs System Status RJ45 Ports PoE, Speed/Link/Activity ESD/EMP Protection Air: ±... -
Page 17: Electrical Safety Information
moisture. WARNING: Do not use this product in location that can be submerged by water. WARNING: Avoid using this product during an electrical storm. There may be a remote risk of electric shock from lightning. Electrical Safety Information 1. Compliance is required with respect to voltage, frequency, and current requirements indicated on the manufacturer’s label. -
Page 18: Limited Warranty
Limited Warranty ui.com/support/warranty The limited warranty requires the use of arbitration to resolve disputes on an individual basis, and, where applicable, specify arbitration instead of jury trials or class actions. Compliance Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. -
Page 19: Weee Compliance Statement
environment this equipment may cause radio interference. CE Marking CE marking on this product represents the product is in compliance with all directives that are applicable to it. WEEE Compliance Statement Declaration of Conformity Online Resources Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD... - Page 20 © 2020 Ubiquiti Inc. All rights reserved. Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
