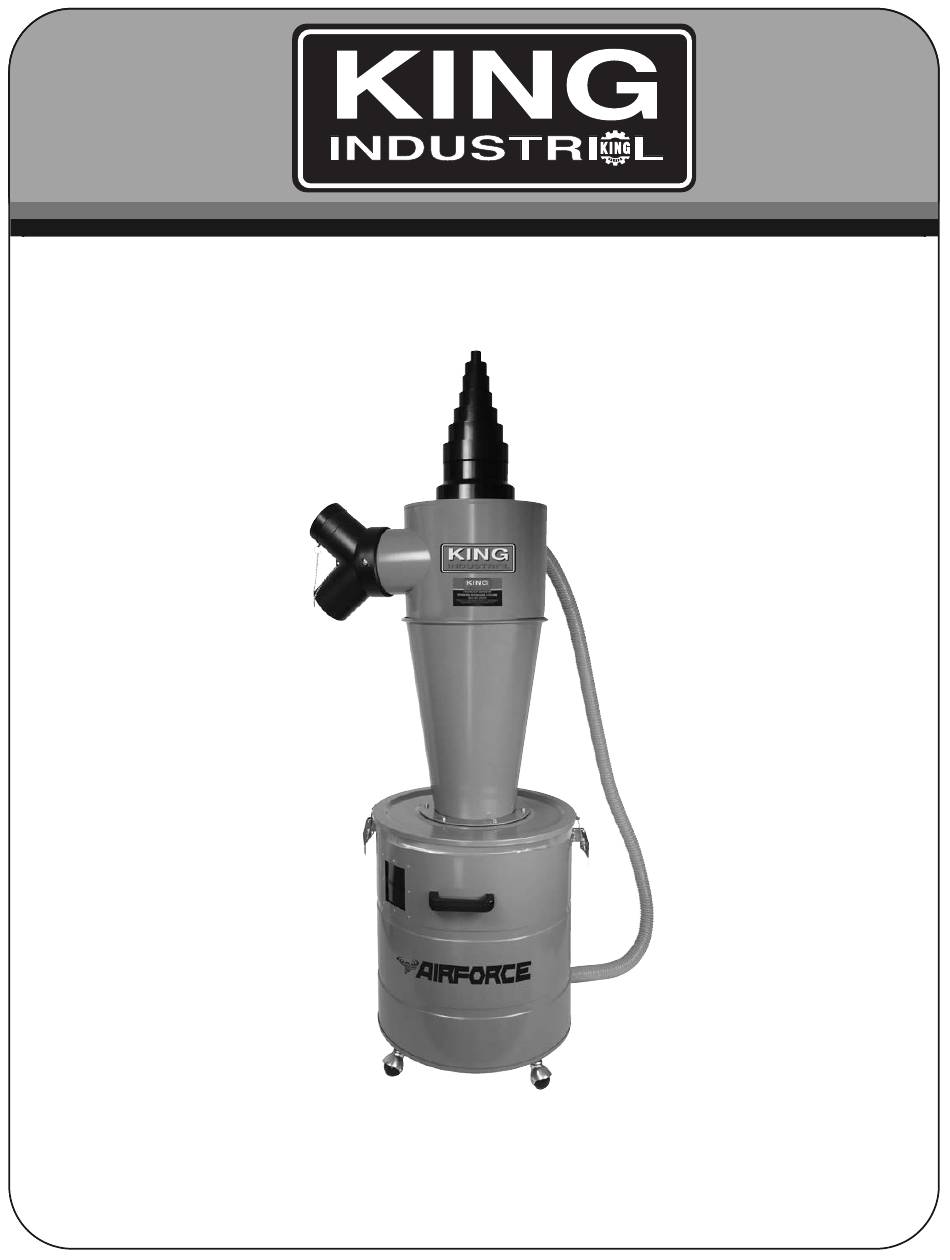

- Page 1 CYCLONE SEPARATOR MODEL: KC-2940S INSTRUCTION MANUAL COPYRIGHT © 2020 ALL RIGHTS RESERVED BY KING CANADA TOOLS INC.
- Page 2 WARRANTY INFORMATION 2-YEAR KING CANADA TOOLS LIMITED WARRANTY OFFERS A 2-YEAR LIMITED WARRANTY FOR THIS CYCLONE SEPARATOR FOR COMMERCIAL USE. PROOF OF PURCHASE Please keep your dated proof of purchase for warranty and servicing purposes. REPLACEMENT PARTS Replacement parts for this product are available at our authorized King Canada service centers across Canada. Please use the 10 digit part numbers listed in this manual for all part orders where applicable.
- Page 3 GENERAL SAFETY INSTRUCTIONS FOR POWER TOOLS 1. KNOW YOUR TOOL 12. ALWAYS WEAR SAFETY GLASSES. Read and understand the owners manual and labels affixed to Always wear safety glasses (ANSI Z87.1). Everyday the tool. Learn its application and limitations as well as its eyeglasses only have impact resistant lenses, they are NOT specific potential hazards.
- Page 4 12. Cyclone housing 13. Negative pressure hose 14. Steel drum/cover latch (2) SPECIFICATIONS Model ......................................KC-2940S Steel drum capacity ..................................29 gallon Inlet opening/adaptor ................................6” / 2 x 4” Outlet opening/adaptors ............................7” / 7” to 6” & 1” to 6” Assembled dimensions..............................22” x 21” x 66-1/2”...
- Page 5 ASSEMBLY Assembling Steel Drum 1. Locate the steel drum (A) Fig.1 and install the 4 caster wheels (B) under the steel drum by simply screwing them into the base. Use a wrench to tighten each caster against the base. 2. Install the steel drum handle (C) Fig.1 on the steel drum using 2 pan head screws, washers and acorn nuts.
- Page 6 ASSEMBLY Installing 2 x 4” Inlet Adaptor to Inlet 1. Install the 2 x 4” inlet adaptor (A) Fig.4 over the inlet opening as shown, secure adaptor using a pan head screw (B). FIGURE 4 Installing 7” to 6” Outlet Adaptor to Outlet 1.
- Page 7 OPERATION & MAINTENANCE OPERATION The Cyclone Separator is designed as a pre-separator to collect larger wood chips in the separator steel drum and smaller dust particles in your dust collector. This Cyclone Separator converts your 1 Stage dust collector into a 2 Stage dust collection system.
