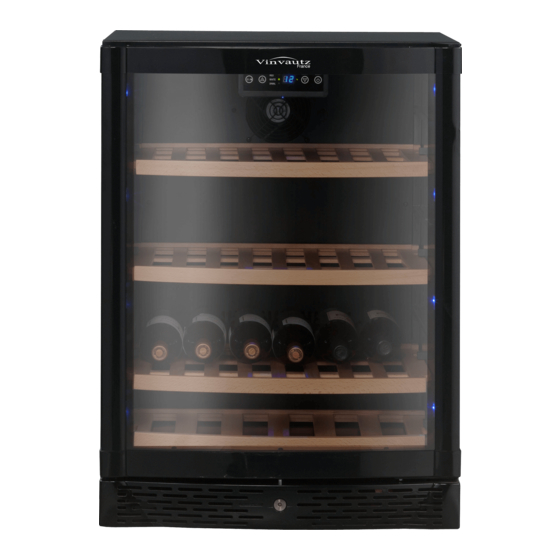

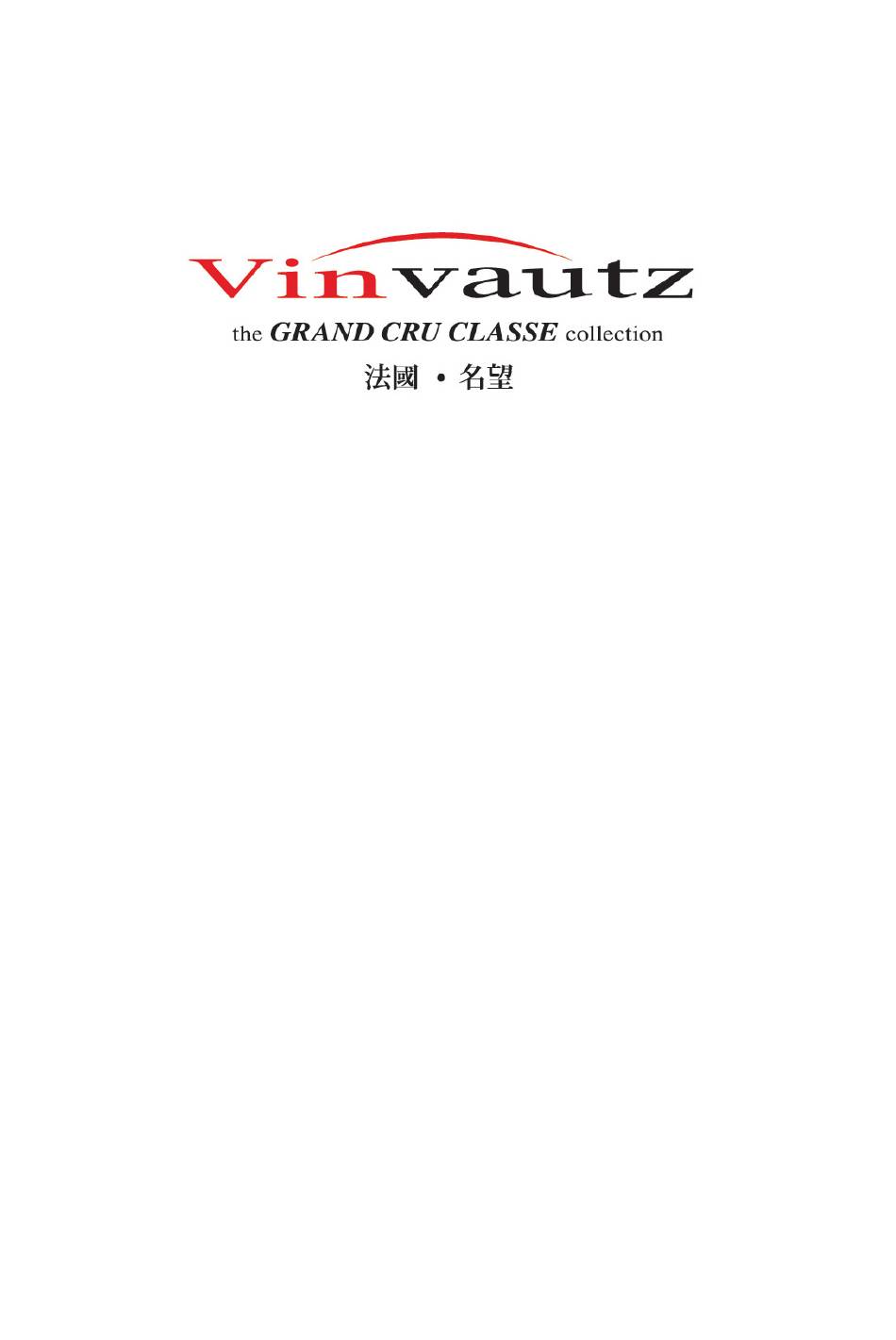

- Page 1 User Manual VZ46BHK VZ110BDHK/ VZ120BHK VZ150BDHK/ VZ166BHK Thank you for choosing Vinvautz Wine Cellar. Before use, please read and follow all safety and operating instructions.
-
Page 2: Safety Instructions
SAFETY INSTRUCTIONS 220V / 50 Hz power supply by putting the plug in a properly wired wall socket. • Use an individual outlet for the Wine Cellar. Plug several appliances into one • outlet will cause the outlet overheat and may result in fire. Highly inflammable spray lacquer or paint must not be stored, placed or used •... -
Page 3: Installation Instructions
INSTALLATION INSTRUCTIONS BEFORE USING YOUR WINE CELLAR Remove the exterior and interior packing. Before connecting the Wine Cellar to the power source, let it stand upright for approximately 2 hours. This will reduce the possibility of malfunction in the cooling system from handling during transportation. Clean the interior surface with lukewarm water using a soft cloth. - Page 4 ATTENTION To prevent the door gasket damage, make sure to have the door all the way opened when pulling shelves out of the rail compartment. The Wine Cellar must be positioned with the plug accessible area. Release the power cord and move your cabinet to its final location. Do not move your Wine Cellar while loaded with wine.
-
Page 5: Name Of The Parts
NAME OF THE PARTS VZ46BHK 1. Digital Control Panel 2. Anti UV Tinted Glass Door 3. Large Wooden Shelves (Total 3pcs) 4. Bottom Wooden Shelves (Total 1 pc) 5. Ventilation Grille 6. Leveling Legs 7. Security Lock 8. Cabinet... - Page 6 VZ120BHK/ VZ166BHK 1. Digital Control Panel 2. Anti UV Tinted Glass Door 3. Large Wooden Shelves (5pcs for VZ120BHK, 7pcs for VZ166BHK) 4. Bottom Wooden Shelves (1 pc for both VZ120BHK and VZ166BHK ) 5. Ventilation Grille 6. Leveling Legs 7.
- Page 7 VZ110BDHK/ VZ150BDHK 1. Digital Control Panel 2. Anti UV Tinted Glass Door 3. Large Wooden Shelves ( 5pcs for VZ110BDHK, 7pcs for VZ150BDHK) 4. Middle Partition 5. Bottom Wooden Shelves ( 1pc for both VZ110BDHK and VZ150BDHK ) 6. Ventilation Grille 7.
-
Page 8: Operating Your Wine Cellar
OPERATING YOUR WINE CELLAR The Wine Cellar should be placed in where the ambient temperature is between 32 - F (0-35 ). If the ambient temperature is above or below this range, the performance of the Wine Cellar may be affected. Placing the Wine Cellar in extreme cold or hot conditions may cause interior temperatures to fluctuate. - Page 9 touching the above two marks need to be set at between 15º-18ºC/58º-65ºF and the LED lamp under “RED” will be lit red. When you store mostly white wines, the temperature needs to be set at between 9º-14ºC/48º-57ºF and the LED lamp under “WHITE” will be lit green. When you store mostly sparkling wines, the temperature needs to be set at between 5º- 8ºC/40º-47ºF and the LED lamp under “SPARKLE”...
- Page 10 VZ110BDHK/ VZ150BDHK ON/OFF POWER To turn ON/ OFF the Wine Cellar, touch the mark and hold for 2 seconds. SETTING THE TEMPERATURE CONTROL Each cooling compartment of the Wine Cellar (upper & lower) is independently controlled. To set the temperature, connect the power cord to a properly grounded outlet. In the event of a power interruption, all previous temperature settings are automatically erased and each compartment will default to a preset temperature setting of 6...
- Page 11 F mode illuminates. (Due to different market, some units may only display Fahrenheit or Celsius) NOTE: If the Wine Cellar is unplugged, power lost, or turned off, you must wait 3 to 5 minutes before restarting the unit. If you attempt to restart before this time delay, the Wine Cellar will not start.
-
Page 12: Care And Maintenance
CARE AND MAINTENANCE Cleaning Your Wine Cellar Turn off the power, unplug the Wine Cellar, and remove all items including shelves and rack. Wash the inside surfaces with a warm water and baking soda solution. The solution should be about 2 tablespoons of baking soda to a quart of water. Wash the shelves with a mild detergent solution. -
Page 13: Troubleshooting Guide
Energy Saving Tips The Wine Cellar should be located in the coolest area of the room, away from heat producing appliances, and out of the direct sunlight. TROUBLESHOOTING GUIDE You can solve many common Wine Cellar problems easily, saving you the cost of a possible service call. - Page 14 PRODUCT SPECIFICATION CHART VZ46BHK VZ110BDHK VZ120BHK VZ150BDHK VZ166BHK Upper 55 Upper 75 Bottle Capacity Lower 55 Lower 75 Net Capacity 145L 312L 321L 416L 412L Ambient Temperature 5-35 Upper 5-18 Upper 5-18 Temperature Range 5-18 5-18 5-18 Lower 5-18 Lower 5-18 Power Input 140W 160W...
