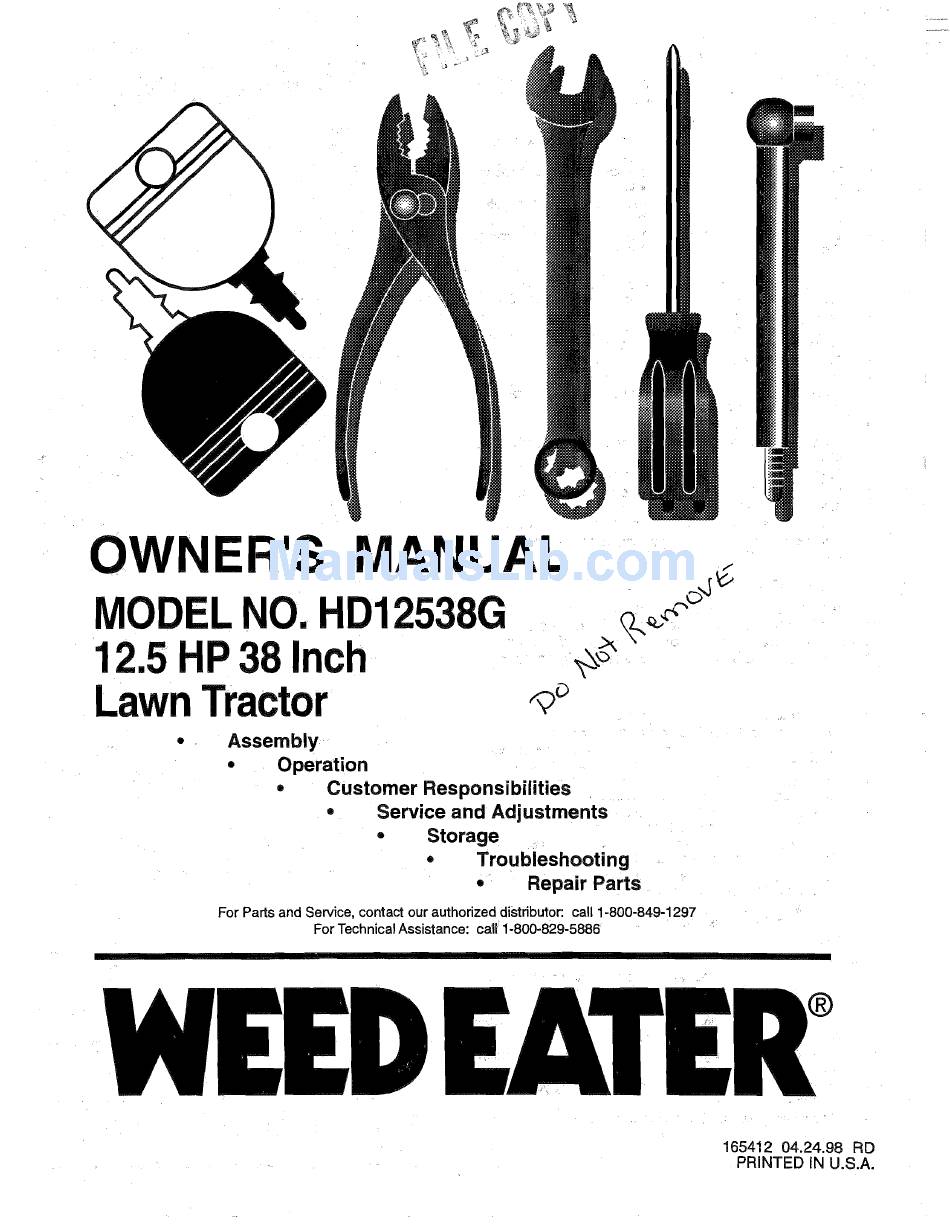

OWNER'S MANUAL
MODEL NO. HD125386
Lawn Tractor
Assembly
Operation
9
Customer Responsibilities
9
Service and Adjustments
@
Storage
Troubleshooting
Repair Parts
For Parts and Service, contact our authorized distributor: call
1-800-849-1
297
For Technical Assistance: call
1-800-829-5886
165412 04.24.98 RD
PRINTED IN U.S.A.
