- Page 1 MReX-5B Transmitter User Manual v2.07 Firmware MReX-5B MESSAGING TRANSMITTER User Manual Page 1 of 35 © WTE Limited, 2020 – Christchurch New Zealand...
-
Page 2: Table Of Contents
*TX_PWR..........13 Firmware Upgrade Utility......27 Base Commands........14 Firmware Upgrade Process.......28 *REBOOT..........14 Disclaimer............29 *CONFIG..........14 Manufacturing marking and labels....30 *SAVE..........14 Maintenance..........30 *LIST...........14 Product End Of Life........31 *DEFAULTS........14 Product Warranty...........32 *VER............15 Specification..........33 Page 2 of 35 © WTE Limited, 2020 – Christchurch New Zealand... -
Page 3: Introduction

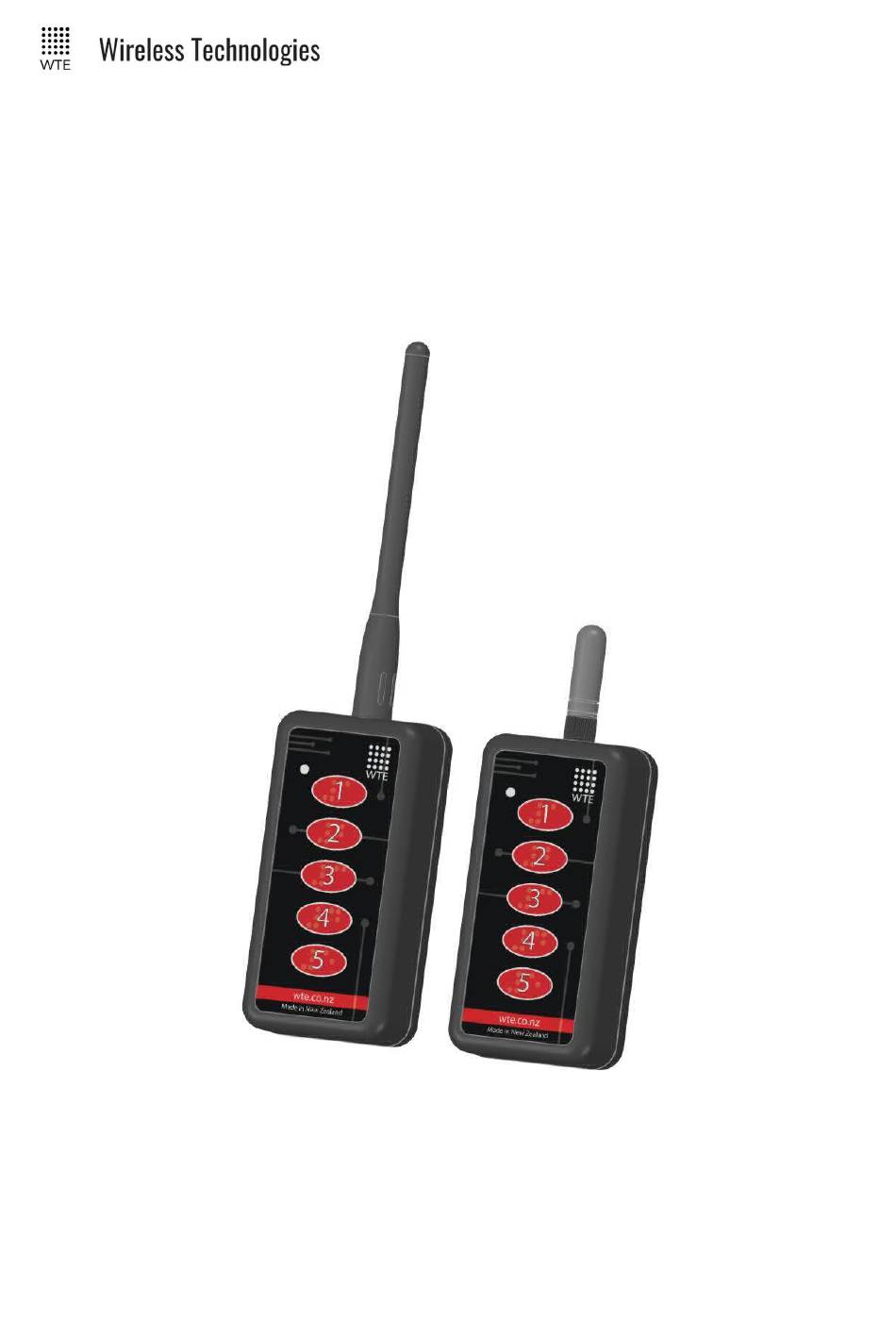

MReX-5B Transmitter User Manual v2.07 Firmware Introduction Thank you for choosing the MReX-5B. The MReX-5B is a portable, 5 button messaging and control transceiver. The MReX-5B incorpor- ates the MReX-460 telemetry module. MReX-5B Features • Sends 512, 1200 and 2400 baud POCSAG paging messages. -
Page 4: Safety Information
CAUTION indicates a hazardous situation which, if not avoided, could result in minor or moderate injury NOTICE NOTICE is used to address practices not related to physical injury. Page 4 of 35 © WTE Limited, 2020 – Christchurch New Zealand... - Page 5 The MReX was NOT designed to operate and/or be connected directly to live main voltages. The MReX must be connected to a certified, suitably rated low voltage DC supply. Failure to follow these instructions can result in death or serious injury Page 5 of 35 © WTE Limited, 2020 – Christchurch New Zealand...
- Page 6 Store and handle the radio equipment in dry, clean safe environment • • Handle the equipment with care • Care when stacking MReX boxes must be taken to not damage part of the radio, such as connectors. Page 6 of 35 © WTE Limited, 2020 – Christchurch New Zealand...
- Page 7 For more information about where you can drop off your waste equip- ment for recycling, contact the dealer from whom you originally purchased the product. Page 7 of 35 © WTE Limited, 2020 – Christchurch New Zealand...
-
Page 8: Operation
MReX-5B Transmitter User Manual v2.07 Firmware Operation The MReX-5B will illuminate the red front panel LED while transmitting. Prior to transmitting an audible beep will be heard. Under normal operation, on start-up there is a sign-on message sent out the 3.3V TTL serial port. 10 seconds after power is applied. -
Page 9: Dmr Messaging
Please refer to the Specification section for a list of tested DMR radios. The MReX WT pro- tocol allows for switching between supported radio types to allow support for Hytera, Kirisun and other brands. Page 9 of 35 © WTE Limited, 2020 – Christchurch New Zealand... -
Page 10: Configuration
Start-up operation is always at 9600:8-N-1. The MReX-5B integrates the MReX-460 module, therefore has available the MReX-460 command set. However, only a subset of those commands are relevant to the MReX-5B. Relevant commands are listed below. All configuration commands always start with the asterisk ‘*’ character. - Page 11 Note: It is a good practice to restart the unit after changing configuration. This can be achieved by removing power to the unit or sending the *REBOOT<CR> command. Page 11 of 35 © WTE Limited, 2020 – Christchurch New Zealand...
-
Page 12: Transmit Commands
(at 512 baud) in order to check for an incoming mes- sage. If the receiver is always powered and receiving, then much shorter preambles can be used, and in some cases halve the channel activity. Typical usage: *TX_PREAMBLE=18<CR> Page 12 of 35 © WTE Limited, 2020 – Christchurch New Zealand... -
Page 13: Tx_Pwr
Examples : Setting MReX to transmit at 10mW (10dBm ±2dBm): *TX_PWR=20<CR> Setting MReX to transmit at 50mW (17dBm ±2dBm): *TX_PWR=55<CR> Setting MReX to transmit at 100mW (20dBm ±2dBm): *TX_PWR=80<CR> Page 13 of 35 © WTE Limited, 2020 – Christchurch New Zealand... -
Page 14: Base Commands
*LIST displays all available commands. This command also lists many specific field names that need to be used with listed commands. Usage: *LIST<CR> *DEFAULTS *DEFAULTS forces to reset temporary to factory default settings. Usage: *DEFAULTS<CR> Page 14 of 35 © WTE Limited, 2020 – Christchurch New Zealand... -
Page 15: Ver
MReX-5B Transmitter User Manual v2.07 Firmware *VER *VER sends the MReX sign on message back to the user. This is useful to determine the model and serial number of the unit. Usage: *VER<CR> Page 15 of 35 © WTE Limited, 2020 – Christchurch New Zealand... -
Page 16: Input Commands
Example. Configure input 1 to send two message after input is debounced by 300 milliseconds and repeat/retransmit this message 4 times. *IN_CONFIG_L=1:2,3,4<CR> *IN_MSG_L *IN_MSG_L specifies the low level message that will be transmitted if configured. E.g. *IN_MSG_L=1:WT1234560A10 IN_1_LOW<CR> Page 16 of 35 © WTE Limited, 2020 – Christchurch New Zealand... -
Page 17: Wt Protocol
MReX-5B Transmitter User Manual v2.07 Firmware WT Protocol The WT Protocol is the default protocol used by WTE products. It allows for a variety of over the air transport methods (such as POCSAG paging) to be used and a variety of baud rates. -
Page 18: Support For Multiple Messages
To send the message “TEST” to RIC codes 1234560 and 1222222 as a 512 baud POCSAG mes- sage. WT1234560A10WT1222222A10<SPACE>TEST<CR> 2 messages will be transmitted, batched in a single transmission. Page 18 of 35 © WTE Limited, 2020 – Christchurch New Zealand... - Page 19 RIC codes 0201234 and 0005647 as a 1200 baud POCSAG message. WT1234560A10WT1222222A10WT0201234A11WT0005647A11<SPACE>TEST<CR> 4 messages will be transmitted, batched in 2 transmissions, one for 512 baud messages and another transmission for the 1200 baud messages. Page 19 of 35 © WTE Limited, 2020 – Christchurch New Zealand...
-
Page 20: Dmr Message Format
WT0001001D60<SPACE>TEST MESSAGE<CR> Example: To send a DMR message to individual ID 104, colour code 6 with payload of “TEST MESSAGE” and to a type ‘0’ radio (Hytera) WT00001041d60<SPACE>TEST MESSAGE<CR> Page 20 of 35 © WTE Limited, 2020 – Christchurch New Zealand... -
Page 21: Input Handling
MReX board. The MReX-5B supports 5 programmable inputs. Each input can be programmed with a short mes- sage up to 50 characters in length. Input messages must always be formatted as WT Protocol. - Page 22 Configured messages to be transmitted once triggered. *IN_MSG_L=1:WT1234560A10 IN 1 LOW<CR> *IN_MSG_L=2:WT1234560A10 IN 2 LOW<CR> For more details on command usage please refer to the Configuration section if required. Page 22 of 35 © WTE Limited, 2020 – Christchurch New Zealand...
-
Page 23: Hardware And Configuration
Hardware and Configuration In order to replace batteries and/or change the transmitter configuration please remove the screws on the back to access the battery compartment and programming header. Page 23 of 35 © WTE Limited, 2020 – Christchurch New Zealand... -
Page 24: Battery Installation
MReX-5B Transmitter User Manual v2.07 Firmware Battery Installation Note: ESD precautions must be observed at all times when handling. Page 24 of 35 © WTE Limited, 2020 – Christchurch New Zealand... -
Page 25: Loading Configuration
3. Operate a terminal program using COM port settings 9600:N:8:1. A free serial terminal is available from https://www.wte.co.nz/tools.html. This terminal program (wte_serialter- minal) also allows loading and saving of WTE product configuration files. 4. Press and hold any button, and keep the button depressed. - Page 26 9. Load configuration file if required. Select the configuration file that has been saved previ- ously using the top right “Load Config” button. 10. After 60 seconds of serial port activity, the MReX-5B will exit its configuration mode and return to normal low power operation.
-
Page 27: Firmware Upgrading
3. An appropriate encrypted hex file supplied by WTE Limited. Note: Attempting to load a hex file not intended for use with the MReX will render the MReX inop- erable. Uploading firmware should only be performed if instructed to do so by WTE Limited or an authorised agent. -
Page 28: Firmware Upgrade Process
5. Select the correct COM port on the WTE Firmware Update Tool 6. Press “Open COM” button on the WTE Firmware Update Tool 7. Press a button on the MReX-5B that will result in a transmission, and then keep that button pressed. -
Page 29: Disclaimer
It is the users responsibility to ensure local regulations are adhered to. In no event shall WTE Limited be liable for any incidental, special, indirect or consequential dam- ages, harm to any person, lost profits or lost data, harm to your equipment, cost of procurement of substitute goods, technology or services, any claims by third parties (including but not limited to any defense thereof), any claims for indemnity or contribution, or other similar costs. -
Page 30: Manufacturing Marking And Labels
Maintenance No User-Serviceable Components. Servicing is only to be performed by WTE Limited, or agent ap- pointed by WTE Limited. Servicing outside of the warranty period is at the discretion of WTE Limited. Page 30 of 35... -
Page 31: Product End Of Life
For more information about where you can drop off your waste equipment for recycling contact your local dealer or city council Please recycle this device responsibly. Page 31 of 35 © WTE Limited, 2020 – Christchurch New Zealand... -
Page 32: Product Warranty
MReX-5B Transmitter User Manual v2.07 Firmware Product Warranty WTE Limited products are warranted for a period of 12 months after purchase date against faulty workmanship or materials. Return the product, all freight paid by the customer and the product will be repaired or replaced. -
Page 33: Specification
• Field upgradable. Physical Dimensions: (L x W x H) • 102mm x 51mm x 28mm Serial Output: • Serial 9600:8-N-1 baud, 3.3V TTL. • WTE protocol format. Page 33 of 35 © WTE Limited, 2020 – Christchurch New Zealand... - Page 34 Laboratory Test Results • Base and mobile station compliant. Testing completed March 2020. This product incorpor- ates the WTE MReX-460 Telemetry Transceiver Module, upon which compliance is based. Page 34 of 35 © WTE Limited, 2020 – Christchurch New Zealand...
- Page 35 MReX-5B Transmitter User Manual v2.07 Firmware Page 35 of 35 © WTE Limited, 2020 – Christchurch New Zealand...
