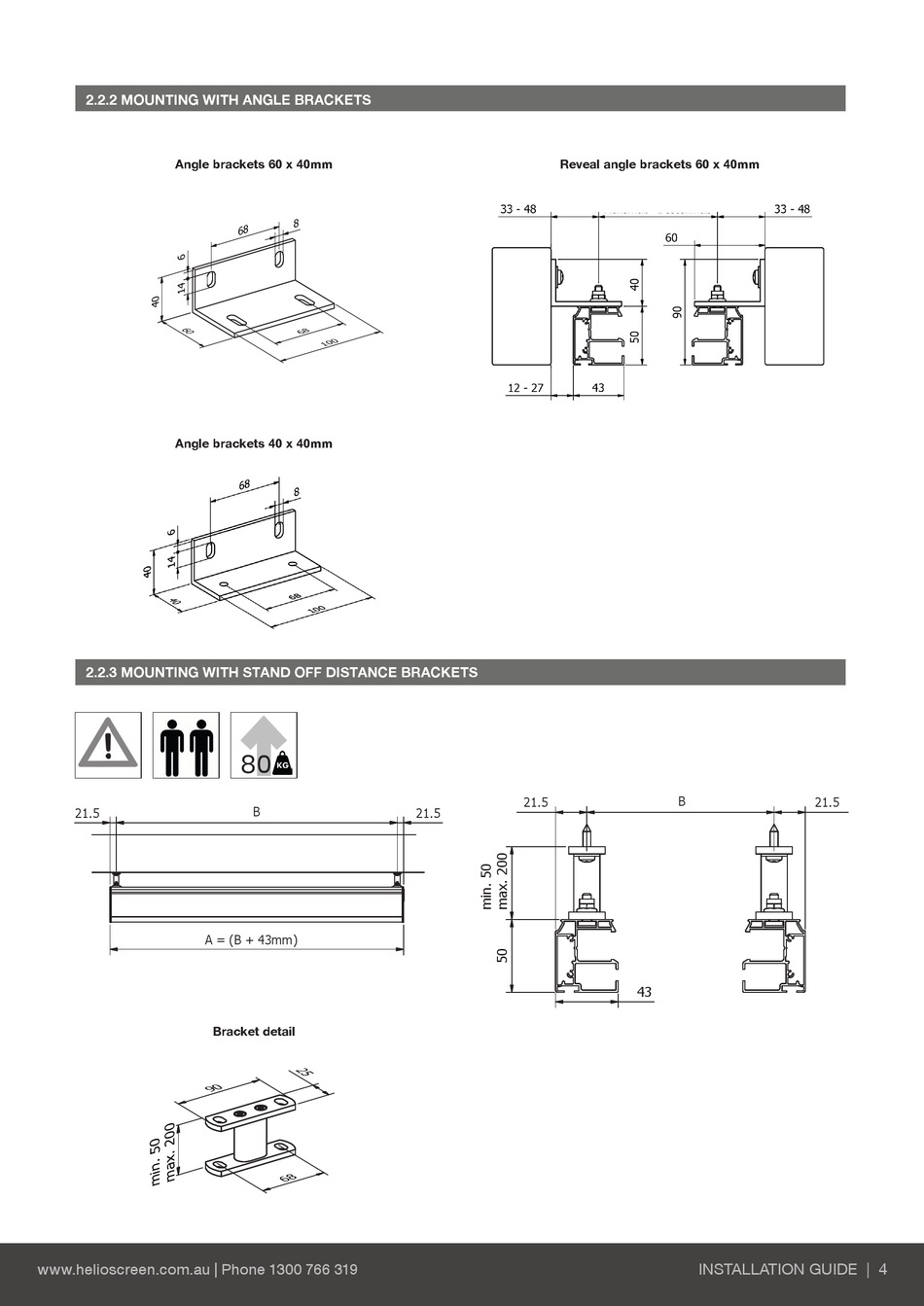

2.2.2 MOUNTING WITH ANGLE BRACKETS
Angle brackets 60 x 40mm
Angle brackets 40 x 40mm
2.2.3 MOUNTING WITH STAND OFF DISTANCE BRACKETS
21.5
www.helioscreen.com.au | Phone 1300 766 319
80
B
A = (B + 43mm)
Bracket detail
Reveal angle brackets 60 x 40mm
21.5
21.5
B
INSTALLATION GUIDE | 4
21.5
