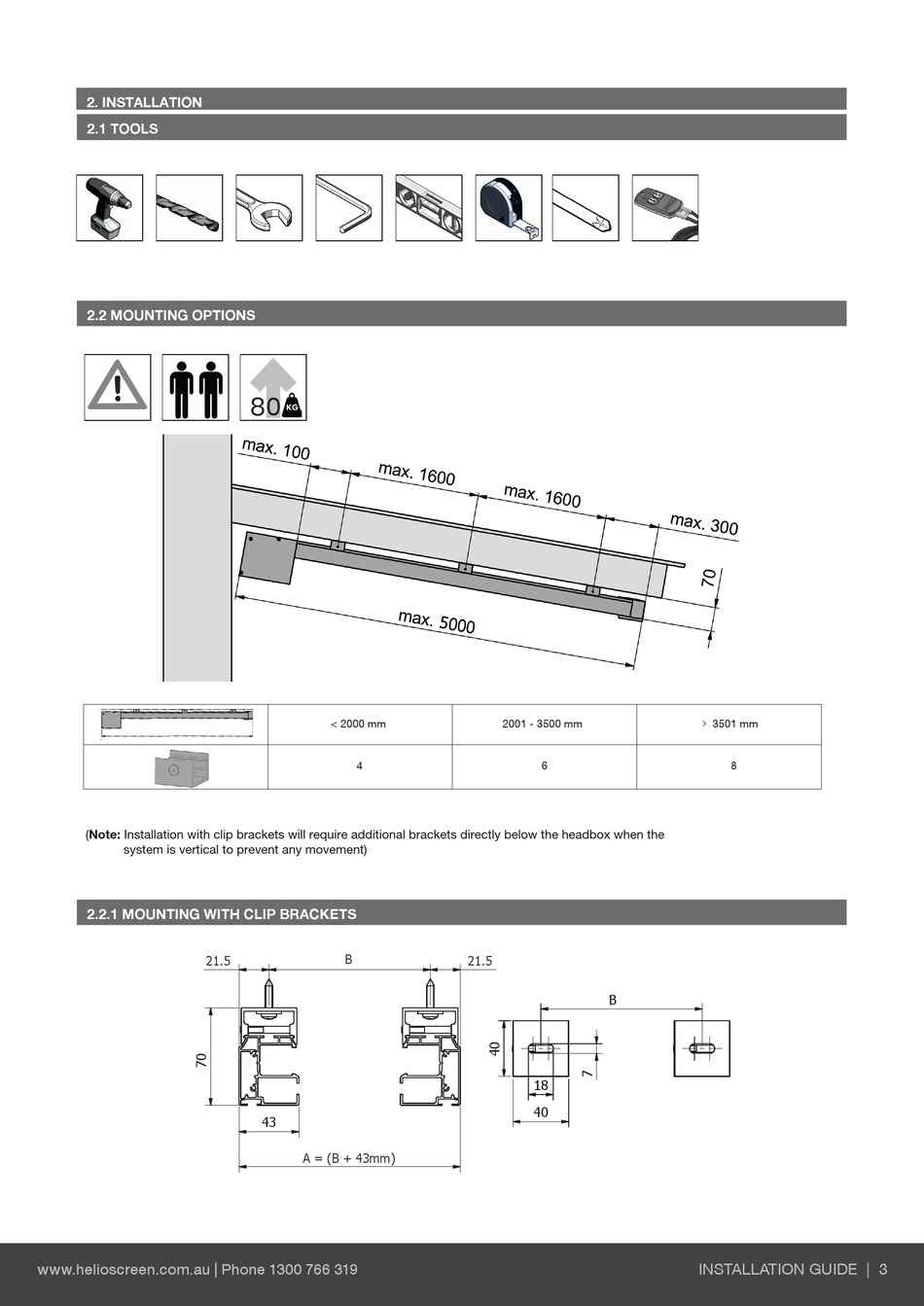

2. INSTALLATION
2.1 TOOLS
2.2 MOUNTING OPTIONS
(Note: Installation with clip brackets will require additional brackets directly below the headbox when the
system is vertical to prevent any movement)
2.2.1 MOUNTING WITH CLIP BRACKETS
21.5
www.helioscreen.com.au | Phone 1300 766 319
80
< 2000 mm
4
B
A = (B + 43mm)
2001 - 3500 mm
6
21.5
B
> 3501 mm
8
INSTALLATION GUIDE | 3
