Summary of Contents for BioSmart UniPass

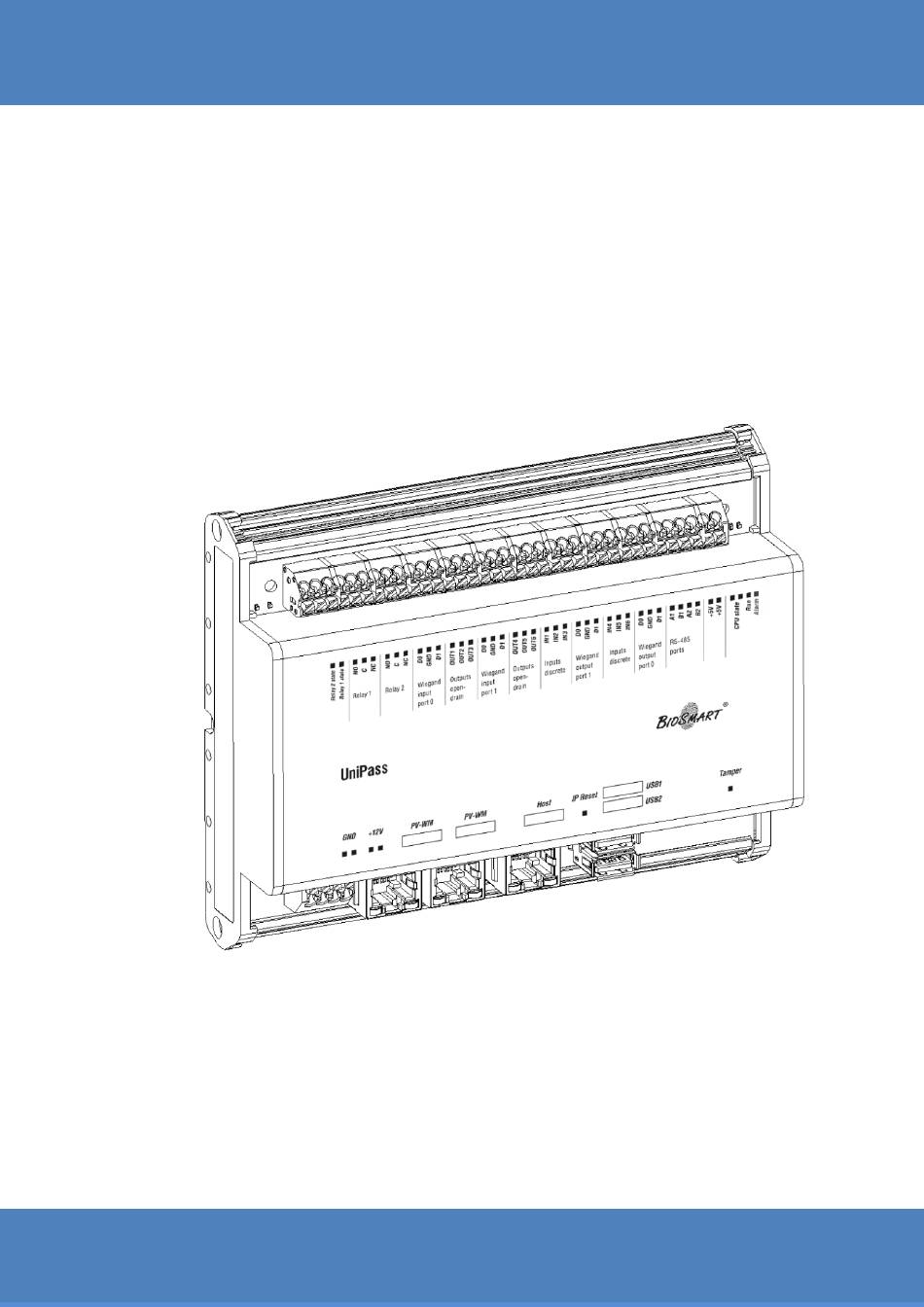

- Page 1 BioSmart UniPass Installation Guide...
-
Page 2: Table Of Contents
Mounting on DIN-rail .......................... 7 Power supply connection ........................7 Network connection ........................... 8 PV-WM Readers connection ......................8 Fail-safe lock connection ........................9 Fail-secure lock connection ......................10 Exit buttons and door sensors connection ................... 11 Wiegand connection........................11 UniPass Installation Guide v1.2|10.2018|en... -
Page 3: Safety Instructions
Additional requirements: Note Use a clean, dry cloth to remove any dirt or dust from the unit. *IEC 60204-1: Safety of machinery – Electrical equipment of machines. (Part 1: General requirements) UniPass Installation Guide v1.2|10.2018|en... -
Page 4: Overview
1. Overview The BioSmart UniPass Controller is designed for use as part of the BioSmart biometric access monitoring and control system. The controller provides a means to track working hours and attendance by identifying users through the unique biometric characteristics of subcutaneous palm veins and RFID proximity cards. -
Page 5: Circuit Board
Indicates if discrete input 4 is activated IN_5 Indicates if discrete input 5 is activated IN_6 Indicates if discrete input 6 is activated Jumper Reset to default settings IP RST Jumper IP settings reset TMPR Jumper Reserved UniPass Installation Guide v1.2|10.2018|en... -
Page 6: Connector Names And Description
+12V +12VDC Power supply Power supply Eth1 Ethernet (PSE) PV-WM readers connection Eth2 Ethernet (PSE) PV-WM readers connection Eth3 Ethernet Network connection USB (F) USB port PV-WM readers connection USB (F) USB port PV-WM readers connection UniPass Installation Guide v1.2|10.2018|en... -
Page 7: Installation
2. Drill holes, according to a mounting template and insert dowels inside the holes. 3. Place controller on wall and fix it with self-tapping screws. 4. Connect power supply, PV-WM readers, locks, and buttons, if needed, according to 2.5-2.11 5. Attach the covering. UniPass Installation Guide v1.2|10.2018|en... -
Page 8: Mounting On Din-Rail
Use a DC 12 V power supply adaptor with a minimum of 1000 mA, (3000 mA if PV-WM readers are to be connected via Ethernet) which has obtained the approval of IEC/EN 60950-1; See recommended cable type and maximum length of the cable in Cable types table. UniPass Installation Guide v1.2|10.2018|en... -
Page 9: Network Connection
Network connection See recommended cable type in Cable types table; The order of connections in the cable’s modular connector must correspond to the TIA/EIA-568- B standard. PV-WM Readers connection UniPass Installation Guide v1.2|10.2018|en... -
Page 10: Fail-Safe Lock Connection
See recommended cable type in Cable types table; Don not connect readers to 12V power supply if UniPass on-board PoE ports are used; Fail-safe lock connection See recommended cable type in Cable types table; Install a diode as it shown on figure, to protect controller relay from reverse current. Use 1N4007 diode (1000V,1A) or similar;... -
Page 11: Fail-Secure Lock Connection
See recommended cable type in Cable types table; Install a diode as it shown on figure, to protect controller relay from reverse current. Use 1N4007 diode (1000V,1A) or similar; Use separate power supplies for lock and controller; UniPass Installation Guide v1.2|10.2018|en... -
Page 12: Exit Buttons And Door Sensors Connection
Exit buttons and door sensors connection See recommended cable type in Cable types table; Wiegand connection See recommended cable type in Cable types table; UniPass Installation Guide v1.2|10.2018|en... - Page 13 Support support@biosmart-tech.com +420 246 097 126 Skype: BioSmart TechSupport +420 246 097 126 Konevova 2660/141, 130 00 Prague, Czech Republic www.biosmart-tech.com sale@biosmart-tech.com...
