- Page 1 SOLARIS Biological Microscope Operating Manua...
- Page 2 SOLARIS Biological Microscope operation manual. Thank you for buying our product! This unit is a precision optical instrument. Our product has been design to provide the highest level of safety, however, improper operation or negligence in following the instructions in this manual may cause personal injuries and property losses.
- Page 3 SOLARIS Biological Microscope operation manual. Safety Reminder 1. Be sure to turn off the power switch and remove the power cord before installing this unit, Warning! replacing the bulb or fuse, plugging and unplugging the power supply. To prevent electric shock or fire, be sure to turn off the power switch and remove the power cord before installing this unit, replacing the bulb or fuse, plugging and unplugging the power supply.
- Page 4 SOLARIS Biological Microscope operation manual. 8. Storage place Caution This unit is a precision optical instrument, and improper operation or storage may cause damage or its precision may be adversely affected. Consider the following when selecting a storage place: Avoid placing the unit under direct sunlight, directly under interior lighting or any other bright place.
-
Page 5: Table Of Contents
SOLARIS Biological Microscope operation manual. Table of Contents I. Characteristics and applications of this unit.........................1 II.Structural features of this unit............................1 III. Installation of this unit..............................2 IV.Technical specifications..............................3 V. Operation..................................4 VII. Maintenance ................................10 VIII. Troubleshooting ....................Errore. Il segnalibro non è definito. -
Page 6: Characteristics And Applications Of This Unit
SOLARIS Biological Microscope operation manual. I. Characteristics and applications of this unit SOLARIS biological microscope is equipped with eminent UIS optical system, provides excellent optical performance and the update of the system. Because of the streamline figure and pastel color, it has more beautiful appearance. -
Page 7: Installation Of This Unit

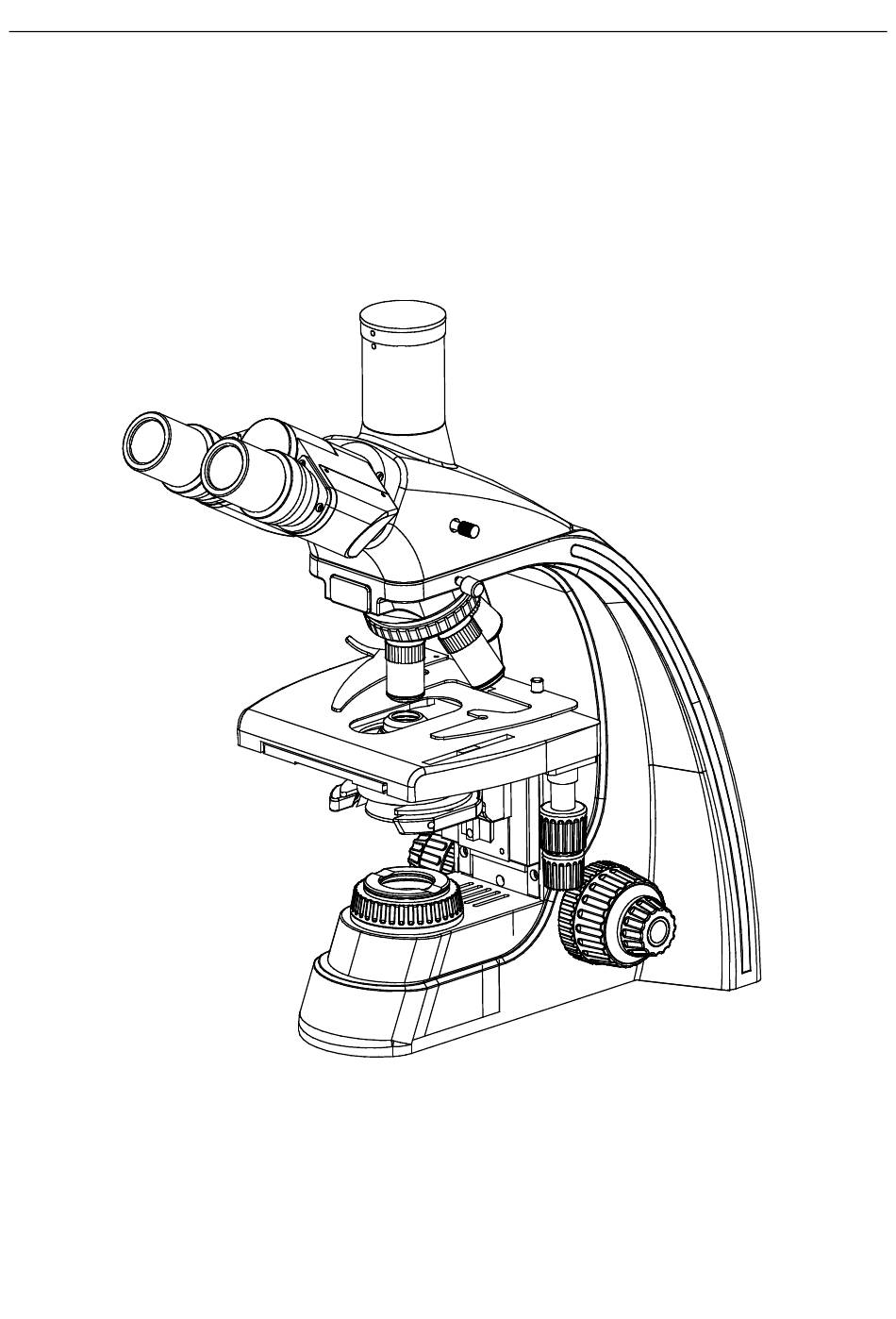

SOLARIS Biological Microscope operation manual. III. Installation of this unit 1. Installation diagram Before installing, be sure every components is clean, no score any parts or glass Caution！ ！ ！ ！ surface. Fig.2 2. Installation steps Remove all parts from their packages and retain them in the event you need to transport the product. Take out the main body 1，demount interfix packing and dustproof covers. -
Page 8: Iv.technical Specifications
SOLARIS Biological Microscope operation manual. IV.Technical specifications Table 1 All Magnification 40X~1000X(standard) Main Parameter Mechanical Tube Length Infinity（∞） Object Conjugate Distance Infinity（∞） Parfocalization Objective Port: Eyepieces Plan Objective WF 10X field:Ф22mm Distance: Ф30mm 10mm Trinocular Articulated Binocular，view in 30°，Iinterpupillary Distance: 48~75mm... -
Page 9: Operation
SOLARIS Biological Microscope operation manual. V. Operation 1. Turning on the power switch and adjust brightness control Before turning on the power switch, check if the input voltage is consistent with local voltage Warning supply. If not, do not operate this unit. If this unit uses an improper input voltage, short circuit or fire may arise, thereby cause damage to this unit! Turn on the toggle switch 1 on the back of the main body frame (turn it to the “-”... - Page 10 SOLARIS Biological Microscope operation manual. (3) If you choose the dark field condenser to observation, you need to adjust the center of the condenser for the symmetrical illumination. If you choose the dark field immersion oil condenser to observation, you need to put some anisol to fill the room of the between of sample and condenser for the dark field observation, as be shown in Fig.5.
- Page 11 SOLARIS Biological Microscope operation manual. 4. Reset diopter adjustment ring Turn the diopter ring 1 of the left and right eyepiece tube, and when the “0” diopter position is aligned with the side scale (mark white line), as shown in Fig. 8 (1) Turn the 40×objective into the light path, turn the diopter...
- Page 12 SOLARIS Biological Microscope operation manual. 6 . Operate coarse and fine focusing control knob The coaxial coarse and fine focusing system is adopted in this instrument, with coarse tension adjusting device. (1) The control knob 1 is for fine focusing, the control knob 2 is for coarse focusing。Turn the coarse focusing control knob 2 anticlockwise to lift the objective and clockwise to lower it.
- Page 13 SOLARIS Biological Microscope operation manual. 7. Operate trinocular device This unit performs eyepiece and photographic observation, switch by push-pull rod 4, located at the right side of main frame body. The photography output is located at the top side of trinocular and coverd by a dust-proof cap 2. As shown in Fig.
- Page 14 SOLARIS Biological Microscope operation manual. Ⅶ Ⅶ Ⅶ Ⅶ . Replace Bulb and Fuse 1. Replace bulb The unit light source is use 6V30W halogen bulb. When replace the halogen lamp, should ensure the specification in order to avoid electrical trouble. The following is operating steps.
-
Page 15: Maintenance
SOLARIS Biological Microscope operation manual. VII. Maintenance 1. The power switch of the main unit is the power control. When you don’t using the unit, press the switch to“O” for cut off the power supply, unless the electric component in this unit is still operating. When this unit is not to be used for a long time, remove the power plug from the supply socket and keep all cables properly.
