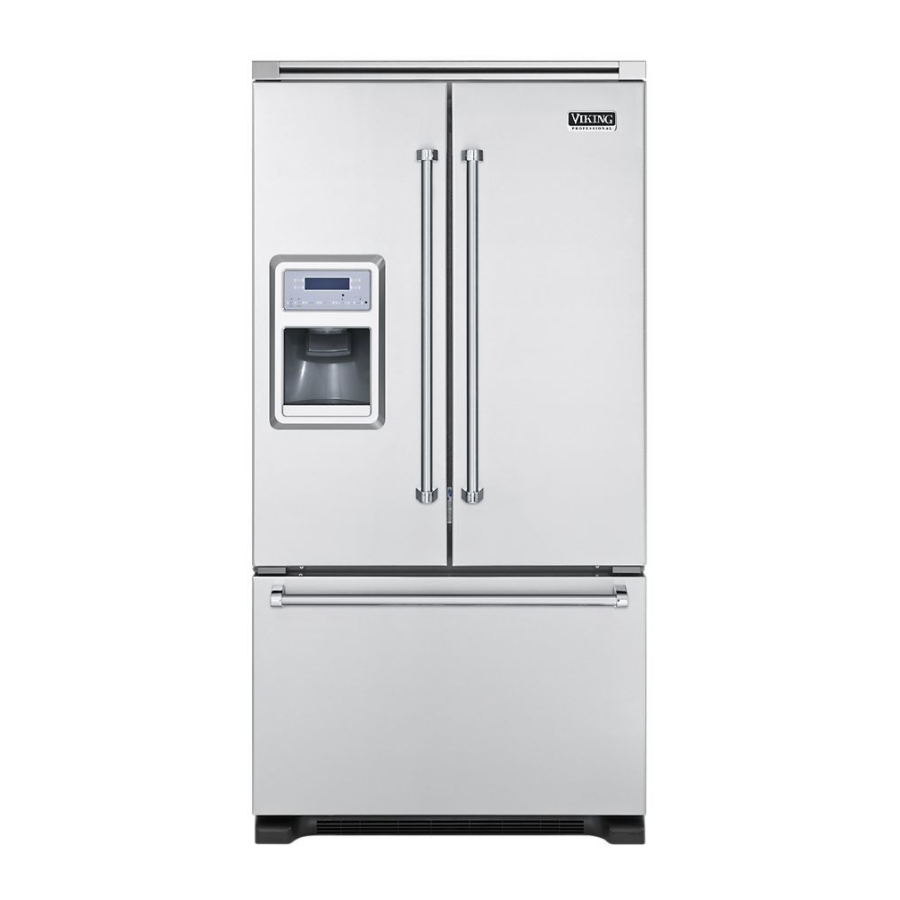

Viking VCFF136D Installation Manual

Professional & designer freestanding refrigeration side trim, side panel, top panel & grille installationfrench door bottom mount with dispenser

Hide thumbs Also See for VCFF136D:

Download this manual

Viking Installation Guide

Viking Range Corporation

111 Front Street

Greenwood, Mississippi 38930 USA

(662) 455-1200

For product information,

call 1-888-VIKING1 (845-4641)

Professional & Designer Freestanding

or visit the Viking Web site at

Refrigeration Side Trim, Side Panel,

vikingrange.com

Top Panel & Grille Installation-

French Door Bottom Mount with Dispenser

F20754 EN

(060910)

Need help?

Do you have a question about the VCFF136D and is the answer not in the manual?

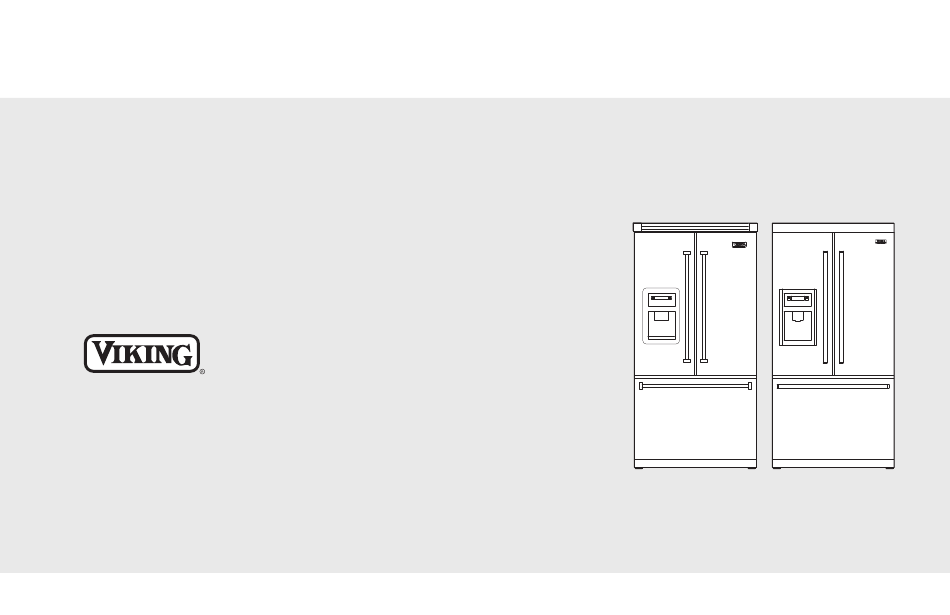

Page 1 Greenwood, Mississippi 38930 USA (662) 455-1200 For product information, call 1-888-VIKING1 (845-4641) Professional & Designer Freestanding or visit the Viking Web site at Refrigeration Side Trim, Side Panel, vikingrange.com Top Panel & Grille Installation- French Door Bottom Mount with Dispenser...
Page 2 Installation - Side Trim and Grille (Built-In Installation) Specifications Professional & Designer Freestanding Refrigerators Description V FF/DDFF136D with side panels/tops/grilles Overall width with side panels 35-7/8” (91.1 cm) Overall height with tops/grilles 71-7/8” (182.6 cm) Cutout width with side panels 36”...
Page 3 Installation - Side Trim and Grille Installation - Side Panel, Top Panel and Grille (Built-In Installation) (cont.) (Wrapped Installation) Required Components - Wrapped Installation Right Side 7 2 ” Panel Left Side Panel Panel Raise the unit up until the measurement from the floor Shim trim has adhesive backing on both sides.
Page 4 Installation - Side Panel, Top Panel and Grille (Wrapped Installation) (cont.) A - Designer Series B - Pro Series Remove edge and top of corner cover. With top panel and grille upside down, position grille Pull the machine cover and slip back of side panel Install machine cover screws back into assembly in front of top panel.
