Summary of Contents for Clear Comfort CCW100
- Page 1 Clear Comfort’s CCW100 Pool & Spa System Patented Hydroxyl-Based Advanced Oxidation (AOP) Installation, Operations & Maintenance Manual IMPORTANT SAFETY INSTRUCTIONS For further assistance contact us: 303.872.4477 support@clearcomfort.com clearcomfort.com V.13.0.30...
- Page 2 For the latest version, please visit: clearcomfort.com/ccw100-manual MADE IN USA ©2020 Clear Comfort. All Rights Reserved.
-
Page 3: Table Of Contents
INSTALLING THE CLEAR COMFORT MANIFOLD INJECTION ..11 Full System Diagram: Manifold Injection ........11 Manifold Installation ..............12 Connecting Clear Comfort System to Manifold Venturi ... 14 Air Flow Meter ................16 Operating Instructions ............. 17 FULL SYSTEM INTEGRATION DIAGRAMS ........18 Full System Diagram: Inline Chlorine Feeder...... -
Page 4: Warranty
1 year be repaired or replaced, at our option, of your ship date from Clear Comfort. without charge, within 90 days of the CONTACT INFORMATION: Tel: 303.872.4477 Operations: support@clearcomfort.com... -
Page 5: General Information
GENERAL INFORMATION IMPORTANT SAFETY INSTRUCTIONS 1. READ AND FOLLOW ALL 8. For units intended for above INSTRUCTIONS. ground storable swimming pools: WARNING – To reduce the risk of 2. For cord connected/convertible electric shock, do not use extension units: DANGER – Risk of injury. cord to connect unit to electric supply;... -
Page 6: Electrical Safety
Protect the power cord from electrical code. being walked on or pinched, GROUNDING particularly at plugs and the The Clear Comfort, Inc. system point where they exit from the must be properly grounded. An system. electrical ground connection to a •... -
Page 7: Description For Standard Clear Comfort Systems
Clear Comfort system. The Clear Comfort system can be installed in a few hours with little or no disruption to the recirculation or electrical systems. After the Clear Comfort system is installed, it is ready to start treating the water immediately. The Clear Comfort system protects pool or spa water (biocide, scale control and corrosion control) without the harsh effects of salt chlorine, high cyanuric acid or high chlorine levels. -
Page 8: Light Functionality

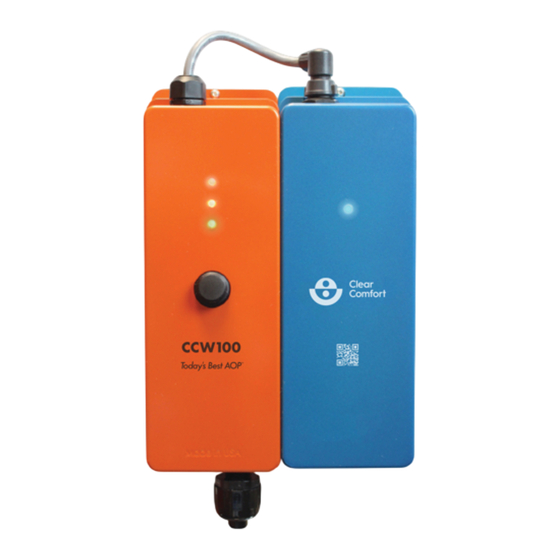

DESCRIPTION FOR STANDARD CLEAR COMFORT SYSTEMS FRONT VIEW Red LED Yellow LED Blue LED Green LED System Power Switch Control Unit Cartridge Unit Figure 1: System Functions LIGHT FUNCTIONALITY Green Light: System is on and operating properly. Yellow Light: Cartridge Unit has reached 80 percent of its life expectancy (8,000 hours) and it’s time to purchase a replacement cartridge. -
Page 9: Installing The Clear Comfort System
Indoors or outdoors: Either is suitable. It is recommended to • install away from upward facing sprinklers. • Water quality at installation: The water quality should be balanced prior to installing the Clear Comfort system. STANDARD CLEAR COMFORT INSTALLATION KIT • Option 1: Manifold •... -
Page 10: System Installation
ELECTRICAL INSTALLATION - GENERAL 1. Follow all local and national electric codes. 2. Determine if the Clear Comfort system will be powered by 120V or 230V. NOTE: All units are factory set to 230V. If your system will be powered by 230V, skip to Step 4. -
Page 11: Electrical Installation - Directly To Pump Circuit
ELECTRICAL INSTALLATION - WALL OUTLET 1. If the unit is being wired to standalone 120V AC power (i.e., not through the pump circuit), connect Clear Comfort system to the pool timing clock so that the system operates simultaneously with pool pump through a Ground Fault Circuit Interrupt (GFCI). -
Page 12: Cartridge Connection
INSTALLING THE CLEAR COMFORT SYSTEM CARTRIDGE CONNECTION Gently align the notched outdent on the front of the Cable Connector with the keyed indent of the front of Cartridge Connector, as shown with the arrow in Figure 3. Seat the Cable Connector down onto the Cartridge Connector and turn the Cable Connector’s Collar a quarter-turn clockwise... -
Page 13: Installing The Clear Comfort Manifold Injection
INSTALLING THE CLEAR COMFORT MANIFOLD INJECTION FULL SYSTEM DIAGRAM: MANIFOLD INJECTION NOTE: The Manifold injection is the preferred CCW100 installation method. For other U-bypass diagrams and instructions, please visit: clearcomfort.com/residential-manual Figure 4: Full System Diagram With Manifold Injection NOTE: For full system diagrams that include additional sanitation systems integrated with the Clear Comfort system, see pages 18 and 19. -
Page 14: Manifold Installation
INSTALLING THE CLEAR COMFORT MANIFOLD INJECTION MANIFOLD INSTALLATION (PREFERRED METHOD) PLEASE NOTE: TURN MAIN POOL PUMP OFF AND SWITCH OFF MAIN CIRCUIT BREAKER. 1. Pick a Location: • Select a location to install Manifold, see Step 2 for proper water flow configuration position. - Page 15 5 - 7 LPM using a Flow Meter. See page 16 for detailed instructions. NOTE: Failure to properly position the 3-way valve can result in an unwanted back-flow of water into the Clear Comfort system and other Figure 9: 3-Way Valve negative effects. 303.872.4477 support@clearcomfort.com...
-
Page 16: Connecting Clear Comfort System To Manifold Venturi
INSTALLING THE CLEAR COMFORT MANIFOLD INJECTION CONNECTING CLEAR COMFORT SYSTEM TO MANIFOLD VENTURI Water Flow Figure 10: Venturi Connection From CCW100 System To Venturi Figure 11: One-Way Air Check Valve 303.872.4477 support@clearcomfort.com clearcomfort.com... - Page 17 3. Install 1⁄4-inch one-way Air Check Valve (supplied) to eliminate any potential water back flow. See Figure 10 and 11 for details. 4. Gas exiting the Clear Comfort system to the Venturi connector port should flow easily. 5. Measure air suction using an Air Flow Meter and set Venturi air suction to draw between 5 - 7 LPM.
-
Page 18: Air Flow Meter
INSTALLING THE CLEAR COMFORT MANIFOLD INJECTION AIR FLOW METER 1. Determine your variable speed setting and run your pump (2,400 RPM or higher). 2. Disconnect the blue Air Tubing from the Check Valve (between the Manifold and Check Valve) 3. Connect blue Air Tubing to the Flow Meter. -
Page 19: Operating Instructions
5 - 7 LPM using a Flow Meter. See page 16 for detailed instructions. 5. Toggle Clear Comfort system switch to the ON position. 6. Water entering the pool/spa should have bubbles exiting from at least one of the returns on to the body of water. -
Page 20: Full System Integration Diagrams
FULL SYSTEM INTEGRATION DIAGRAMS FULL SYSTEM DIAGRAM: INLINE CHLORINE FEEDER Figure 16: Inline Chlorine Feeder FULL SYSTEM DIAGRAM: OFFLINE CHLORINE FEEDER Figure 17: Offline Chlorine Feeder 303.872.4477 support@clearcomfort.com clearcomfort.com... -
Page 21: Full System Diagram: Salt Water Chlorine Generator
FULL SYSTEM INTEGRATION DIAGRAMS FULL SYSTEM DIAGRAM: SALT WATER CHLORINE GENERATOR Figure 18: Salt Water Chlorine Generator FULL SYSTEM DIAGRAM: UV SYSTEM Figure 19: UV System 303.872.4477 support@clearcomfort.com clearcomfort.com... -
Page 22: System Maintenance
The Cartridge Unit must be exchanged annually. No other maintenance is required. If the yellow OR red LED light is illuminated, the old Cartridge Unit must be exchanged and returned to Clear Comfort for proper recycling. For sustainability purposes, Clear Comfort provides a return- shipping label so the Cartridge Unit can be properly recycled. - Page 23 SYSTEM MAINTENANCE 4. Remove Cartridge Unit from Control Unit. Note: Please return old Cartridge Unit to Clear Comfort for proper recycling. For sustainability purposes, Clear Comfort provides a return-shipping label so the Cartridge Unit can be properly recycled. 5. To install the replacement cartridge,...
-
Page 24: Basic Water Care
BASIC WATER CARE BASIC WATER CARE 1. Run Clear Comfort 24/7: • To get proper airflow from the Clear Comfort system, use a variable speed pump & set it between 2200 - 2400 RPM. • If you’re using a DE Filter, let it rest for 1 hour everyday 2. -
Page 25: Frequently Asked Questions
• Where does the Clear Comfort system get installed? The Clear Comfort system needs to be within 10 feet of the pool or spa Manifold injection site. It can be installed either indoors (as long as there is access for the air handling) or outdoors. The system’s Manifold is installed directly into the pool or spa plumbing. -
Page 26: Wiring
For questions regarding this operational mode please contact Clear Comfort at 303.872.4477. 230V power supply cord supplied and must be field wired in accordance to the NEC (ONLY FOR 230V). - Page 28 For the latest version, please visit: clearcomfort.com/ccw100-manual For further assistance contact us: 303.872.4477 support@clearcomfort.com clearcomfort.com MADE IN USA ©2020 Clear Comfort. All Rights Reserved.
