Qudo QUDOC200BK Instruction Manual

Clock radio with wireless charging
Hide thumbs

Advertisement

Table of Contents

INSTRUCTION MANUAL
CLOCK RADIO WITH
WIRELESS CHARGING
Model: QUDOC200BK
1/10

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the QUDOC200BK and is the answer not in the manual?

Questions and answers

Related Manuals for Qudo QUDOC200BK

Summary of Contents for Qudo QUDOC200BK

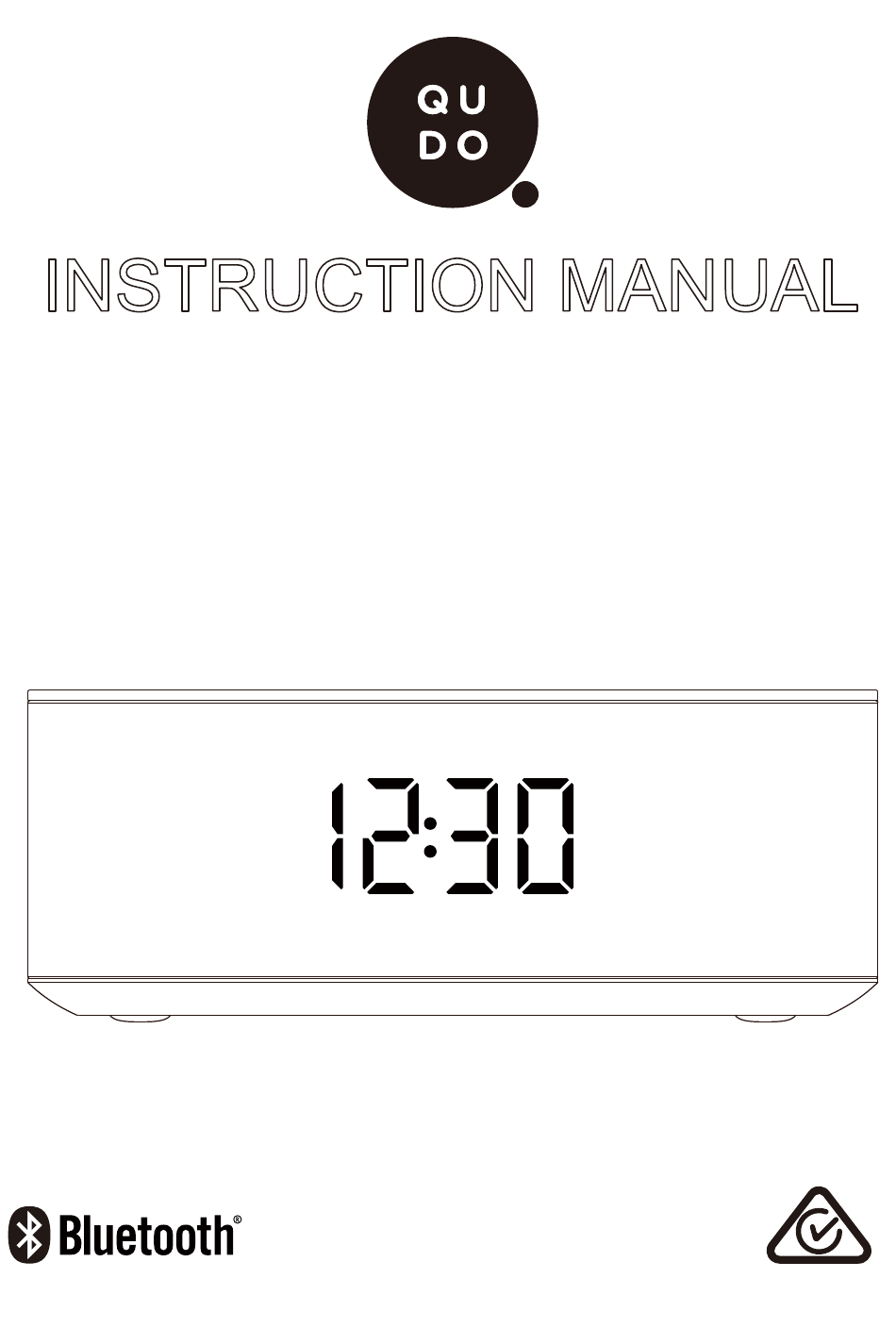

  • Page 1 INSTRUCTION MANUAL CLOCK RADIO WITH WIRELESS CHARGING Model: QUDOC200BK 1/10...

  • Page 2: Product Specifications

    Product Specifications • Bluetooth Standard: 4.2 • Output Power: 5W*2 • S/N Ratio: ≥70dB • FM Range: 87.5-108.0MHz • Power Supply: DC 14V/1.0A • Wireless Charging Power: 5W (Output Voltage: 5V Output Current: 1A) • Functions: Bluetooth playing, Aux-in Playing, FM, Wireless charging, USB charging, Clock and Alarm Packing Contents 1.
  • Page 3 Functions (top panel) 11 12 13 14 15 (back panel) 3/10...
  • Page 4 16 17 (front panel) 1. Previous Track in Bluetooth Mode(Short Press)/Previous Memorised Channel in FM Mode (Short Press) 2. Next Track in Bluetooth Mode (Short Press)/Next Memorized Channel in FM Mode (Short Press) • Remarks for button 1 and 2: if at the mode of Aux-in, the track could only be changed through your device.

  • Page 5: Power Supply

    7. Volume + (Short Press) • Increase volume. • The number adds when setting clock or alarm. 8. Location of wireless charging area. 9. Wireless charging indicator green indicator • The green indicator is on when the speaker is wireless charging to your device.

  • Page 6: Wireless Charging

    Pairing the Device 1. Place your device near the clock radio. 2. Search for Bluetooth according to your devices instructions. 3. The Speaker is named “QUDOC200BK”, enter the PIN “0000” if needed. 4. The Speaker will beep at the completion of pairing.

  • Page 7: Setting The Clock

    Setting the Clock 1. The CLOCK button cycles through clock, alarm 1, alarm 2 with each short press. 2. To set the time press and hold the CLOCK button when time is showing. 3. The hour digits will now flash. Press VOLUME + or VOLUME – to set the required hour and press CLOCK to confirm.

  • Page 8: Safety And General Information

    There are 3 options: ‘OFF’ indicastes to turn off of the alarm ring ‘ON’ indicates the default alarm ring of system ‘ ’ indicates to set the first FM channel P01 as the alarm ring 9. When alarm is triggered, press the MODE button to enter snooze mode(the snooze time is 5 minutes);...
  • Page 9 • Maintain the appliance in accordance with the instructions to ensure that it functions properly. • Keep this manual with the appliance. If the appliance is to be used by a third party, this instruction manual must be supplied with it. The safety instructions do not by themselves eliminate any danger completely and proper accident prevention measures must always be used.

  • Page 10: Troubleshooting

    10. Before moving the appliance, please pull out the power adapter and disconnect from any other equipment. 11. Please do not block any ventilation openings of the device, otherwise it will cause a rise in internal temperature of the apparatus and thus cause damage to the circuit. 12.
