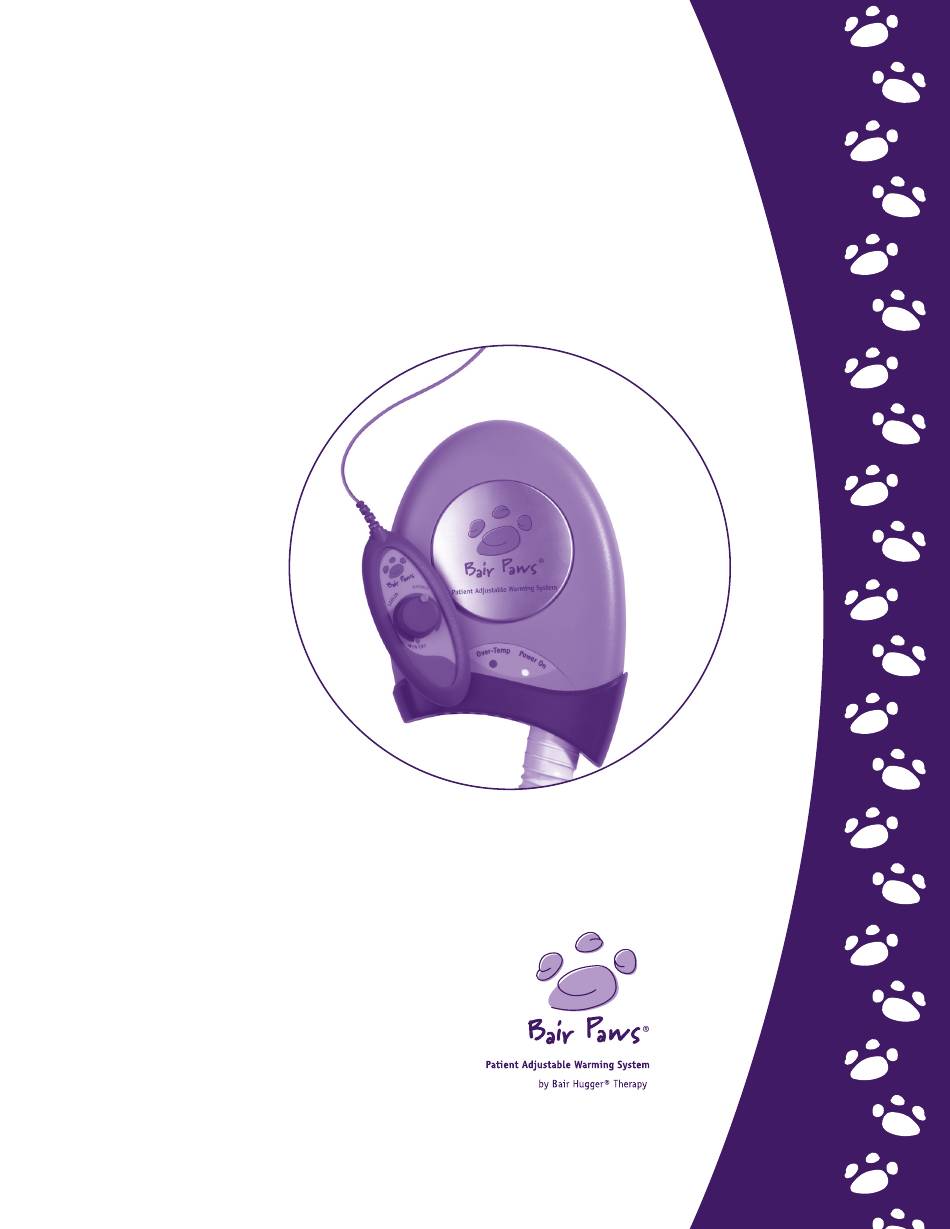

- Page 1 Check the Bair Paws system website to ensure you have the most recent version of this document. www.bairpaws.com reorder #200744G Bair Paws ® Model 850 Warming Unit Operator’s Manual...
-
Page 2: Table Of Contents
Table of Contents Introduction to the Bair Paws® Patient Adjustable Warming System .......1 Important Information about the Bair Paws Model 850 Warming Unit ......2 Indications/Intended Use ...................2 Contraindication ....................2 Warnings ......................2 Precautions ......................3 Proper Use and Maintenance ................3 Read Before Servicing Unit ................3 Preparing the Bair Paws Model 850 Warming Unit for Use ..........4 Placing the Warming Unit on the Wall-mount Bracket ........4 Mounting the Warming Unit on an IV Pole ............5... -
Page 3: Introduction To The Bair Paws® Patient Adjustable Warming System
The gown also has Velcro® fastener strips on each shoulder that provide easy access to the patient’s arms and chest. The Bair Paws warming gowns are latex-free. VELCRO is a registered trademark of Velcro Industries B.V. Arizant Healthcare Inc. -
Page 4: Important Information About The Bair Paws Model 850 Warming Unit
Important Information about the Bair Paws Model 850 Warming Unit Indications/Intended Use The Model 850 warming unit is indicated for patient warming. This warming unit has been designed for use with the Bair Paws warming gowns in all preoperative and postoperative settings. Contraindication Do not apply heat to lower extremities during aortic cross-clamping. -
Page 5: Precautions
Monitor the patient’s temperature and cutaneous response every 10-20 minutes or according to institutional protocol and monitor the patient’s vital signs regularly. Proper Use and Maintenance Arizant Healthcare Inc. assumes no responsibility for the reliability, performance, or safety of the unit if: •... -
Page 6: Preparing The Bair Paws Model 850 Warming Unit For Use
A wall-mount bracket is shipped with every warming unit; the brackets for mounting the warming unit to an IV pole or a bedrail are available separately. Please contact your local sales representative or call Arizant Healthcare® customer service at 1-800-733-7775 for more information about ordering mounting brackets. -
Page 7: Mounting The Warming Unit On An Iv Pole
Wrap the safety strap around the bedrail and connect the end to the fastener on the strap. The safety strap will prevent the warming unit from falling if the rail-mount is inadvertently dislodged from the bedrail. Bedrail Safety strap Rail-mount Arizant Healthcare Inc. -
Page 8: Mounting The Warming Unit With A Rail-Mount To The Wall
Mounting the Warming Unit with a Rail-mount to the Wall Precaution: For use only with the Model 850 warming unit. Hook the warming unit with the attached rail-mount to the rail-to-wall bracket. Rail-to-wall bracket Bair Paws Model 850 Warming Unit Operator’s Manual ®... -
Page 9: Operating Information
Squeeze and hold the two buttons on the sides of the hose nozzle. Insert the nozzle into the open hose port in the warming gown. Release the buttons to lock the hose nozzle in place. Arizant Healthcare Inc. - Page 10 Connect the warming unit to a properly grounded power source. Turn the knob on the temperature controller clockwise to turn the warming unit ON. When you turn the warming unit on, the heater and blower activate. Also, the “Power On” indicator light illuminates. Allow the patient to adjust the temperature to a comfortable level.
-
Page 11: Using The Hand-Held Temperature Controller Holder
Allow the warming unit to run for at least 5 minutes. • If the “Over -Temp” light illuminates again, return the warming unit to Arizant Healthcare for service. • Otherwise, reconnect the warming unit hose to the Bair Paws gown to resume patient warming. -
Page 12: General Maintenance
General Maintenance Calibrating the Operating Temperatures Operating temperature calibration should be verified every 6 months and after performing service procedures. In addition, if the ambient temperature where the warming unit will be used is higher than 24°C (75°F), the unit should be recalibrated before it is placed in service. You will need a Bair Paws Model 90055 temperature test kit to perform the calibration. -
Page 13: Technical Support And Customer Service
The serial number is located on the back of the unit. Repair and Exchange Call Arizant Healthcare customer service if your Model 850 warming unit requires service. A customer service representative will give you a Return Authorization (RA) number. Please use this RA number on all correspondence concerning your warming unit. -
Page 14: Bair Paws Warming Unit Limited Warranty
Defective Units or parts must be returned to Arizant Healthcare Inc., 10393 West 70th Street, Eden Prairie, MN 55344. Repair or replacement of a Unit or part under the terms of this limited warranty in no way lengthens the limited warranty period. -
Page 15: Technical Specifications
Classified by Underwriters Laboratories Inc. with respect to electric shock, fire, and mechanical hazards only, in accordance with UL 60601-1, ASTM F2196- 02, and Canadian/CSA C22.2, No. 601.1. Classified under the Medical Device Directive (93/42/EEC) as a Class IIa device. Arizant Healthcare Inc. - Page 16 Technical Specifications - Continued Electrical Characteristics blower motor Airflow: 7-9 cfm power consumption Peak: 290W Average: 150W leakage current Meets IEC 60601-1 and UL 60601-1 requirements heating element 285W Resistive power cord 15-foot, SJT, 3 cond., 10A device ratings 110-120 VAC, 60 Hz, 3.0 A fuses 3.0 A temperature controller cord...
-
Page 17: Definition Of Symbols
Definition of Symbols The following symbols may appear on the product, on the exterior packaging, or in the product labeling. Class II Equipment No free hosing Arizant Healthcare Inc. - Page 18 TEL 800-733-7775 • 952-947-1200 FAX 800-775-0002 • 952-947-1400 www.bairpaws.com Bair Hugger, Bair Paws, Arizant, Arizant Healthcare, bright ideas that work,and the Bair Paws and Arizant logos are trademarks of Arizant Healthcare Inc., registered or pending in the U.S. Patent & Trademark Office and in other countries.
