Logik LSCAN11 Instruction Manual

Logik LSCAN11 Instruction Manual

Slide & film scanner
Hide thumbs
Table of Contents

Advertisement

Quick Links

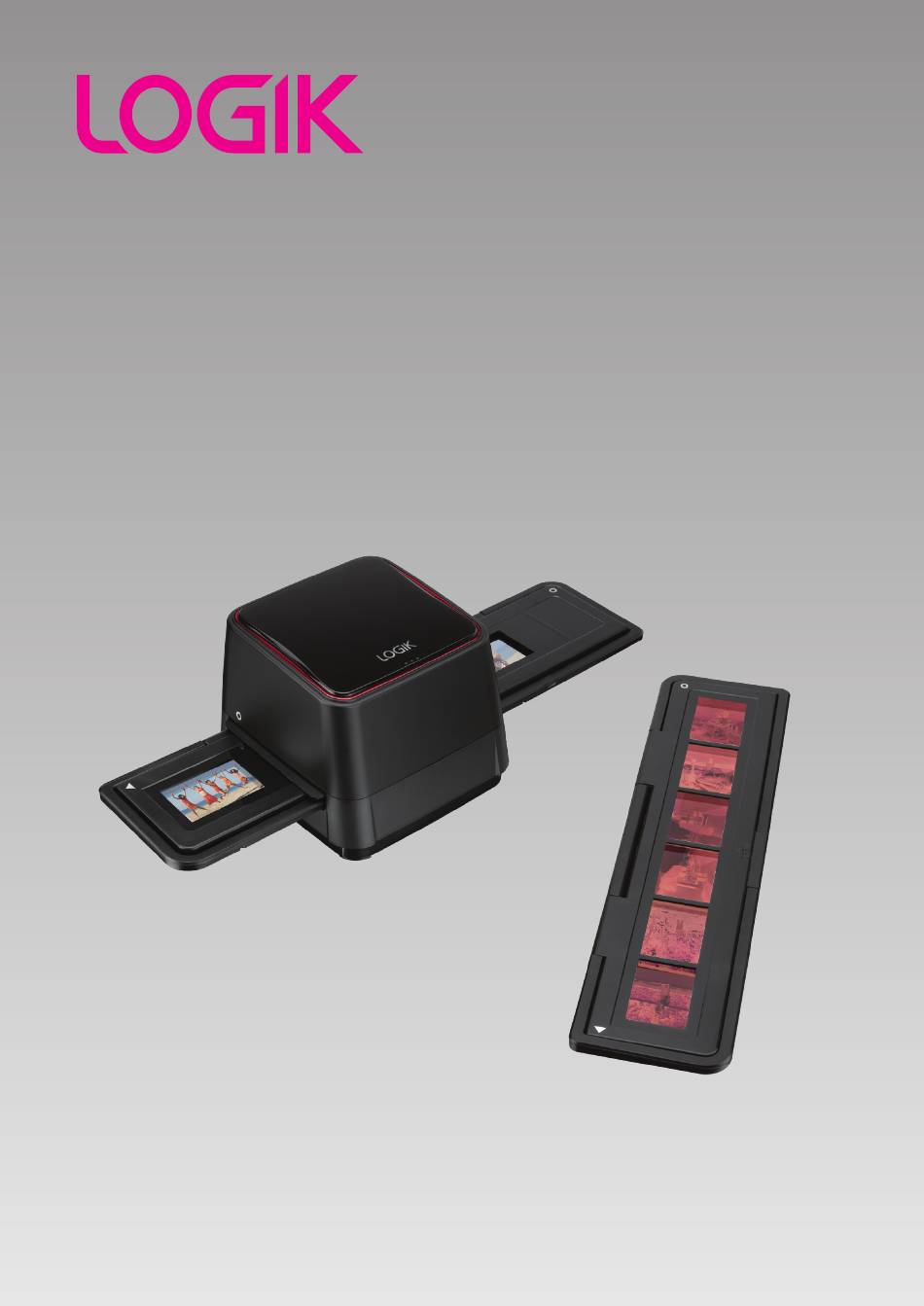

Slide & Film Scanner
Instruction Manual
LSCAN11
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LSCAN11 and is the answer not in the manual?

Questions and answers

Related Manuals for Logik LSCAN11

Summary of Contents for Logik LSCAN11

  • Page 1 Slide & Film Scanner Instruction Manual LSCAN11...

  • Page 2: Table Of Contents

    Contents Unpacking ......................3 System Requirements ..................4 PC System Requirements ....................4 Mac System Requirements ....................4 Product Overview ....................5 Place Film / Slide Into The Holder ..............6 Installing the Software ..................7 Installing the Software in Windows ................7 Installing the Software in Mac ..................7 Connections ......................8 Acquire Picture ....................9 Acquire Picture from Windows ..................9...

  • Page 3: Unpacking

    Thank you for purchasing your new Logik Slide and Film Scanner. These operating instructions will help you use it properly and safely. We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. You will also find some hints and tips to help you resolve any issues.

  • Page 4: System Requirements

    System Requirements PC System Requirements • Pentium® P4 1.6G processor or equivalent AMD Athlon • Free USB2.0 port • 512MB RAM internal memory minimum • 500MB free hard disk space • 1024 x 768 pixel colour monitor • CD-ROM drive •...

  • Page 5: Product Overview

    Product Overview Power LED Indicator USB Cable Film / Slide Holder Slot Clean Brush 135 Negative Film Holder Slide Holder We suggest using bundled brush to insert into the scanner slot and clean the glass surface periodically to produce a clear image. Please make sure your film negatives/ mounted slides and the holders are clean before inserting into the scanner as well.

  • Page 6: Place Film / Slide Into The Holder

    Place Film / Slide Into The Holder Keep the glossy surface in the upward direction. Open the negative/ positive slide holder as Illustrated. Put 135 negative films / positive slides into holder as shown. Close the holder and please make sure the holder close properly. Make sure the Film / Slide holder has closed completely before insert it into the scanner.

  • Page 7: Installing The Software

    Installing the Software To use the photo scanner you must install ArcSoft MediaImpression in advance. Installing the Software in Windows Insert the installation CD into the CD-ROM drive and the installation CD menu should appear. When you see the following screen, choose MediaImpression to install the software.

  • Page 8: Connections

    Connections Plug the USB cable of scanner into your computer’s USB 2.0 port. Once connected the Power LED indicator will turn on. Insert the loaded film / slide holder properly into the slot according to the triangular and circular signs as shown.

  • Page 9: Acquire Picture

    Acquire Picture Acquire Picture from Windows Double click on the MediaImpression icon on the desktop and you will see the following. Click “Acquire”. Select “Acquire from Film Scanner”. Define your file settings: a. There are two formats JPG or TIF for setting.
  • Page 10 c. Select the location to save your image. d. There are two film sizes 135 film (software default) and 110 film to choose from. You are suggested to select 135 film, most users do not have 110 film. e. Select the film type (Slide, Negative or Black &...

  • Page 11: Acquire Picture From Mac

    Capturing images You will see the image to be captured in the live view window, move the holder to avoid dark edge of the holder appears in the live view window, the dark edge will be captured if it appears. If the dark edge is on top or bottom when taking slide image, tilt the device left or right will help to...
  • Page 12 b. There are four quality levels (Highest/ High/ Normal/ Low) for selection in JPG format. c. Select the location to save your image. d. There are two film sizes (135 film, 110 film) to choose from. You are suggested to select 135 film, most users do not have 110 film.

  • Page 13: Cleaning The Sensor Glass

    Capturing images You will see the image to be captured in the live view window, move the holder to avoid dark edge of the holder appears in the live view window, the dark edge will be captured if it appears. If the dark edge is on top or bottom when taking slide image, tilt the device left or right will help to...

  • Page 14: Edit The Pictures

    Edit The Pictures First, click on the picture to select, and then use the ArcSoft MediaImpression tools to edit the pictures as you like. Click “Photo Editing”, then click “Photo Editing Tools”. The Photo Editing Tools module includes a complete set of photo enhancement, editing and retouching controls.
  • Page 15 Colour This feature is designed to fix Digitize photos that have unnatural colour or appear too dark. It’s also great for fixing scanned versions of old prints that have faded or whose colours have changed after many years. How to fix the colour of a photo: Drag the colour balance sliders to make the photo colour appear more natural.
  • Page 16 Straighten This feature enables you to fix photos that appear to be tilted. How to use Straighten: Move the slider (or click the rotate buttons) until the photo appears straight. Use the superimposed grid lines for vertical and horizontal reference. Click “Apply”...

  • Page 17: Retouch

    Retouch Healing Brush The Healing Brush is good for fixing dust, scratches and removing skin blemishes. How to use the Healing Brush to fix a skin blemish: Establish a source point for the Healing Brush by holding the Shift key and clicking on an area of the skin that is close in colour and texture to the area you want to heal.

  • Page 18: Clipboard

    Blur Smooth out rough areas. Click and drag the sliders below to change the brush size and intensity. Paint Brush Allows you to “paint” on your image when you click and drag the mouse. Click and drag the sliders below to change the brush size and transparency. Line Draw a straight line in the photo.

  • Page 19: Specifications

    Specifications Model LSCAN11 Image Sensor 1/3.2”, 5 Mega COMS Sensor Lens Specification F = 2.8, f = 4.76 mm, 4P Colour Balance Automatic Exposure Control Automatic Support Film Size 135 Film (36mm x 24mm) Auto Cropping Support Film Type Slide...

  • Page 20: Safety Warnings

    Safety Warnings Please read all the instructions and familiarise yourself with the features and operation of your scanner before using the appliance. Make sure you read all the safety notes carefully and retain for future reference. • Never operate Scanner inside of an aircraft or anywhere else where operation of such devices is restricted.
  • Page 21 NOTE: If you require a replacement for any of the items listed below, please quote their corresponding part numbers: Replacement Part Part Number 135 Negative Film Holder 130-FP001-FC001A Slide Holder 130-FP001-FC0012A Clean Brush 62-FP001-G01001 Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories.
