Summary of Contents for Beta Three XC2.6

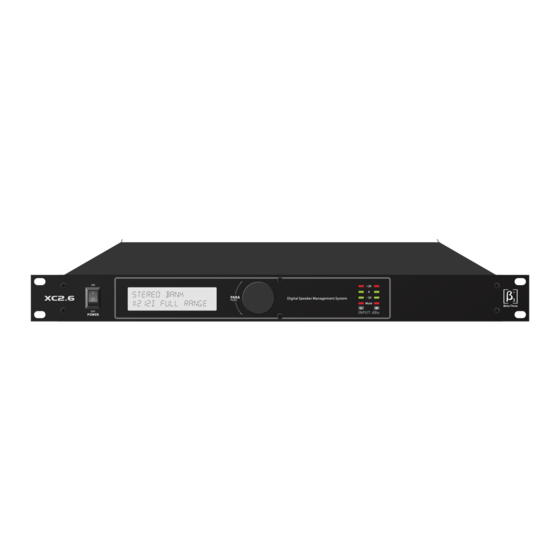

- Page 1 USER MANUAL XC2.6 DIGITAL SPEAKER CONTROLLER XC2.6 PARA Digital Speaker Management System PUSH Mute INPUT dBu POWER U M- X C 2 . 6 - 2 0 0 9 0 4 2 5 v e r A...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. CAUTION 2. INTRODUCTION 2.1 Major feature 2.2 Audio feature 2.3 User interface 2.4 Other feature 3. UNPACKING 4. AC POWER SUPPLY REQUIREMENT 5. FRONT PANEL CONTROL FEATURE 6. BACK PANEL CONNECTION FEATURE 7. DISPLAY AND OPERATION 8. -
Page 3: Caution
1. CAUTION Instruction: The lightning flash with arrowhead symbol within the equilateral; triangle is intended to alert the user to the presence of un-insulated “angerous voltage” within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock. The exclamation point within the equilateral triangle is intended to alert the user to the presence of important operation an maintenance (servicing) instructions in the literature accompanying this appliance. -
Page 4: Introduction
2. INTRODUCTION Thank you very much for purchasing of XC2.6 digital speaker controller whose brand is β3 from Elder audio company. The product have cohered elder company's more than ten years cherish experience in the field of professional audio system,. The excellent voice performance and the competitive price will guarantee your profit from your investment. -
Page 5: Unpacking
3. UNPACKING Each product have to be packed carefully before ex warehouse as part of our quality system control. Please check carefully on the product's appearance. For the future's convenience of transport and guarantee the product safety and capability, please keep all of the packing material well. Please inform the distributor immediately in the convenience of provide the letter guarantee if finding the appearance damage on the product. -
Page 6: Front Panel Control Feature
5. FRONT PANEL CONTROL FEATURE XC2.6 PARA Digital Speaker Management System PUSH Mute INPUT dBu POWER 1. Power switch: Put the 1 means"TRUN ON" and 0 means "TRUN OFF". 2. LCD display: Display the program which is using. 3. The coder with "PUSH"function, browse and transfer the configuration program. -
Page 7: Display And Operation
7. DISPLAY AND OPERATION Power on the device and it will display the present program number and name as below: Preset 01 Stereo FullRange Built-in configuration program browse and transfer Rotate the coder on panel, enter program browse status: R e c a l l : P r e s e t 0 2 Name: Mono FullRange Under this interface, press "PUSH KEY"... -
Page 8: Troubleshooting
8. THE CONFIGURATION PROGRAM UPGRADE Via USB port, to connect the devise with computer, run the relevant update. exe software to upgrade the configuration program, see below photo: Click "Yes" to start the program update, click "No" to exit the update. 9.TROUBLESHOOTING Problem Check and Solution... -
Page 9: Technical Specification
10. SPECIFICATIONS Analog Input: Input: balance XLR-3-32 input socket Input Impedance: unbalance≥10kΩ,balance≥20kΩ Max input level: ≥+20dBu （THD+N = 0.1%） A/D Convertor: 48kHz sample frequency, 24bits linear Analog Output: Input: balance XLR-3-32 out put socket Output Impedance: unbalance≤50Ω,balance≤100Ω Load impedance: ≥600Ω Max input level: ≥+20dBu （THD+N = 0.1%）... -
Page 10: Block Diagram
11. BLOCK DIAGRAM INPUT OUTPUT HPF LPF Delay Mute Gain COMP L-Left HPF LPF Delay Gain Mute Gain COMP Mute L-Mid HPF LPF Delay Gain COMP Mute L-Low Delay HPF LPF Gain COMP Mute R-Left Mute HPF LPF Delay Gain Gain COMP Mute... - Page 11 Notes:...
- Page 12 www.beta3pro.com...
