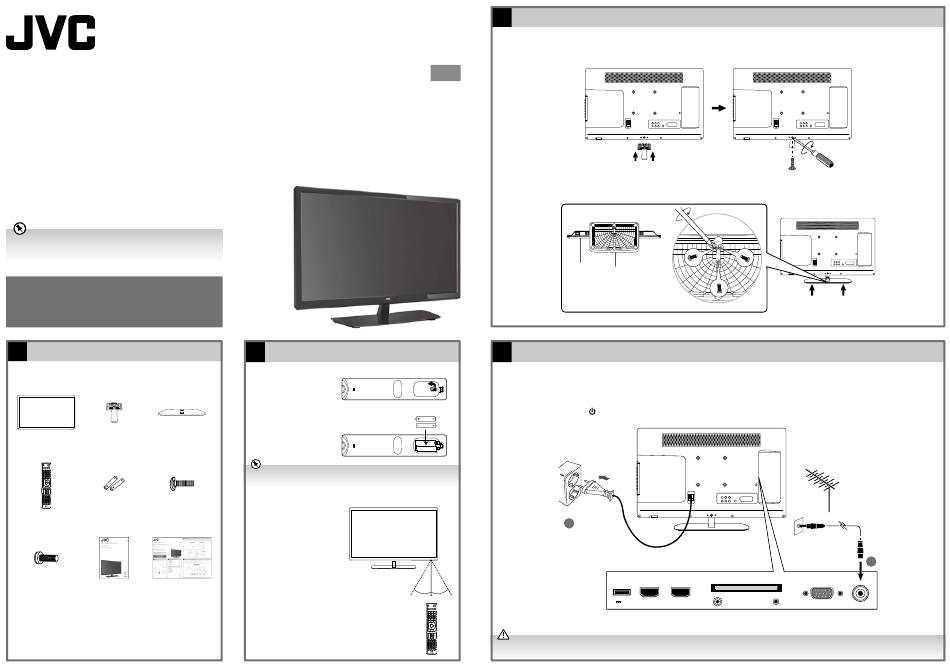

JVC LT-22K560 Quick Start Manual

Quick Start Guide
22" FHD LED TV
LT-22K560
Thank you
for purchasing your new JVC TV.
Your new TV incorporates the latest technology to enhance your viewing
experience. We would suggest that you allow about 20 mins for initial setup.
Please follow this guide for a successful first time installation.
The latest eco-friendly power-saving technology will switch off the TV if device is left
on and idle for 4 hours. Please refer to "Auto Standby" under the "Time Settings" section
of the instruction manual for more detail.
For Help and Support Call
210 289 9999
www.kotsovolos.gr
1
Unpacking
Remove all packaging from the TV. Retain the packaging. If you
dispose of it please do so according to any local regulations.
TV TV Stand Support TV Base
TITLE
ASPECT S.MODE P.MODE GUIDE
LIST
MENU INPUT
OK
BACK PROG EXIT
ANGLE
TV.RD
SETUP
FAV
HOLD REVEAL SUBPAGE INDEX
MENU
TEXT
CANCEL MIX OK SIZE
AUDIO
ZOOM STEP
GOTO SLOW REPEAT A-B
Remote Control AAA Batteries x 2 Screw A x 1
Screw B x 3 Instruction Manual Quick Start Guide
2
Operating Your Remote Control
Installing Batteries
1. Press and lift the back
cover to open the
battery compartment of
the remote control.
2. Insert two AAA size
batteries. Close the
battery compartment
cover.
Install the batteries correctly by following the polarity (+ and -) indications in the
battery compartment.
Operation Range
Point the remote control
at the TV no more than 5
metres from the remote
control sensor on the TV and
within 60° in front of the
TV. The operating distance
may vary depending on the
brightness of the room.
30°
5M
ASPECT
LIST
MENU
BACK
HOLD
MENU
CANCEL TEXT
AUDIO
ZOOM
GOTO
3
Installing the Base Stand
1. Lay the TV down on a flat surface with the back side facing up, and ideally at the edge of a table so that the base of the TV slightly overhangs on it. Please
make sure a soft cushioned material (such as a pillow or thick piece of foam) is placed beneath the screen.
2. To install the TV stand, first attach the stand support to the TV by using screw A. Align with the screw hole then use screws to fix the stand support to the
TV.
GB
3. To install the base stand, align the screw holes, then secure with a screw driver (not included) using the 3 screw B provided.
TV Front
4
Connecting the Aerial and the Mains Socket
1. Connect one end of the RF coaxial cable to the aerial socket on the wall and the other end of the cable to the RF (75Ω) socket at the rear right side of your
TV.
2. Connect the mains cable to the mains socket after you have completed all the connections.
3. At this stage, the TV switches to standby mode. The red LED indicator will illuminate on the front panel of the TV.
4. In standby mode, press the
button on the side panel of the TV or on the remote control to turn the TV on. The red LED indicator will turn off.
2 To the mains
socket
30°
TITLE
S.MODE P.MODE GUIDE
INPUT
OK
PROG EXIT
ANGLE
TV.RD
SETUP
FAV
REVEAL SUBPAGE INDEX
MIX SIZE • Do not connect the TV to the mains supply until you have completed all the connections.
OK
STEP
SLOW REPEAT A-B
• If you watch TV using a set-top box, simply connect your TV and set-top box via a HDMI cable and select HDMI in the Input Source menu.
Screw A x 1
screw in
Base Stand
Front
Screw B x 3
COMMON INTERFACE (CI)
USB HDMI2 HDMI1
HEADPHONE PC AUDIO
5V 500mA
screw in
OR
RF coaxial cable
(not included)
1
PC IN RF
