Summary of Contents for LTH COB100-RGBW

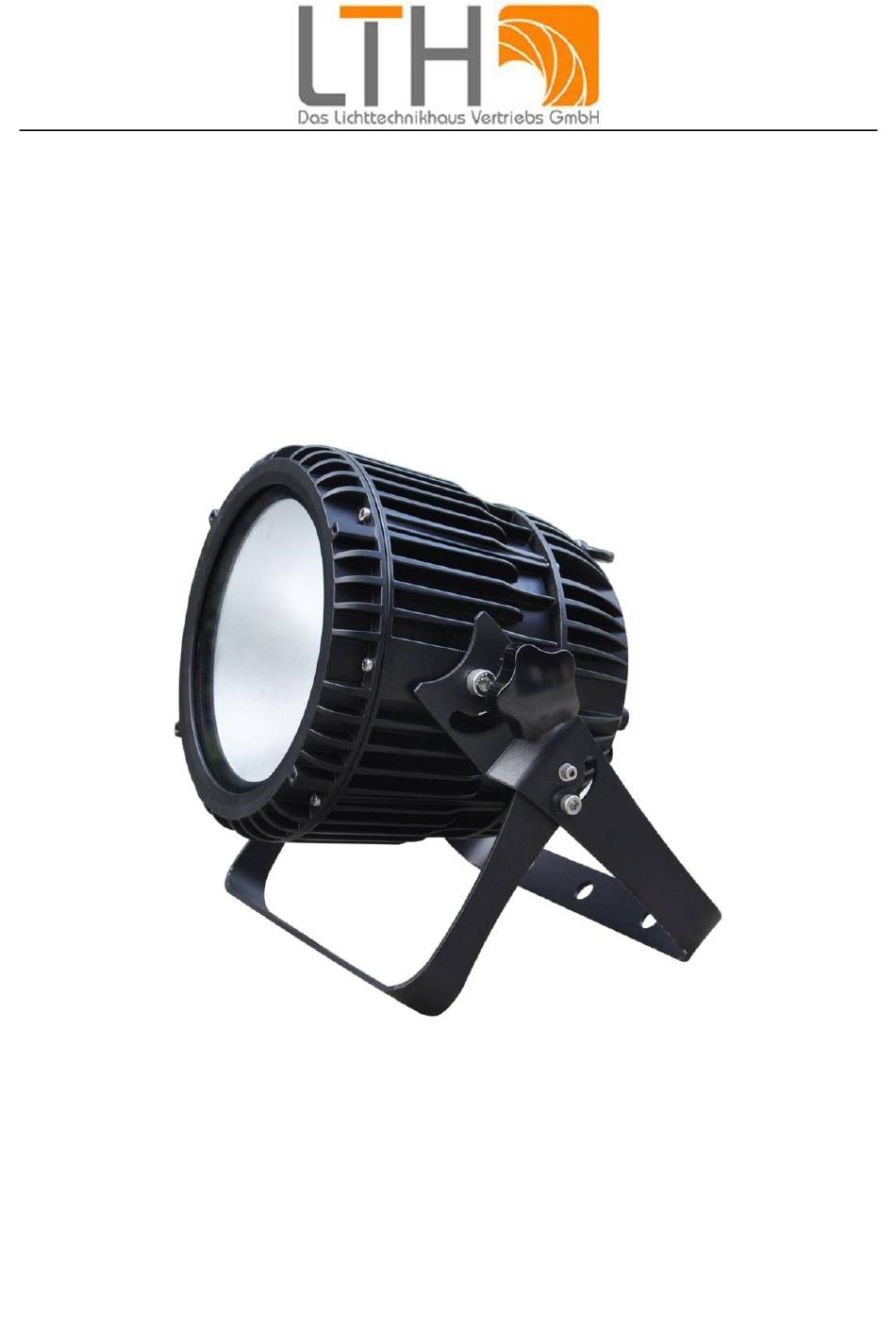

- Page 1 18442 （COB100-RGBW 4-in-1） USER MANUAL...
-
Page 3: Table Of Contents
Index 1. Summary ................................1 2. Safety Instruction ............................. 2 3. Outside Size Picture ............................3 4. Main Function ..............................3 5. DMX Control Function ............................4 6. Display Operation instruction ........................... 6 6.1 DMX ADDRESS SETTING ........................9 6.2 STATIC SETTING ............................ 9 6.3 COLOR CAST CALIBRATION SETTING .................... -
Page 4: Summary
Summary Summary Thank you for purchasing our COB100-RGBW. Please read these instructions carefully before begin and operate the fixtures according to these instructions to avoid any possible damages and accidents causes by misusage Product introduction casting aluminum housing COB100-RGBW light uses , designed in a fashion of hydrodynamic form. -
Page 5: Safety Instruction
2. Safety Instruction Safety Notes ! Enquire the skilled people before any repair; ! Always make sure disconnect from the power source before setting up, serving and moving;. ! Avoid direct eye exposure to the fixture when it is on; ... -
Page 6: Outside Size Picture
3. Outside Size Picture 4. Main Function Input voltage: AC 100V-264V/47-63HZ Consume：120W Lamp Type：COB100 W LED 4-in-1 R、G、B、W(1PCS) Life span: 50000~100000hours PWM Dimmer：1500HZ(16666 grades) Control Signal：DMX512 Control mode：stand alone/ sound activated Channel：10CH、7CH、5CH、4CH、3CH ... -
Page 7: Dmx Control Function
Built-in temperature control measurement function, when LED work overheated, intelligent reduce LED output power, current power output can be viewed Cooling mode: Natural Convection Anti-electricity intension：1.5KV Insulation Resistance:>2MΩ Beam Angle: 25°,45° Optional 5. DMX Control Function ... - Page 8 41-45 CT07 46-50 CT08 51-55 CT09 56-60 CT10 61-65 AUTO 1 (R,G,B,W,RG,RB,GB) 66-70 AUTO 2 (R↑,R↓,G↑,G↓,B↑,B↓,W↑,W↓) 71-75 AUTO 3 (R↑G↑,R↓G↓,R↑B↑,R↓B↓,B↑G↑,B↓G↓) 76-80 AUTO 4 (R↑G↑B↑W↑,R↓G↓B↓W↓) AUTO 5 (Rainbow effect: 81-85 B,BG↑,BG,B↓G,G,GR↑,GR,G↓R,R,RB↑,RB,R↓B) 86-90 CHASE 1 91-95 CHASE 2 96-100 CHASE 3 101-110 Reserved R:111-115,G:116-120,B:121-125,W:126-130,RGW:131-1 35,RGB:136-140,YELLOW:141-145,PINK:146-150,CYA 111-200...
-
Page 9: Display Operation Instruction
11-20 Linear curve 21-30 Square law curve 31-40 Inverse square law curve 41-50 S-curve 51-60 Linear curve and smooth 61-70 Square law curve and smooth 71-80 Inverse square law curve and smooth 81-90 S-curve and smooth 91-255 Use the dimmer mode which menu had set up 6. - Page 10 STAT(Sta 0-255* control) 0-255* 0-255* 0-255* SHUT 0-255* NONE,R,G,B,W,RGW,RGB,YELL OW,PINK,CYAN,ORANGE,VIOL PRSC(Preset color) ET,GOLDEN,2700K,3200K,4000K ,5500K,6500K,RGBW * SET(Set) CAL(Calibration) R(Red) 0-255 G(Green) 0-255 B(Blue) 0-255 0-255 YES/NO CHMD(Channel 10CH mode) LIN(linear)/SQR(square law)/ISQR(inverse square DIM(Dimming law)/SCUR(S-curve)/LIN.(linear mode) smooth)/SQR.(square law smooth)/ISQR.(inverse square law smooth)/SCUR.(S-curve smooth) DISY(Display set) ON(Permanent on) 2MIN (2 minutes off)
- Page 11 CT10 AUTO(A AT01 RUN..* uto) AT02 RUN..* AT03 RUN..* AT04 RUN..* AT05 RUN..* ATSP(Auto speed) 0-255(S) CHS1 RUN..* CHS2 RUN..* CHS3 RUN..* PROG （ Progra CHS1 （ Chase 1 ） SC01 （ Scene 1 ） R(Red) 0-255 m ） G(Green) 0-255 B(Blue) 0-255...
-
Page 12: Dmx Address Setting
When enter to the “*” position displayed on the LED, the light will automatically set as master and send data to external. Other fixtures can receive this data and will synchronously running without manually set as slave. When power cycle it will jump to the “*” position and running again. And in these position it will not return back to the default display after two minutes. -
Page 13: Dimming Mode Setting
6.5 DIMMING MODE SETTING 1) Press the【ENTER】button in【DIM】menu, then enter to the dimming mode setting. 2) Press the【UP/DOWN】button to select【LIN】，【SQR】，【ISQR】，【SCUR】，【LIN.】，【SQR. 】，【ISQR.】and【SCUR.】. 3) Press the【ENTER】button to escape and save. Illustrations：When setting【LIN.】，【SQR.】，【ISQR.】and 【SCUR.】 in 【DIM】 menu, there will be added a little delay dimming effect for smooth.. Dimming curve: Linear curve: square law curve:... -
Page 14: Auto Run, Self-Program Run
2) Press the 【UP/DOWN】 select 【CT01】…【CT10】 3) Press the 【UP/DOWN】 select 【R】…【W】 4) Press the【UP/DOWN】button to select【1-255】numerical value. 5) Press the【ENTER】button to escape and save. 6.9 AUTO RUN, SELF-PROGRAM RUN 1)Press the【ENTER】button in【AUTO】menu, then enter to the auto run,self-program run. 2)Press the【UP/DOWN】button to select【AT01】…【CHASE03】... -
Page 15: Lighting Setting Parameter Reset
3) 【POW】button is for the current information of power reduction. 4) 【TEM】Current temperature of lamp board. 6.12 LIGHTING SETTING PARAMETER RESET 1) Press the【ENTER】button in【ST L】menu, then enter to the lighting setting parameter reset. 2) Press the【UP/DOWN】button to select【YES】. 3) Press the【ENTER】button to escape and save. Illustrations：... -
Page 16: Xlr Cable Connecting
When the fixtures work in master mode it will send out the signal for the slave synchronous with it. To avoid the host signal and DMX512 signals interfere with each other, should cut off the DMX512 signals. The signal lines are longer than 60 meters (20 lamps), should increase a signal amplifier. -
Page 17: Trouble Shooting
Trouble Shooting PROBLEM REASON AND ACTION Check the power connection is correct or not. Please detect the voltage. Power supply is damaged or incorrect connected. Call a The lighting can’t be started normally qualified personnel to fix it. ...
