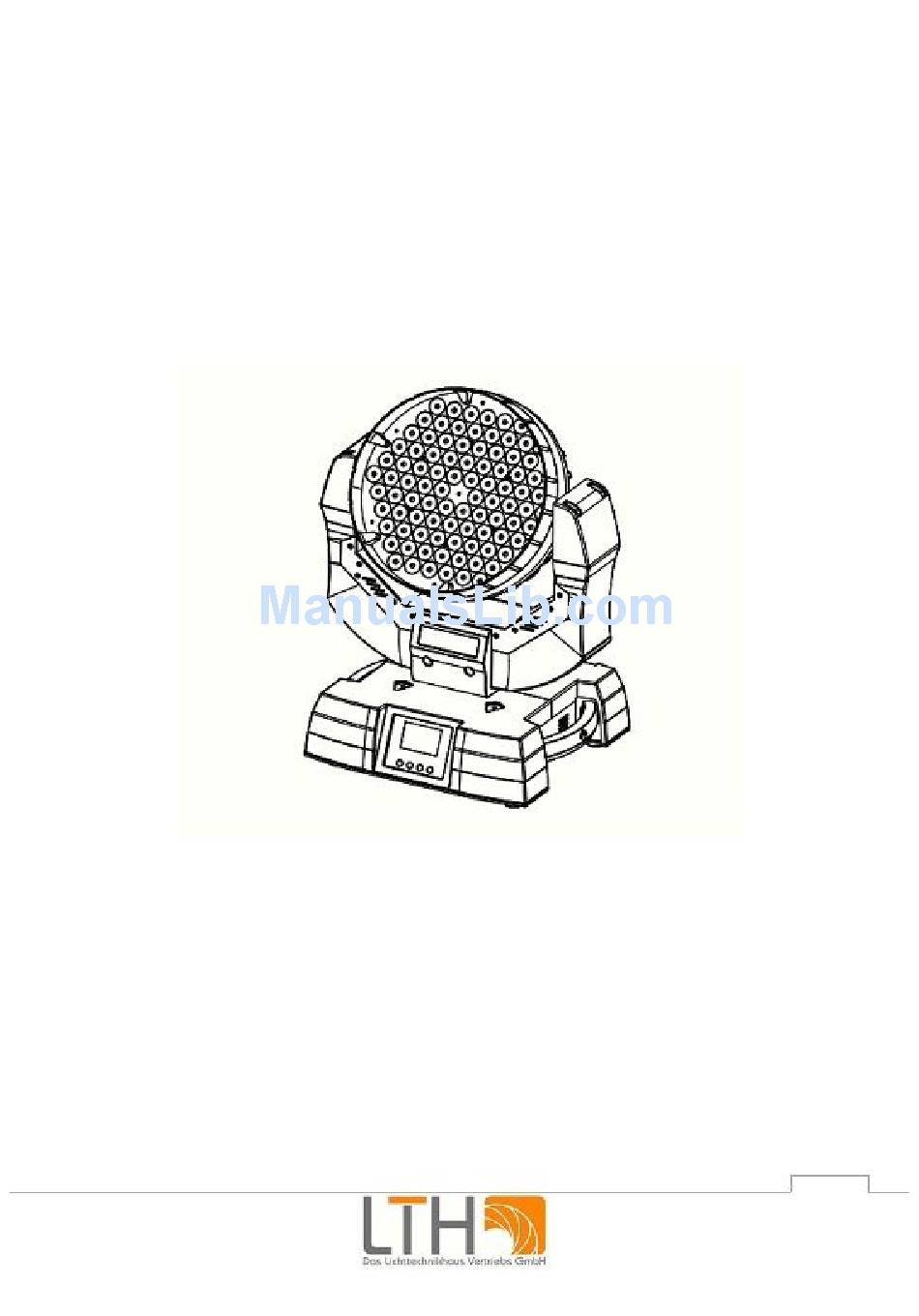

  • Page 1 Ambition 90 OWNERS MANUAL Ambition 90 RGB...

  • Page 2: Table Of Contents

    Ambition 90 Index Index 1. Description ………….……………………………………..3 1.1 Safety references ……………………………………….4 2. Preparation and installation ……………………..5 2.1 Assembly ……………………………………………….…..5 2.1.1 Assembly hanging ………………………………..2.1.2 Assembly horizontal ………………..…………. 7 2.2 Secure the headlight ……..…………….………..8 Connections..…………………………………….………..8 2.3.1 Current supply ….………………….……….…………8 2.3.2 DMX……………………………………………….……….8 3.
  • Page 3 Ambition 90 1. Description 1. Head 2. Handle 3. Base 4. LCD Display 5. DMX out (3 pin) 6. DMX in (3 pin) 7. Power On/Off 8. Power connection (Powercon) 9. Safety device (6 x 30 mm , 7A)
  • Page 4 Ambition 90 1.1 Safety references The ambition 90 is professional High carousing product. In order to make a smooth enterprise possible, it is to be considered necessarily the following references. The manufacturer of this headlight does not take over a warranty with inappropriate treatment. Any warranty claim expires when opening the housing.

  • Page 5: Preparation And Installation

    2. Preparation and installation Assembly The ambition 90 it can be operated in each position all the same whether hanging, standing or horizontal fastens. Keep a safety margin from 0,5m to inflammable materials Pay attention to the regulations of the CE-standard.

  • Page 6: 2.1.1 Assembly Hanging

    2 x fast lock 2.1.1 Assembly hanging In order to operate the ambition 90 in hanging position, a help Coupler should be used, which is fastened directly on the lower surface of the headlight, to be used. It can be fastened with a...
  • Page 7 Ambition 90 2.1.2 Assembly horizontal In order to operate the ambition 90 in horizontal position, you should use the Mounting bar. This is fastened with two Camlock catches. With two help-coup-learn can the headlight now to the Trussing be fastened. The Mounting bar permits to fasten it the headlight between two Trusses.

  • Page 8: Secure The Headlight

    Secure the headlight Independently of the position of the assembly, you must accomplish ambition 90 a security. But you must lead a Safety by the safeguard eyes on the lower surface to secure and the headlight at the Trussing. Make sure that the Safety can carry at least 10 times of the headlight.

  • Page 9: 3. Menu Guide

    They find the Display at the side of the arm. It permits to meet you all necessary attitudes ambition 90. With „the mode “keys arrive you into the main menue. There you can navigate keys with „the UP “and „down “. Press „the Enter “key over in the menu forward to arrive or their attitudes store.
  • Page 10 Ambition 90...

  • Page 11: Chart

    Ambition 90 4. DMX Chart Channel 1 - PAN Movement 8 bit Channel 2 - PAN Movement fine Channel 3 - TILT Movement 8 bit Channel 4 - TILT Movement fine Channel 5 - PAN/TILT Movement Speed 0-255 Speed Min-Max...
  • Page 12 Ambition 90 Channel 10 - Blue: 0-255 Blue (0 - Black, 255 -100%) Channel 11 - Strobe Shutter Open (no function) 1-95 Strobe from slow to fast 96-127 Shutter Open (no function) 128-159 Effect in sequences pulses 160-191 Shutter Open (no function) 192-223 Random Strobe from 0 - max.

  • Page 13: Maintenance And Cleaning

    5. Maintenance and cleaning The ambition 90 is a system with very small maintenance costs. Only necessarily the air of in and discharge openings is to be cleaned and if necessary. to clean the LED lenses. As a normal enterprise to ensure, it is absolutely necessarily to be regarded clean the headlight and by dust to keep dirt and nebula fluids far.

  • Page 14: Technical Specifications

    Ambition 90 6. Technical specifications 30 Led’s per color, wavelength co-ordinate for a maximum at color compatibility Optical System: Highly efficient gun sight suspension Reflected beam angle 15° (25° optional) Strobe Effect (1-10 Flashes per Second), Random Strobe, Pule Effect...
