PulseWorx TCM Installation Manual And Owner's Manual

FUNCTION
The TCM Telephone Control Module is a high quality plug-in
home automation controller that is capable of transmitting
UPB (Universal Powerline Bus) digital commands over the
existing power wiring to remotely turn on and off other UPB
devices whenever the telephone rings. The TCM can be freely
located anywhere a wall power outlet exists throughout the
home. Only limited additional wiring is required and no radio
frequency signals are used for communication.
FEATURES:
•
Senses a ring on two separate phone lines.
o Configure different actions to occur for a Line #1 ring
and a Line #2 ring.
•
Command lights to flash when a telephone rings.
•
Command a vacuum or appliance to turn off when a
telephone rings.
•
Ability to remotely enable/disable the telephone ring
sensing mechanism.
TYPICAL USES
The TCM is perfect for sensing telephone rings to trigger
actions such as:
•
Flash a light for the hearing impaired
•
Turn on path lights
•
Turn off a vacuum or appliance
IMPORTANT SAFETY INSTRUCTIONS
When using electrical products, basic safety precautions
should always be followed, including the following:
1. READ AND FOLLOW ALL SAFETY INSTRUCTIONS.
2. Keep away from water. If the product comes in contact
with water or other liquid, turn off the circuit breaker and
unplug the product immediately.
3. Never use products that have been dropped or damaged.
4. Do not use this product outdoors.
Model: TCM
Telephone Control Module
The Inventors Of:
5. Do not use this product for other than its intended purpose.
6. Do not cover this product with any material when in use.
7. To avoid any risk of fire, burns, personal injury or electric
shock, install this product out of the reach of small children.
8. This product uses grounded plugs and sockets to reduce the
risk of electric shock. These plugs and sockets fit only one
way. If they do not fit, consult an electrician.
9. SAVE THESE INSTRUCTIONS.
INSTALLATION
The TCM is designed for indoor use with standard telephone
equipment. To install the TCM module:
1. Locate any free grounded wall outlet throughout the home.

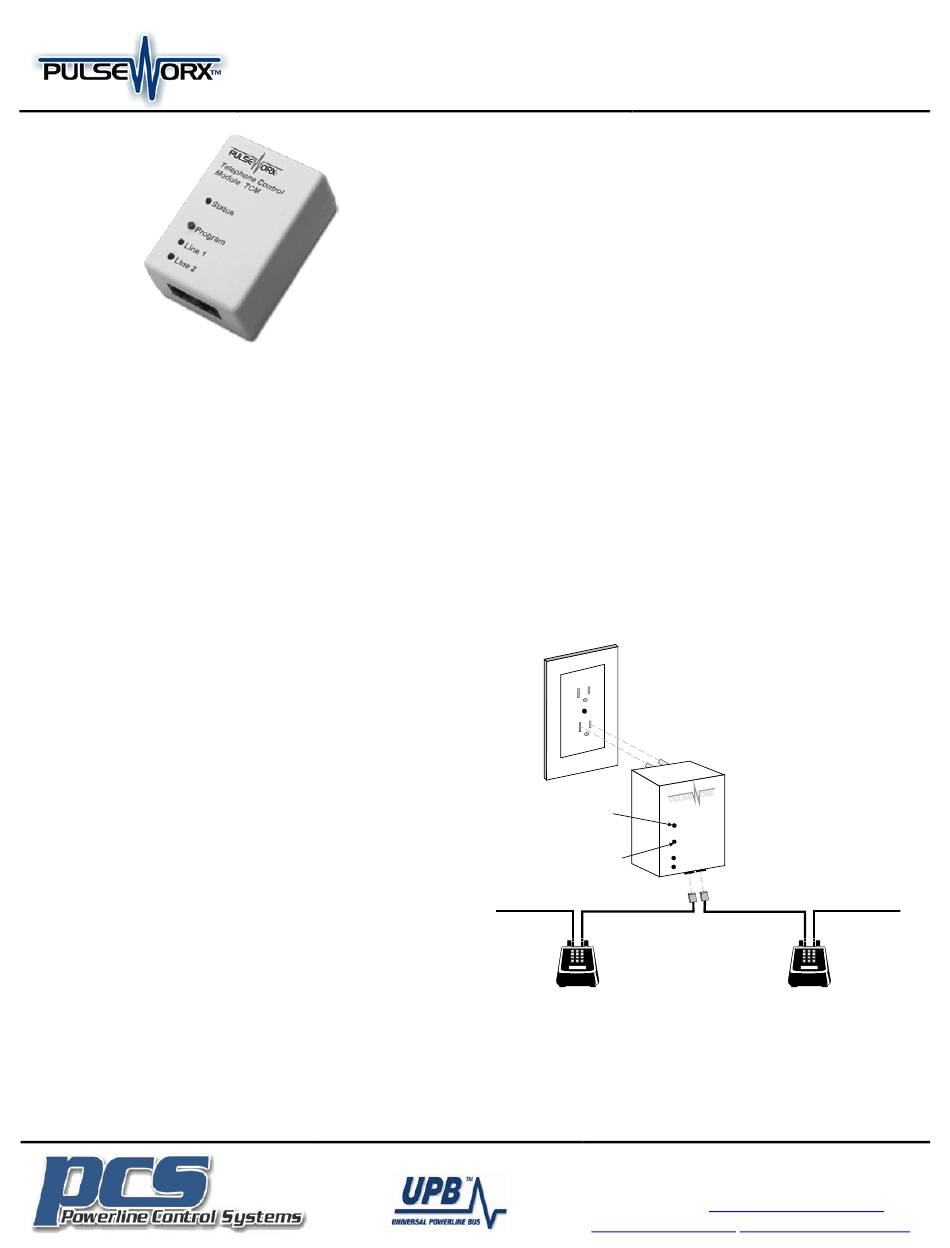

2. Plug phone Line #1 into the left hand phone jack (see
illustration).
3. If you have a second phone line then you can plug phone
Line #2 into the right hand phone jack (see illustration).
4. Plug the TCM into the wall outlet (see illustration).
5. Optionally, the TCM can be secured to the wall outlet by
screwing the wall plate center screw through the TCM's tab
hole.
Wall
Outlet
Status
LED
Program
Button
Telephone
Line #1
19215 Parthenia St. Suite D
Northridge, CA 91324
P: 818-701-9831
www.pcslighting.com https://pcswebstore.com
Installation Guide and
Owner's Manual
Telephone
Line #2
(optional)
