PulseWorx KPLD7 Installation Manual And Owner's Manual

FUNCTION
The Keypad Load Controller Series are an all in one Keypad
Controller and Light Dimmer/Relay in a single package. They are
able to transmit and receive UPB® (Universal Powerline Bus)
digital commands over the existing power wiring to remotely
turn on, off, and dim other UPB load control devices. No
additional wiring is required and no radio frequency signals are
used for communication.
Models
The KPL is available in two different models: The KPLD Dimmer
has a built in dimmer rated at 400W and the KPLR Relay is the
relay version able to handle 8 Amps. Both can be mounted in
any wall box that contains neutral, line, load and ground wires.
Available colors are White, Black, and Light Almond.
Engraved Buttons
The KPL's have white backlit buttons engraved with the
designations of: Scene 1, Scene 2, Scene 3, Scene 4, Off, and
an Up Arrow and Down Arrow. Custom Engraved buttons
(model CEB) are available enabling you to tailor each button for
its particular use. Consult your dealer or our website
(www.pcslighting.com) for CEB ordering information.
IMPORTANT SAFETY INSTRUCTIONS
When using electrical products, basic safety precautions should
always be followed, including the following:
1. READ AND FOLLOW ALL SAFETY INSTRUCTIONS.
2. Keep away from water. If the product comes in contact
with water or other liquid, turn off the circuit breaker and
unplug the product immediately.
3. Never use products that have been dropped or damaged.
4. Do not use this product outdoors.
5. Do not use this product for other than its intended
purpose.
Models: KPLD7/KPLR7
Keypad Load Controllers
The Inventors Of:
Installation Guide and
6. Do not cover this product with any material when in use.
7. This product uses polarized plugs and sockets (one blade is
larger than the other) to reduce the risk of electric shock.
These plugs and sockets fit only one way. If they do not fit,
consult an electrician.
8. SAVE THESE INSTRUCTIONS.
INSTALLATION
The Keypad Load Controllers are designed for indoor use. To install
the KPL module in a wallbox follow these instructions:
1. Before installing the KPL into a wall box, ensure that power
to the wall box has been disconnected by removing the fuse
or turning the circuit breaker off. Installing products while
the power is on may expose you to dangerous voltage and
may damage the product.
2. Remove any existing wall plate and device from the wall box.

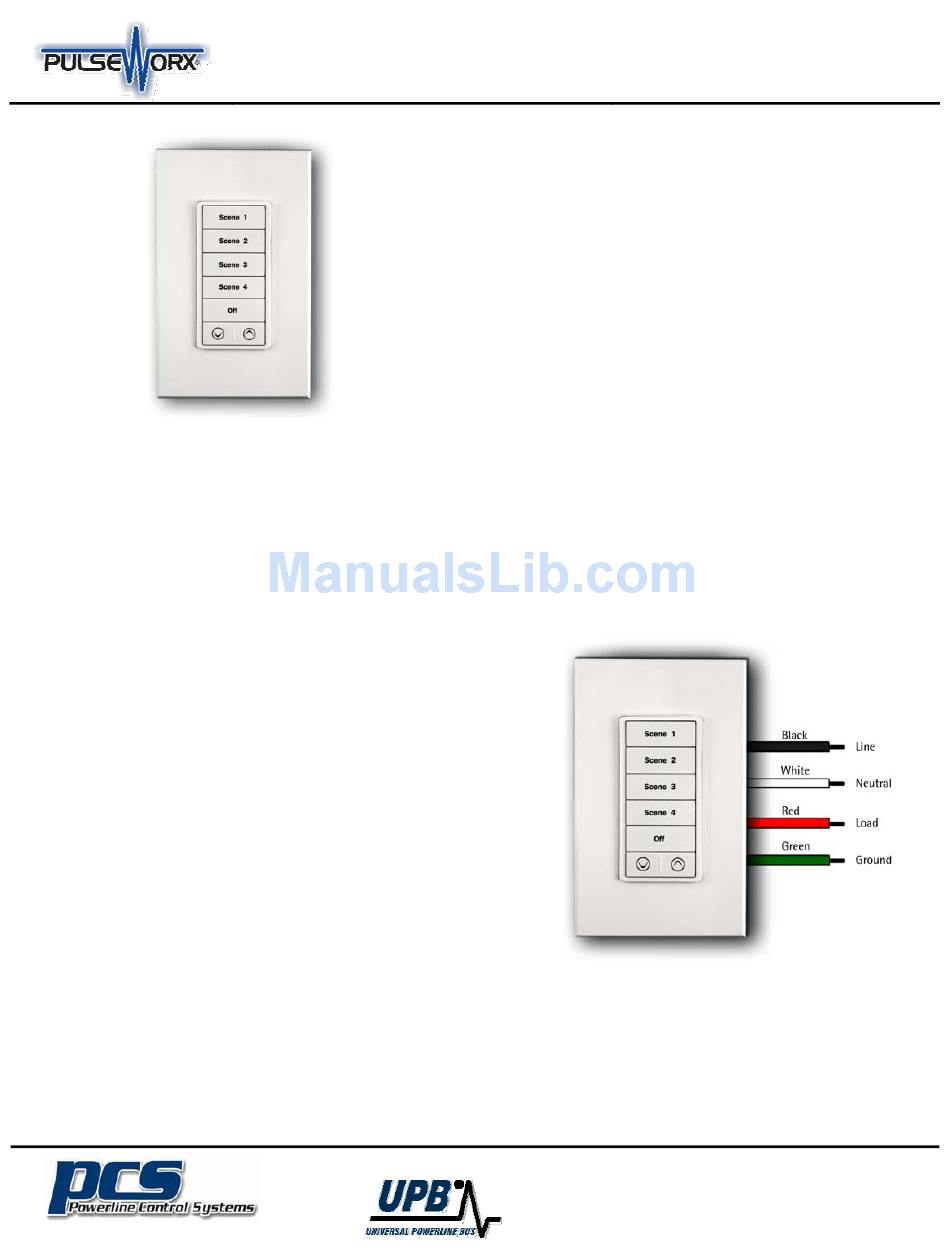

3. Use wire nuts to securely connect the KPL's white wire to the
"Neutral" wire, the KPL's black wire to the "Line" wire and the
red wire to the "Load" wire (see illustration below).
4. Fit the KPL into the wall box and secure with mounting
screws. Install the wall plate.
5. Restore power at the circuit breaker.
19201 Parthenia St. Suite J
Northridge, CA 91324
P: 818.701.9831 F: 818.701.1506
pcssales@pcslighting.com www.pcslighting.com
Owner's Manual
