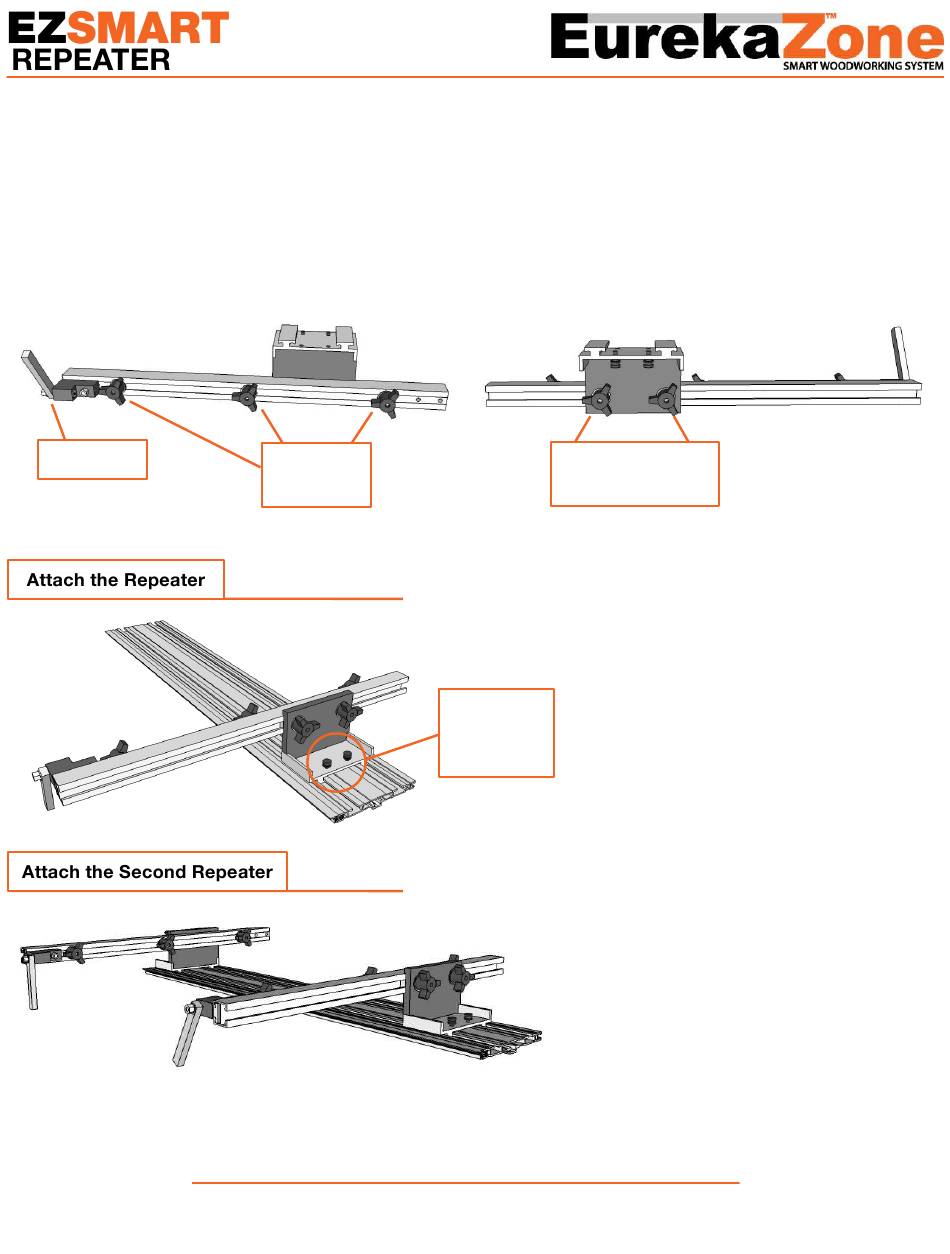

Eurekazone EZ SMART Repeater Manual

The EZ SMART Repeater is useful for setting up for repeatable cross-cuts and rip-cuts, eliminating the need for
repeated use of a measuring tape. It is often used in conjunction the EZ SMART Smart Square, as part of the
EZ SMART Cabinetmaker Woodworking System. However, the Smart Square is not completely necessary for its
functioning. Used with a section of EZ SMART Guide Rail, the Repeater serves a dual role as a story stick and
as a stop for precise cuts. If a single Repeater is used without the Smart Square, it is recommended to clamp
the Guide Rail to the work surface using optional EZ SMART Wood Clamps to hold the Guide Rail to the cut-
line. Using a second Repeater (sold separately) allows the Guide Rail to be used without clamping to make
square cuts.
Flip Stop
Phone (352) 620-2262 Fax (352) 620-2576
Page 1
Extension
Knobs
Eurekazone, LLC 1904 NE Jacksonville Rd Ocala, FL 34470
Arm Adjustment
Knobs
Install the Repeater so that arm is
located on cutting side of the Guide Rail
Tighten
small
knobs
The second Repeater is installed so that
the Repeater arm is on the same side of
the Guide Rail as the first Repeater arm.
