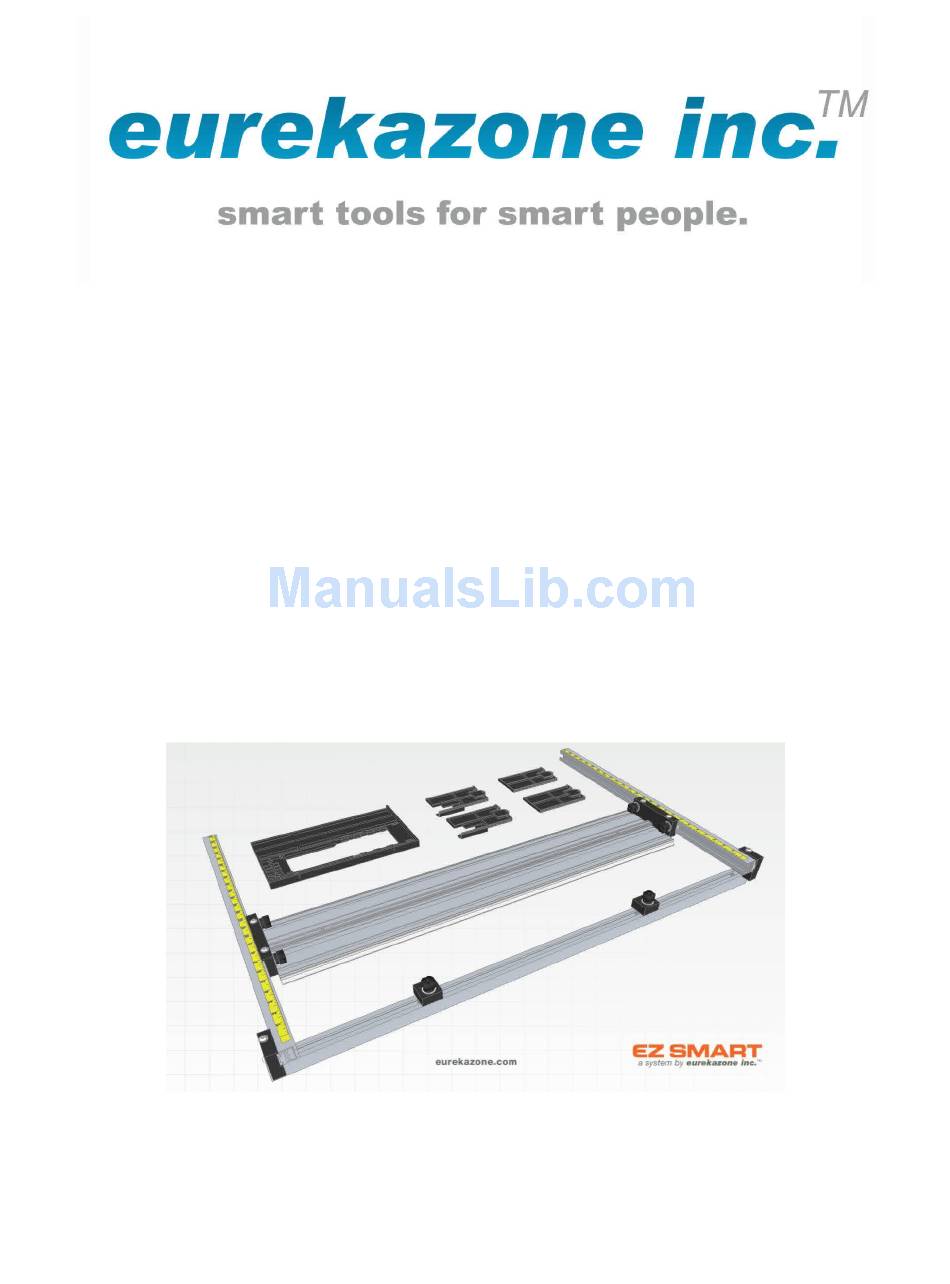

Page 1: Assembly Instructions
EZ RipSizer 25” SKU: ripsizer25 Assembly Instructions User's Manual Copyright © 2011 Eurekazone Inc. - Page 2 It is advised to wear hearing and eye protection during all cutting procedures. For updates to the EZ RipSizer and all other Eurekazone products be sure to visit the Eurekazone website (www.eurekazone.com) or the Track Saw Forum...
- Page 3 Parts and Inventory PART # PART NAME 28” Support Arms 42” Fence 36” Smart Rail w/ Edge Anti-Chip (EAC) Inserts Rail Support Brackets Fence Support Brackets Stabilizers (one disassembled to show components) 48” L-R Self-Adhesive Measuring Tape 48” R-L Self-Adhesive Measuring Tape Allen Wrench (Not Pictured) Assembly Manual (Not Pictured) Smart Base (Not Pictured)
- Page 4 Assembly Note: Trim EAC (Edge Ant-Chip insert) prior to assembly to ensure proper zero- clearance functioning and to avoid causing damage to the EAC. Instructions for trimming the EAC can be found in the back of this manual under Appendix 2. STEP 1: Attaching Rail Support Bracket to the Smart Rail Turn Smart Rail upside down.
- Page 5 STEP 3: Installing Support Arms on Rail Support Brackets Slide Support Arms onto Rail Support Bracket at one end of the Smart Rail. Turn adjustment knobs on Rail Support Bracket but do not fully tighten. Repeat for other end of the Smart Rail. STEP 4: Installing Fence Slide one end of the Fence into the Fence Support Bracket.
- Page 6 Note: The direction of the tape (L-R or R-L) is not important. Which tape is applied to a particular Support Arm is up to individual preference for personal ease of reading. The tape can be trimmed once set up is complete.
- Page 7 Calibration & Use The Rip Sizer can be calibrated a few ways depending on user preference for location of “keeper” piece, material being cut, and saw being used. The following instructions are for right blade saws. These instructions are not all inclusive and calibration procedures can be modified.
-
Page 8: Making The Cut
VERSION 2: Fence on Outside of Blade (Cutting range: 0-19 ½”) 1. Align near edge of Rail Support Bracket at the 0” mark. Tighten knobs. 2. Move Stabilizers (if already installed in Fence) to the center of the Fence. Once calibration is complete the Stabilizers will be moved back to 12”... - Page 9 Appendix 1: Installing the Smart Base Note: Keep power cord unplugged throughout this process. STEP 1: Installing the Smart Base 1. Before the test fit, the saw blade must be squared to the saw base. 2. Place the Smart Base on the inside track and the saw on the Smart Base for a test fit. The goal is to make sure the blade will be able to trim 1/64”...
- Page 10 Appendix 2: Trimming the Inserts TRIMMING THE EDGES (EACs) 1. Tape the edges to a piece of scrap wood and lower the blade 1/16” below the wood. 2. Lock the blade using the depth control knob, pulg in the cord, and make your first cut. Cut only has to be 1/16”...
- Page 11 TRIMMING THE AC-1 Note: The AC-1 insert is not used with the RipSizer. The AC-1 insert is used for 1) freehand cuts, 2) to obtain more depth of cut using the track as an edge guide, and 3) to obtain chip-free cuts using any straight edge.
