ALZO SPARKS LIGHT User Manual

Slide the battery compartment cover down as indicated by
the arrow on the cover. The cover will open and swing up
on its hinge. Install the batteries with the + battery top in
the rear of the compartment, – battery top in front as
shown. Close the lid and slide it up to close.
A fully charged battery set will provide more than 100
flashes. Do not let the batteries run down completely as
low battery power will slow down recycle time and could
affect the light output of the ALZO Sparks Light.
Power ON the ALZO Sparks Light
Press the "PUSH ON" button for 1 second to power up the
Sparks Light. This button/indicator will glow green when
power is switched on. If the ALZO Sparks Light is not used for several
minutes, the "PUSH ON" power indicator will go off and will "auto start" when
the light is used.
After the "PUSH ON" power indicator light glows green, the ALZO Sparks
Light will take about 10 seconds to fully charge. The "READY/TEST" button
will flash orange when the ALZO Sparks Light is charged and ready for use.
Pressing the "READY/TEST" button will test flash the light and recycle the
power.

Assuring a full charge

The "READY/TEST" button will flash rapidly when the ALZO Sparks Light is
fully charged. As the Sparks light looses charge the "READY/TEST"
indicator blinking will slow down. If the "READY/TEST" button blinking slows
or stops flashing, this indicates that the ALZO Sparks Light charge is too low
and although it will flash, the intensity will be diminished. Press the "PUSH
ON" button for 1 second to recharge. The ALZO Sparks Light will hold a full
charge for several minutes. Alternatively you could press the "READY/TEST"
button to discharge and recharge the ALZO Sparks Light, although this will consume more battery
power.
When photographing with the ALZO Sparks Light, you must wait for a full recharge cycle between shots
(about 10 seconds). Do not photograph if the "READY/TEST" is blinking slowly or off completely.
AKCES MEDIA LLC
Email -
ALZO SPARKS LIGHT USERS GUIDE

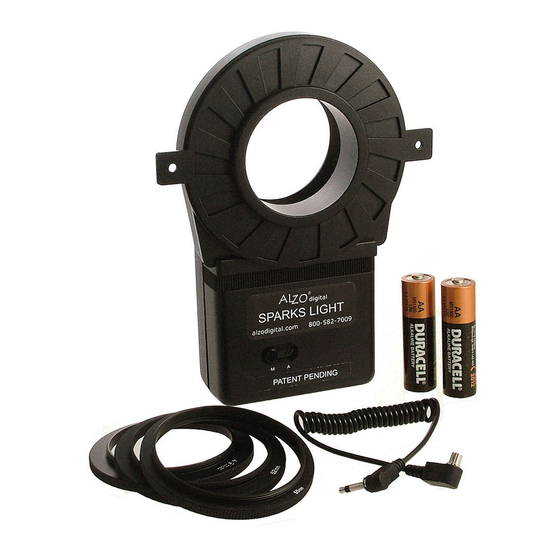

The ALZO Sparks Light is a specialized light source specifically designed to
illuminate the interior of gemstones, to enhance the spectral qualities
(brilliance), and to allow these qualities to be photographed. Diamonds are the
best subjects for an ALZO Sparks Light but other stones will respond with
interesting effects as well.
Installing batteries in the ALZO Sparks Light
The ALZO Sparks Light is powered by 2 - AA batteries (2 are included) and
we recommend using 2 sets of 2300 mah Ni-Mh rechargeable batteries.
76 Stony Hill Rd, Bethel, CT 06801
csupport@alzodigital.com
800-582-7009
http://alzodigital.com
1420-IS
