2/29/2016
ALZO 600 ASSEMBLY & USER GUIDE
Included in a single ALZO 600 Cool Lite kit::

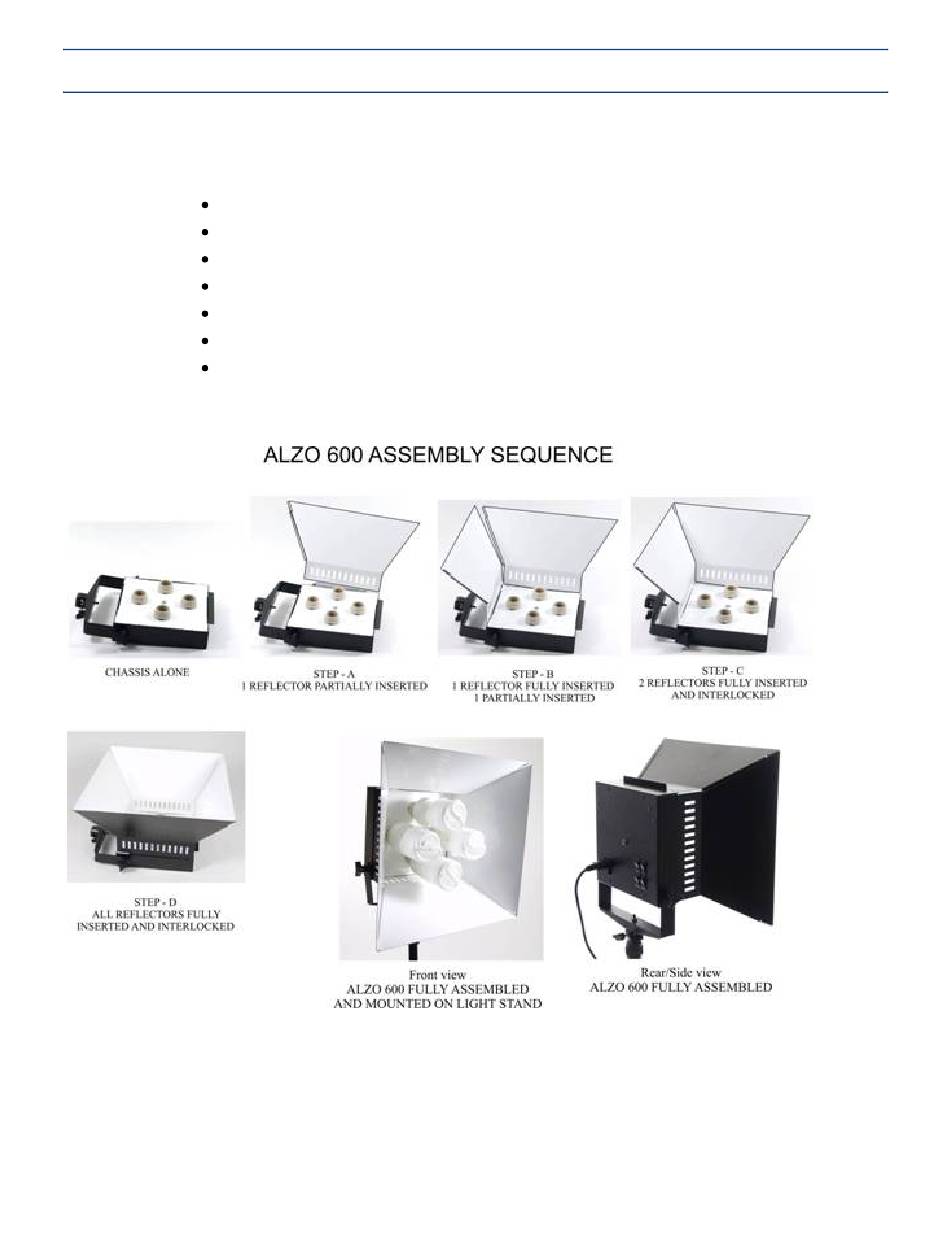

The reflectors are inserted as shown above and
interlocked.
After the reflectors are inserted in the chassis the light
should be placed on a light stand with legs in a fully open
stable position. Tighten the light stand tripod base wing
screw securely. The height of the stand should be
adjusted to a shoulder height or lower position.
http://www.alzodigital.com/customer_support/assy_alzo_600_user_guidespotify.htm
1 Light Chassis
4 Reflectors
4 5500K daylight compact fluorescent bulbs 45 WATTs each
1 Power Cord
1 Mounting Bracket (attached to chassis)
1 ALZO Aluminum Light Stand ? 10? max. height
1 Fabric diffuser (removable/optional)
ALZO 600 Assembly & User Guide
1/3
Advertisement
Table of Contents
Related Manuals for ALZO 600
Summary of Contents for ALZO 600
- Page 1 2/29/2016 ALZO 600 Assembly & User Guide ALZO 600 ASSEMBLY & USER GUIDE Included in a single ALZO 600 Cool Lite kit:: 1 Light Chassis 4 Reflectors 4 5500K daylight compact fluorescent bulbs 45 WATTs each 1 Power Cord 1 Mounting Bracket (attached to chassis) 1 ALZO Aluminum Light Stand ? 10? max. height 1 Fabric diffuser (removable/optional) The reflectors are inserted as shown above and interlocked. After the reflectors are inserted in the chassis the light should be placed on a light stand with legs in a fully open stable position. Tighten the light stand tripod base wing screw securely. The height of the stand should be adjusted to a shoulder height or lower position. http://www.alzodigital.com/customer_support/assy_alzo_600_user_guidespotify.htm...
- Page 2 2/29/2016 ALZO 600 Assembly & User Guide The light head should be mounted on the light stand by inserting the stand mount into the mounting bracket as shown on the right. Tighten the wing nut screw on the mounting bracket to secure the light to the stand. The tilt adjustment is controlled by slowly turning the two side wing screws counterclockwise to loosen while holding the top of the light to prevent it from falling. Rotate the light head while holding the top of the fixture and then tighten one of the wing screws clockwise to lock the tilt of the light. Then tighten the other wing screw. Bulb Installation Do not over tighten the bulbs. Over tightening the bulbs can damage the bulb and the ALZO 600 light head. The ALZO 600 is supplied with four (4) 45 watt Photo Compact Fluorescent bulbs with a maximum Tungsten equivalent light output of 600 watts. Substituting other bulbs may void the warranty. Basic Operation Assure that all four light switches are turned off (i.e. rocker down). Now connect the power cord to the back of the light and then a 117volt 60HZ power source. Raise the light to a working height and adjust the tilt of the light head. Press the four power switches to the ON position for full power or any combination for lower power Intensity Adjustment The four bulbs in the ALZO 600 can be controlled independently. Optional Diffuser To soften shadows and insure proper disbursement of light from the ALZO 600, place the enclosed optional diffuser over the reflectors. To install the diffuser match the corners of the diffuser with the corners created by the reflectors and stretch the diffuser over the reflectors.
- Page 3 2/29/2016 ALZO 600 Assembly & User Guide must be at least four feet from subject to optimize the light from the umbrella. http://www.alzodigital.com/customer_support/assy_alzo_600_user_guidespotify.htm...
