Electrical Planning Guide
for Docking Drawer and Style Drawer Series Installations
General Information
Docking Drawer Charging Outlets have been listed
by ETL and they comply with UL 962a when installed
in accordance to outlet installation instructions.
Additionally, our Style Drawer Powering Outlets
have been listed by ETL and comply with UL 962a
when installed in accordance to the outlets installation
instructions. The following is a guide designed to
provide steps for roughing-in an electrical supply for
your Docking Drawer or Style Drawer Series outlet
installation. Please review the specific installation
instructions for each outlet. This information can be
found at www.dockingdrawer.com and it is also
included with our outlets.
All Powering Outlets come with a 20A, tamper proof,
GFCI protected outlet.

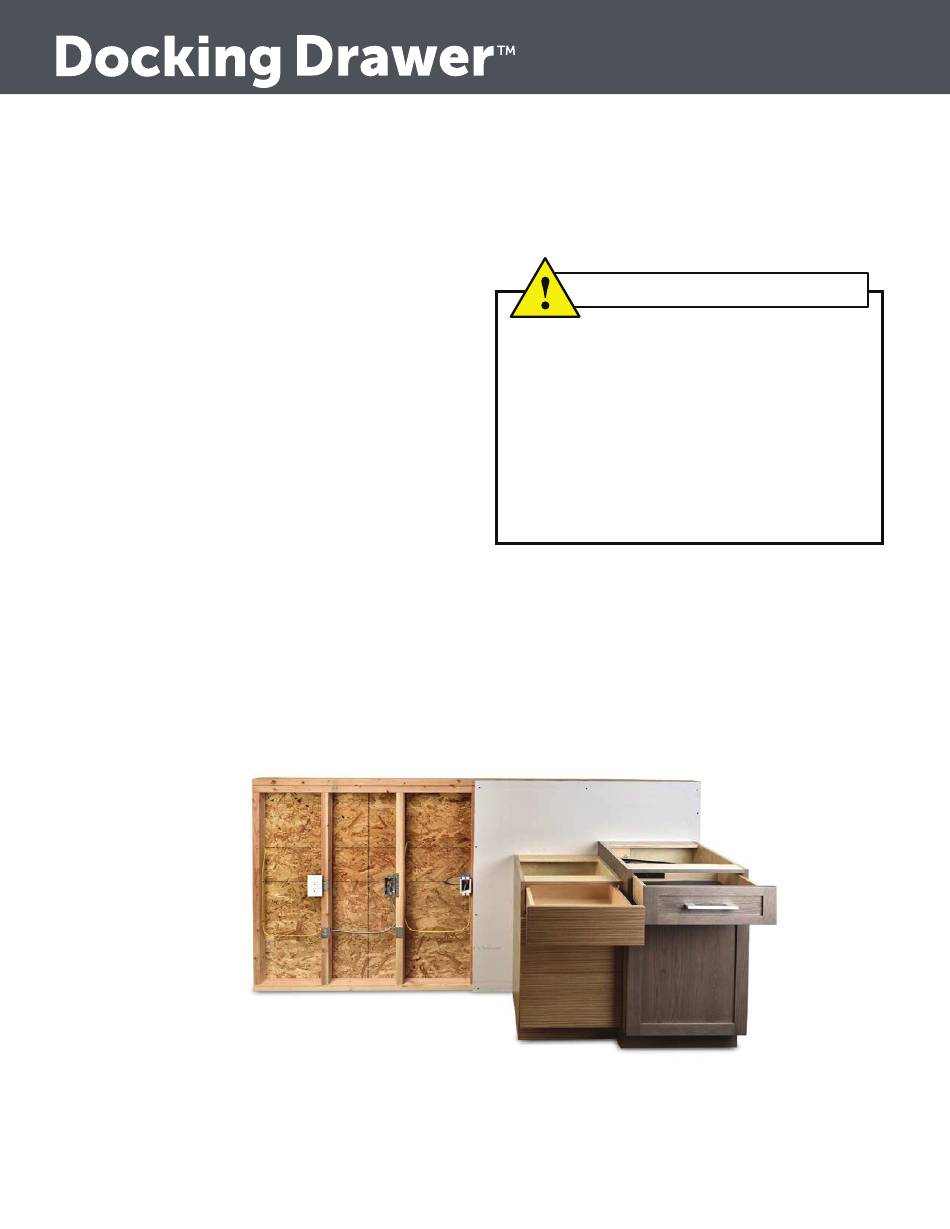

Pictured below is the Docking Drawer installation
wall. We use this in-house tool to illustrate electrical
connections for our customers.
CAUTION – READ CAREFULLY
A licensed electrician needs to supply all
electrical rough-ins to local building codes for
your Docking Drawer installation. Docking
Drawer outlets cannot be plugged into
dishwasher, disposal, instant hot water, or
trash compactor outlets. Remember that all
powering outlets require a 20 amp circuit. All
wiring inside of a cabinet must be MC Cable.
Advertisement
Related Manuals for Docking Drawer Docking Drawer Series
Summary of Contents for Docking Drawer Docking Drawer Series
- Page 1 Electrical Planning Guide for Docking Drawer and Style Drawer Series Installations General Information Docking Drawer Charging Outlets have been listed CAUTION – READ CAREFULLY by ETL and they comply with UL 962a when installed in accordance to outlet installation instructions.
- Page 2 0290-00078 (W) 4 USB 2 AC / 2GFCI 0290-00011 (W) 0290-00012 0290-00049 (W) DOCKING DRAWER PART NUMBER (S) SERIES 0290-00016 (W) 2 AC / 2 USB 0290-00015 (W) Would you rather consult with one of our installation experts about your project?
- Page 3 Docking Drawer Electrical Rough-in Techniques Roughing-in an electrical supply to provide power to your Docking Drawer charging or Style Drawer powering outlets is straightforward. This document will outline: • Where the source of power should enter the cabinet • 4 types of electrical rough-ins choices for open and closed wall installations 1.
- Page 4 FOR POWERING OUTLETS There are 2 options for bringing power into the There are 2 options for bringing power into the cabinet for a Docking Drawer installation. cabinet for a Style Drawer installation. Option 1: Flush Mounted Outlet Option 1: Flush Mounted Outlet...
- Page 5 Docking Drawer (Charging) or Style Drawer (Powering) outlet. Here are the 3 basic types of in-wall junction boxes that can be used to rough-in power to a Docking Drawer or Style Drawer outlet in open wall construction.
- Page 6 Docking Drawer (Charging) or Style Drawer (Powering) outlet. Here are the 3 basic types of in-wall junction boxes that can be used to rough-in power to a Docking Drawer or Style Drawer outlet in closed wall construction.
- Page 7 Electrical Planning Guide for Docking Drawer and Style Drawer Series Installations Would you rather consult with one of our installation experts about your project? We want to help! Call us at 1 (530) 205-3625. (530) 205-3625 12893 Alcosta Blvd, Suite M, San Ramon, CA94583 ...
