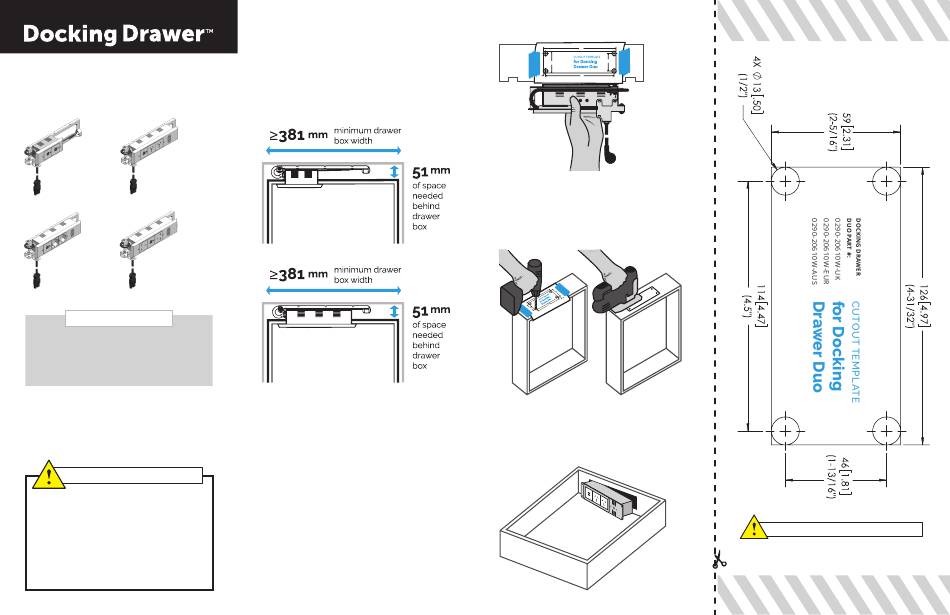

Docking Drawer Duo Series Installation Instructions

Docking Drawer Duo™ and
Style Drawer Trio™ Installation
Instructions
DOCKING DRAWER STYLE DRAWER TRIO
DUO PART #: PART #:
0290-20610W-UK 0290-20533W-AUS
0290-20610W-EUR
0290-20610W-AUS
STYLE DRAWER TRIO STYLE DRAWER TRIO
PART #: PART #:
0290-20533W-EUR 0290-20533W-UK
Time Required - 30 min
Tools Needed: • Screwdriver
• Jigsaw • Square
• Drill • Pencil
• Measuring Tape
• Cutout Template
Visit our Support Library at
support.dockingdrawer.com to find:
Detailed Mounting Diagrams to plan your installation,
DXF and STEP Files for importing into 2D and 3D layout
programs.
CAUTION – READ CAREFULLY
• Failure to follow these instructions can cause
death or permanent injury. Do not work on
live electrical circuits! Make absolutely certain
power is off before connecting the device!
• This product is for dry, indoor and permanent
installations only.
• Install the device in accordance with all
national and local electrical codes.

How to Install the Outlet

Step 1 -
Verify the drawer dimensions.
Docking Drawer Duo and Trio outlets require at
least 51mm behind the drawer box and at least
a 381mm wide drawer box.
DOCKING DRAWER DUO
STYLE DRAWER TRIO
Step 2 - Remove the cutout template and
flip to the side that corresponds with your
product's part number.
Step 3 - Locate the proper location for
the receptacle box cutout using our cutout
template. You can locate the proper location
from either the inside or backside of the
drawer box, making sure that the arms will
not interfere with the slides and that there is
enough material surrounding the receptacle
box to securely hold it in place.
Step 3 - cont.
Step 4 - With a 1/2" drill bit, drill a hole in
each corner, being careful not to splinter the
wood on the inside of the drawer box. Using
one of the 1/2" holes, insert a jigsaw and then
make the required cutouts in the drawer box.
Step 5 -
Reinstall the drawer box and slide
the Docking Drawer Duo or Trio receptacle
box through the cutout. Secure it with the 4
wood screws provided.
FOR ACCURACY SCALE PRINTER TO 100%
