12 CHANNEL PROGRAMMABLE LOOPER
1. Introduction
N-audio 12-channel programmable looper is a floor-based switching system for musicians.
This devise has 3 banks and each bank can store up to 12 presets, to a total of 36 independent
presets. In addition, this looper has a special Free mode which enables you to quickly and dynamically
modify the programmed presets. You can input up to 11 effects and two amp control circuits, with the
last 3 effects plugged in the send-return of the amplifier. All loop commutation circuits are based on
high-quality gold-plated relays. This gives you True bypass switching between effects while maintaining
the optimal sound of your guitar. If required, besides the standard passive guitar input, you can use the
additional buffered input, based on a high-quality low-noise opamp, working at 15VDC for maximum
headroom without any sound distortion.
12
Amp ctrl.2
6
INPUT
Buffered
TUNER
Passive
In
N-audio Custom Guitar Electronics
Handbuilt boutique pedals and custom stuff
Proudly handcrafted in Bulgaria, Europe
11
10
Amp ctrl.1
Fx3
5
4
N-AUDIO
12 CHANNEL
In
7
Out
To
Amp
Amp
send
1
Out
In
2
Out
In
User manual

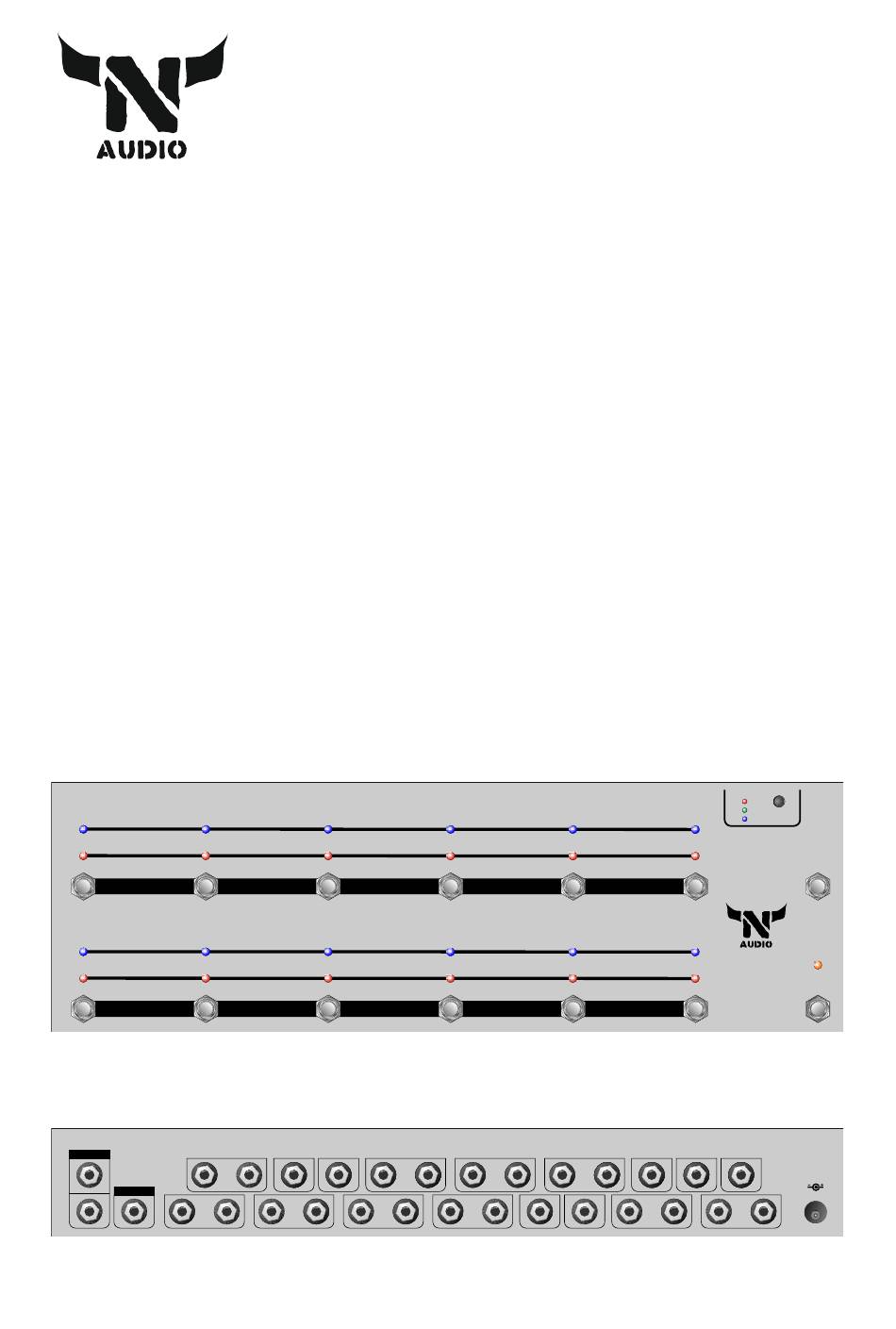

Top panel view
