Baumer UNDK 09G8914/KS35A/IO Quick Start Manual

Ultraschall-Sensoren
Ultrasonic sensors
Détecteurs à ultrasons
UNDK 09G8914/KS35A/IO
Näherungsschalter
Proximity sensor
Détecteur de proximité
IND. CONT. EQ
11013770
Baumer Electric AG · CH-8501 Frauenfeld
Phone +41 (0)52 728 1122 · Fax +41 (0)52 728 1144
Canada Italy
Baumer Inc. Baumer Italia S.r.l.
CA-Burlington, ON L7M 4B9 IT-20090 Assago, MI
Phone +1 (1)905 335-8444 Phone +39 (0)2 45 70 60 65
China Singapore
Baumer (China) Co., Ltd. Baumer (Singapore) Pte. Ltd.
CN-201612 Shanghai SG-339412 Singapore
Phone +86 (0)21 6768 7095 Phone +65 6396 4131
Denmark Sweden
Baumer A/S Baumer A/S
DK-8210 Aarhus V SE-56133 Huskvarna
Phone: +45 (0)8931 7611 Phone +46 (0)36 13 94 30
France Switzerland
Baumer SAS Baumer Electric AG
FR-74250 Fillinges CH-8501 Frauenfeld
Phone +33 (0)450 392 466 Phone +41 (0)52 728 1313
Germany United Kingdom
Baumer GmbH Baumer Ltd.
DE-61169 Friedberg GB-Watchfield, Swindon, SN6 8TZ
Phone +49 (0)6031 60 07 0 Phone +44 (0)1793 783 839
India USA
Baumer India Private Limited Baumer Ltd.
IN-411058 Pune US-Southington, CT 06489
Phone +91 20 66292400 Phone +1 (1)860 621-2121
www.baumer.com/worldwide
1/3

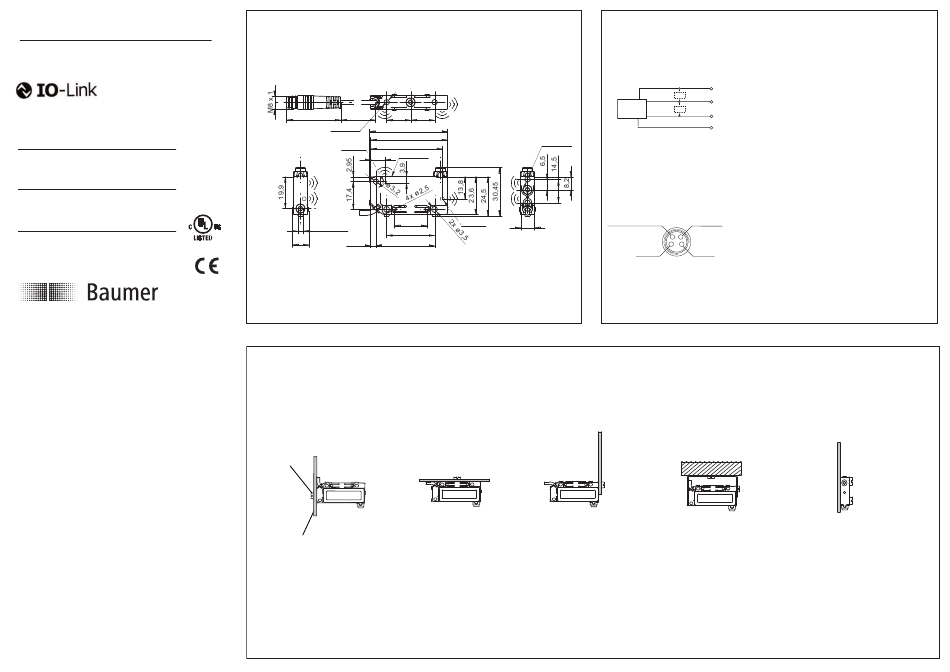

Abmessungen
Dimensions
Dimensions
c . a 3 4 L
2x ø 3,2
LED*
8,9
3x M3x5,8
10,2
3,25
1DD2
• Alle Masse in mm
• All dimensions in mm
• Toutes les dimensions en mm
Befestigungsarten
Fixing modes
Types de fixation
Screw M3
Machine support
• Alle Masse in mm
• All dimensions in mm
• Toutes les dimensions en mm
*LED visible from opposite only
15 15
48,8
48
2x ø 3,2
44,8
Teach-in
20,5 LED*
8,6
30
36,75
Elektrischer Anschluss
Connection diagrams
Schéma de raccordement
BN (1)
+V
S
Z
BK (4)
output
Push
(IO-Link)
Z
Pull
BU (3)
0 V
WH (2) control /
Teach-in
4 / Output/
2 / cont/Teach-In
Anschlussbelegung
IO-Link
Pin assignment
Raccordement
1 / +V 3 / 0 V
S
• Vor dem Anschliessen des Sensors die Anlage spannungsfrei schalten
• Disconnect power before connecting the sensor
• Mettre l'installation hors tension avant le raccordement du détecteur
BN = Braun/brown/brun
BK = Schwarz/black/noir
BU = Blau/blue/bleu
WH = Weiss/white/blanc
