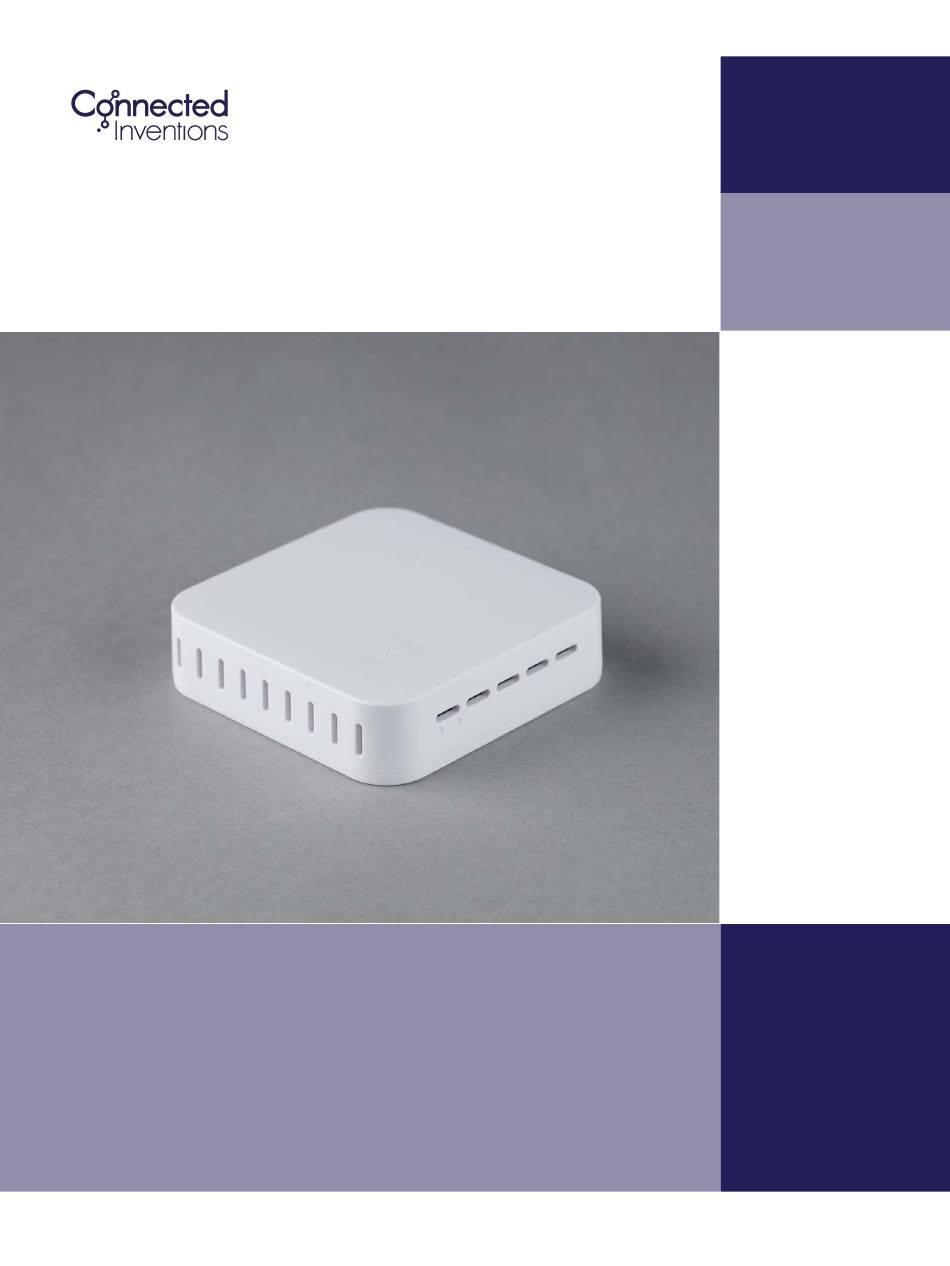

- Page 1 Connected AirWits IAQ User Manual Last updated July 2020 Connected AirWits IAQ is a connected total volatile AirWits IAQ organic compounds, temperature, and humidity R1.1 metering device for real and accurate air quality monitoring. www.connectedinventions.com...
-
Page 2: Table Of Contents
Contents Using this manual Read me first About the device Function Assembling and Installation Replacing batteries Uplink: Payload description Downlink Downlink: Payload Description Troubleshooting Technical Specification Appendix 1: Downlink Message... -
Page 3: Using This Manual
• The contents of this manual may differ from software provided by service providers or carriers, and are subject to change without prior notice. • Access the Connected Inventions website (www.connectedinventions.com) for the latest version of the manual. • Available features and additional services... - Page 4 • Applications on this device may perform differently from comparable applications and may not include all functions available (by ie. downlink messaging features) • Connected Inventions is not liable for performance issues caused by third-party applications or improper installation. • Please keep this manual for future reference.
-
Page 5: About The Device
About Connected Inventions AirWits IAQ is a wireless air quality metering device with ultra long battery life. This intelligent and small device measures and sends the TVOC, temperature and humidity data sequentially from 10 min to 24 hours using the world-wide Sigfox IoT-network connectivity for data transmission, enabling very low lifetime cost. -
Page 6: Function
Function The basic functionality procedure example: When the device is powered on, it will send the measurements and ask downlink message from the network. If the downlink message is configured and reconfigure bit is 1, new settings will be adopted. In case downlink message is not configured, the reconfigure bit is 0 or the downlink message cannot be read, the previous settings will remain. -
Page 7: Assembling And Installation
Assembly & Installation Save the identifier and the key of the device. The identifier and the PAC key are on the label on the bottom of the device. You can also read the identifier and the PAC key using the QR code. Switch the device on sliding the power switch to position ‘1’. - Page 8 Install the wall plate to the wall using screws suitable for the wall material. Please note the orientation! Attach the device to the wall having the pins meeting installation holes in the device. Please note the orientation! Please note! Avoid placing device closer than 15cm f r o m a n y m e t a l o r...
-
Page 9: Replacing Batteries
Replacing Batteries Please NOTE! The device uses battery pack proprietary made. If the battery is considered dead, please contact Connected Inventions support for the replacement. Do not try to replace the battery with other brands available as there is a great risk of breaking the device. The battery should last years so in case of no reception, first check the power is switched on and that the radio... - Page 10 Header Temperature Humidity 0x2C = 00101100Bin 0x026F = 623Dec -> 0x34 = 52Dec -> Full power = TRUE (623/10)-40 = 22,3 °C Active power control = On FW Version = 2 0x2C026F34005e010f00b5 Max. TVOC Avg. TVOC Min. TVOC 0x005e = 94Dec -> 0x010f = 271Dec ->...
-
Page 11: Downlink
Downlink The settings of the device can be updated with the downlink message • The device requests new settings every 50 messages You must be very careful when you update the settings • The settings affect both the subscription and the battery life of the device The downlink message is optional If the downlink message is not sent, the device continues with the current settings... -
Page 12: Troubleshooting
• Check the operation mode of the device. • Incorrect downlink configuration will affect the behaviour of the product. • Ensure the configuration is properly done. solutions@connectedinventions.com +358 103115800 Connected Inventions, Spektri Business Park, Kvintti Building, Metsänneidonkuja 12, 02130 Espoo, Finland. connectedfinland connected_fin connectedinventions www.connectedinventions.com... -
Page 13: Technical Specification
Technical Specification AirWits IAQ is a wireless IoT TVOC, temperature and humidity Description metering device. Size 100 x 100 x 27 mm 184 g Weight IP rating IP20 3xA 3.6 V LiSoCl2 Batteries 12000 mAh Battery capacity 5 years with 30 min measuring interval Battery life Sensirion SHTC3, Sensirion SGPC3, Sensors... -
Page 14: Appendix 1: Downlink Message
Appendix 1: Downlink message Interval / 210 8028000000000000 C028000000000000 Active Power Control Off Active Power Control On 215 8029000000000000 C029000000000000 10 8000000000000000 C000000000000000 220 802A000000000000 C02A000000000000 15 8001000000000000 C001000000000000 225 802B000000000000 C02B000000000000 20 8002000000000000 C002000000000000 230 802C000000000000 C02C000000000000 25 8003000000000000 C003000000000000 235 802D000000000000 C02D000000000000 30 8004000000000000 C004000000000000... - Page 15 420 8052000000000000 C052000000000000 650 8080000000000000 C080000000000000 425 8053000000000000 C053000000000000 655 8081000000000000 C081000000000000 430 8054000000000000 C054000000000000 660 8082000000000000 C082000000000000 435 8055000000000000 C055000000000000 665 8083000000000000 C083000000000000 440 8056000000000000 C056000000000000 670 8084000000000000 C084000000000000 445 8057000000000000 C057000000000000 675 8085000000000000 C085000000000000 450 8058000000000000 C058000000000000 680 8086000000000000 C086000000000000 455 8059000000000000 C059000000000000 685 8087000000000000 C087000000000000 460 805A000000000000 C05A000000000000...
- Page 16 880 80AE000000000000 C0AE000000000000 1110 80DC00000000000 C0DC000000000000 885 80AF000000000000 C0AF000000000000 1115 80DD00000000000 C0DD000000000000 890 80B0000000000000 C0B0000000000000 1120 80DE000000000000 C0DE000000000000 895 80B1000000000000 C0B1000000000000 1125 80DF000000000000 C0DF000000000000 900 80B2000000000000 C0B2000000000000 1130 80E0000000000000 C0E0000000000000 905 80B3000000000000 C0B3000000000000 1135 80E1000000000000 C0E1000000000000 910 80B4000000000000 C0B4000000000000 1140 80E2000000000000 C0E2000000000000 915 80B5000000000000 C0B5000000000000 1145 80E3000000000000 C0E3000000000000 920 80B6000000000000 C0B6000000000000...
