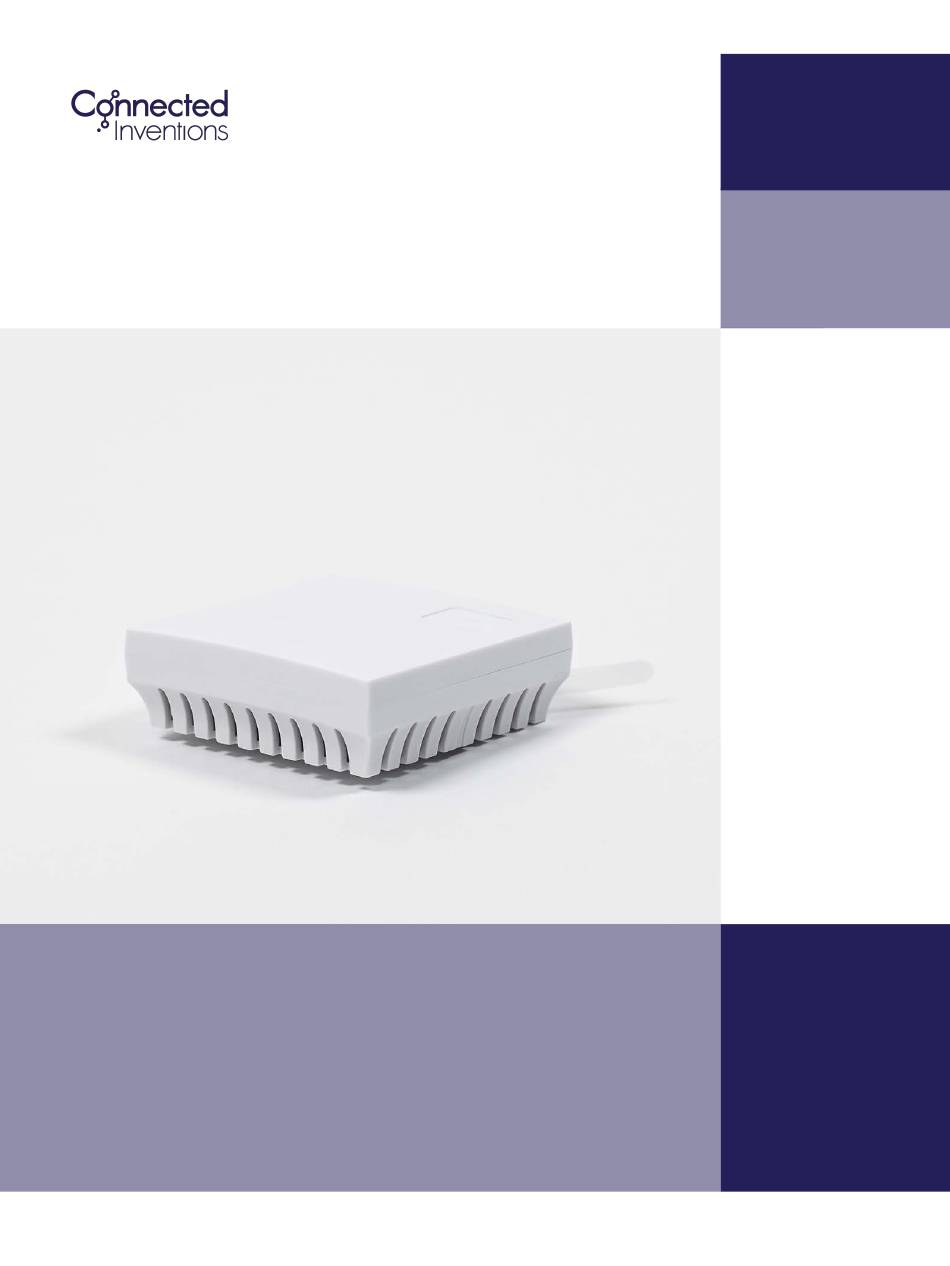

- Page 1 Connected AirWits User Manual Last updated July 2020 AirWits Connected AirWits is a wireless temperature R4.1 and humidity metering device. www.connectedinventions.com...
-
Page 2: Table Of Contents
Contents Using this manual Read me first About the device Function Assembling and Installation Replacing batteries Uplink: Payload description Downlink Downlink: Payload description Troubleshooting Technical specification Appendix 1. Downlink messages... -
Page 3: Using This Manual
• The contents of this manual may differ from software provided by service providers or carriers, and are subject to change without prior notice. • Access the Connected Inventions website (www.connectedinventions.com) for the latest version of the manual. • Available features and additional services... - Page 4 • Applications on this device may perform differently from comparable applications and may not include all functions available (by ie. downlink messaging features) • Connected Inventions is not liable for performance issues caused by third-party applications or improper installation. • Please keep this manual for future reference.
-
Page 5: About The Device
About Connected Inventions AirWits is a wireless temperature and humidity metering device with ultra long battery life. This intelligent and small device measures and sends the temperature and humidity data sequentially from 10 min to 24 hours using the world- wide Sigfox IoT-network connectivity for data transmission, enabling very low lifetime cost. -
Page 6: Function
Function The basic functionality procedure example: When the device is powered on, it will send the temperature and humidity measurements and ask downlink message from the network. If the downlink message is configured and reconfigure bit is 1, new settings will be adopted. In case downlink message is not configured, the reconfigure bit is 0 or the downlink message cannot be read, the previous settings will remain. -
Page 7: Assembling And Installation
Assembly & Installation Save the identifier and the key of the device. The identifier and the PAC key are on the label on the bottom of the device. You can also read the identifier and the PAC key using the QR code. - Page 8 If your device came with double-sided tape option: Remove any grease and dirt from the wall surface. The tape is very powerful so be careful when placing. After the device is placed, the b o n d i s v e r y s t r o n g . Removing the device by force might break the surface the device is attached to.
-
Page 9: Replacing Batteries
Replacing Battery • The device uses three (3) pieces of 3.6V, 2700mAh Lithium batteries. You can purchase the suitable replacement batteries from your dealer. Do not try to use other type of batteries. By Example, 1.5 alkaline batteries will not work. ... -
Page 10: Uplink: Payload Description
Uplink: Payload Description BYTE TYPE DESCRIPTION Reserved Boolean Full power mode. 1= TRUE, 0 = FALSE Boolean Active power control. 1= On, 0 = OFF Uint8 FW version 0-15 UInt16 (Value /10) - 40 = Temperature [°C] (Value /18) - 8 = Temperature [°F] Uint8 Humidity [%] Example... -
Page 11: Downlink
Downlink Settings of the device can be updated with the downlink message Device requests new settings approximately every 24 hours You must be very careful when you update the settings • settings affect both the subscription and the battery life of the device! Downlink message is optional •... -
Page 12: Downlink: Payload Description
Downlink: Payload Description BYTE TYPE DESCRIPTION Reserved, set to 0 Boolean Active power control. 1= On, 0 = Off Boolean DL Reconfigure enable 1= TRUE, 0 = FALSE Uint8 Update interval. 5 min * (n+2) → 10min … ~24h. Refer to Appendix 1. -
Page 13: Troubleshooting
• Check the operation mode of the device. • Incorrect downlink configuration will affect the behaviour of the product. • Ensure the configuration is properly done. solutions@connectedinventions.com +358 103115800 Connected Inventions, Spektri Business Park, Kvintti Building, Metsänneidonkuja 12, 02130 Espoo, Finland. connectedfinland connected_fin connectedinventions www.connectedinventions.com... -
Page 14: Technical Specification
Technical Specification Description AirWits is a wireless IoT temperature and humidity metering device. Size 80 x 80 x 27 mm Weight 110 g IP rating IP20 Batteries 3 x AA 3.6 V LiSoCl2 Battery capacity 8100mAh Battery life 5 years with 30 min measuring interval Sensors Sensirion SHT30 Environment... -
Page 15: Appendix 1. Downlink Messages
Appendix 1. Downlink messages table Interval / 200 8026000000000000 C02600000000000 Active Power Control On Active Power Control Off 205 8027000000000000 C02700000000000 10 8000000000000000 C00000000000000 210 8028000000000000 C02800000000000 15 8001000000000000 C00100000000000 215 8029000000000000 C02900000000000 20 8002000000000000 C00200000000000 220 802A000000000000 C02A00000000000 25 8003000000000000 C00300000000000 225 802B000000000000 C02B00000000000 30 8004000000000000 C00400000000000 230 802C000000000000 C02C00000000000... - Page 16 395 804D00000000000 C04D00000000000 625 807B000000000000 C07B00000000000 400 804E000000000000 C04E00000000000 630 807C000000000000 C07C00000000000 405 804F000000000000 C04F00000000000 635 807D00000000000 C07D00000000000 410 8050000000000000 C05000000000000 640 807E000000000000 C07E00000000000 415 8051000000000000 C05100000000000 645 807F000000000000 C07F00000000000 420 8052000000000000 C05200000000000 650 8080000000000000 C08000000000000 425 8053000000000000 C05300000000000 655 8081000000000000 C08100000000000 430 8054000000000000 C05400000000000 660 8082000000000000 C08200000000000 435 8055000000000000 C05500000000000...
- Page 17 855 80A9000000000000 C0A900000000000 1085 80D700000000000 C0D700000000000 860 80AA000000000000 C0AA00000000000 1090 80D800000000000 C0D800000000000 865 80AB000000000000 C0AB00000000000 1095 80D900000000000 C0D900000000000 870 80AC000000000000 C0AC00000000000 1100 80DA00000000000 C0DA00000000000 875 80AD00000000000 C0AD00000000000 1105 80DB00000000000 C0DB0000000000 880 80AE000000000000 C0AE00000000000 1110 80DC00000000000 C0DC0000000000 885 80AF000000000000 C0AF00000000000 1115 80DD00000000000 C0DD0000000000 890 80B0000000000000 C0B000000000000 1120 80DE000000000000 C0DE00000000000...
