Appendix E: PIP/PAP Mode Combinations

( RGB ): This indicates that, selection is possible only if Scart-1 has a RGB signal.
Restrictions : Scart-1 source must have RGB signal to perform PIP\PAP with sources TV, Scart-2,
FAV.
If these sources are set to main window, and Scart-1 does not have a RGB signal, Pip\Pap source
can not be switched to the Scart-1 source.
If scart-1 source is set to main window, and scart-1 does not have a RGB signal, Pip\Pap source
can not be switched to TV, Scart-2 and FAV sources.

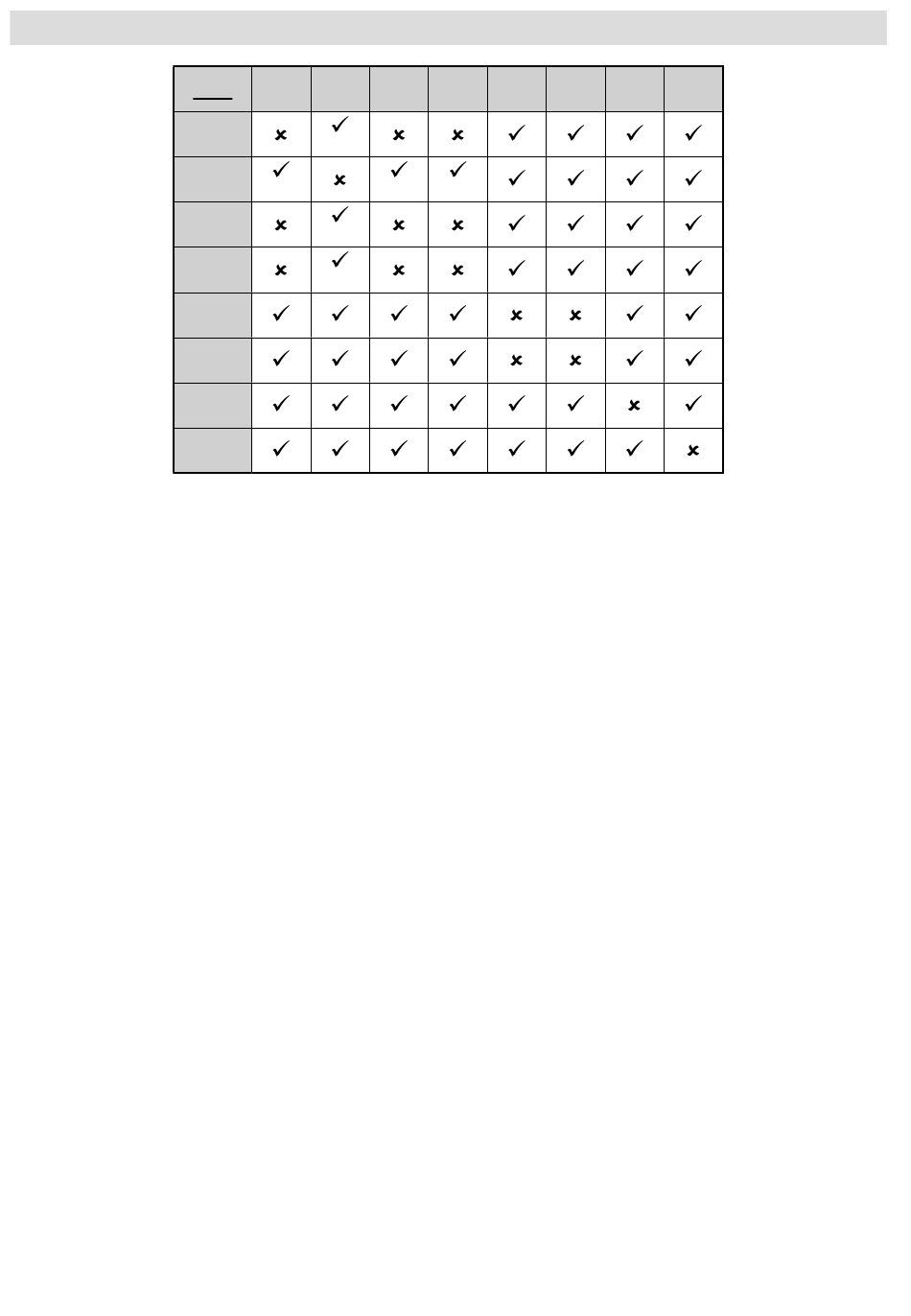

MAIN TV Scart1 Scart2
TV
(RGB)
Scart1
(RGB)
Scart2
(RGB)
FAV
(RGB)
HDMI1
HDMI2
YPbPr
PC-VGA
FAV HDMI1 HDMI2 YPbPr
(RGB) (RGB)
