TI00112R/09/EN/14.18
71404946
2018-05-31
Products
Technical Information

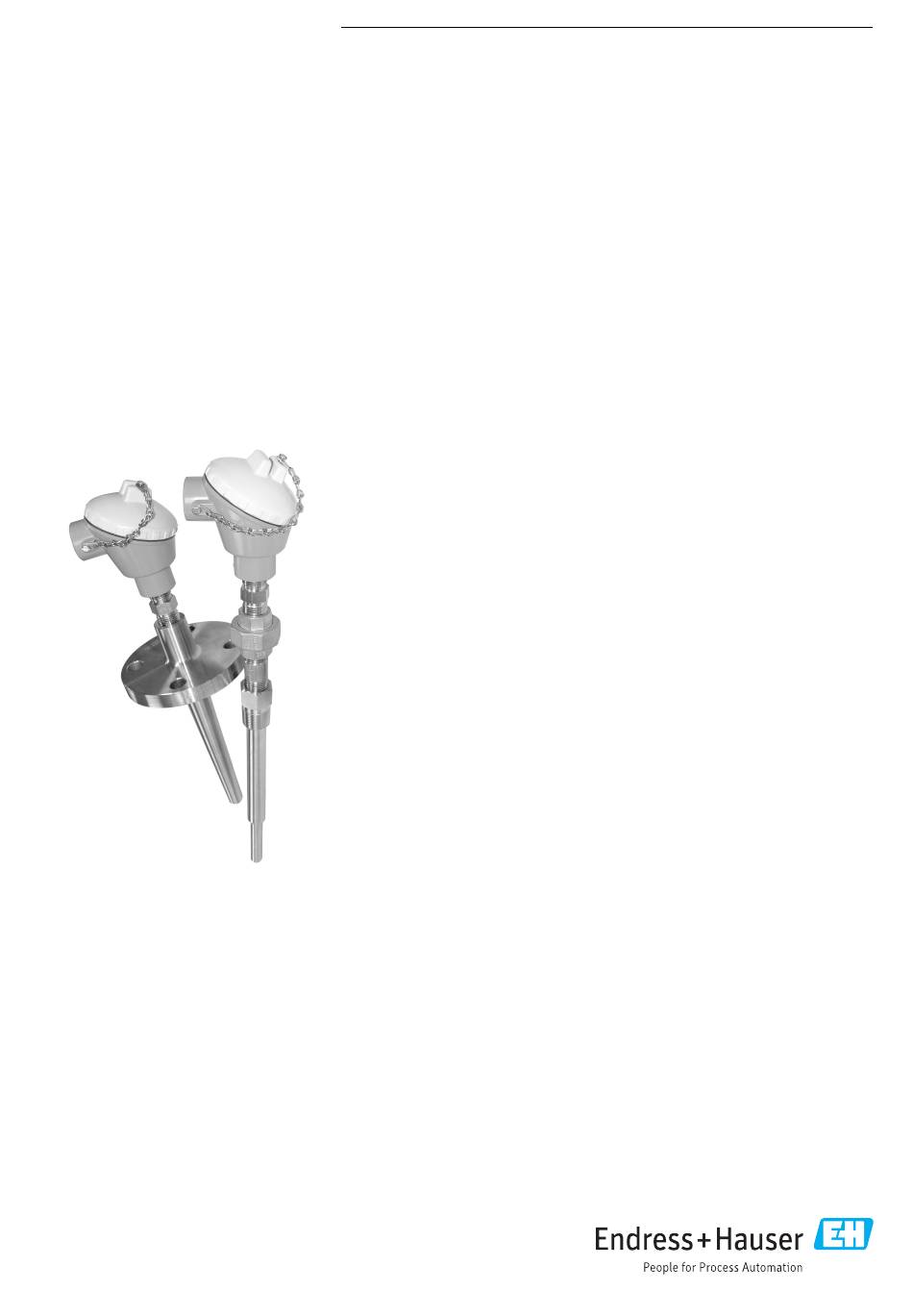

TH53, TH54 and TH55
Thermocouple assemblies in thermowells with
spring loaded insert and enclosure for process
industry
Application
The TH53, TH54 and TH55 temperature sensors are thermocouple assemblies
installed in thermowells and designed for use in all types of process industries,
including heavy industries, due to their rugged design. They are made up of a
magnesium oxide insulated thermocouple as a measurement probe and a thermowell
made of barstock material.
The sensor assemblies can be used in process industries such as:
• Chemicals
• Petrochemicals
• Power plants
• Refineries
• Offshore platforms
Head transmitter
All Endress+Hauser transmitters are available with enhanced accuracy and reliability
compared to directly wired sensors. Instead of directly wiring your temperature
sensors to your control system, use transmitters to reduce wiring and maintenance
costs while increasing measurement accuracy.
Field transmitter
Temperature field transmitters with HART® or FOUNDATION Fieldbus™ protocol for
highest reliability in harsh industrial environments. Backlit display with large
measured value, bargraph and fault condition indication for ease of reading.
Your benefits
• One source shopping for temperature measurement solutions. World class
transmitter with integrated sensor offering for heavy process industry applications.
• Remove and install straight out of the box!
• Improved galvanic isolation on most devices (2 kV).
• Simplified model structure: Competitively priced, offers great value. Easy to order
and reorder. A single model number includes sensor, thermowell and transmitter
assembly for a complete point solution.
• All iTEMP transmitters provide long-term stability ≤ 0.05% per year.
Solutions
Services
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Endress+Hauser TH53
Summary of Contents for Endress+Hauser TH53
- Page 1 Application The TH53, TH54 and TH55 temperature sensors are thermocouple assemblies installed in thermowells and designed for use in all types of process industries, including heavy industries, due to their rugged design. They are made up of a magnesium oxide insulated thermocouple as a measurement probe and a thermowell made of barstock material.
-
Page 2: Function And System Design
This data can serve as a basis to maximize savings potential and help in controlling operational costs on a daily basis. Endress+Hauser' s energy managers provide accurate and reliable calculations for the monitoring and control of energy consumption (both produced and consumed) according to international standards, e.g. - Page 3 Permanent high performance can only be achieved if dedicated and enthusiastic people provide their ideas. Endress+Hauser' s instruments are not only supposed to distinguish themselves for customers and users by technological novelties but also by the presence of people supporting this progress, be it in service, sales or production.
- Page 4 Conversion of various input signals into digital output signals. High accuracy over the complete ambient temperature range. All transmitters are released for use in all important process control systems. The integration tests are performed in Endress+Hauser' s "System World". For more information, see the Technical Information.
-
Page 5: Power Supply
TH53, TH54 and TH55 Power supply Terminal assignment Type of sensor connection Head transmitter mounted TMT18x (single input) 11.5...35 V 11.5...30 V Ex 4...20 mA A0026046 Head mounted transmitter TMT8x (dual input) Sensor Sensor Bus connection input 2 input 1... - Page 6 TH53, TH54 and TH55 Terminal block mounted Sensor 1 Sensor 2 A0026045-EN The blocks and transmitters are shown as they sit inside the heads in reference to the conduit opening. Integrated overvoltage protection The integrated overvoltage protection module can be ordered as an optional extra .
-
Page 7: Performance Characteristics
TH53, TH54 and TH55 Wire specifications Thermocouple grade, TFE insulated 20AWG, 7 strands with stripped ends Electrical connection Flying leads, standard 139.7 mm (5.5 in) for wiring in connection head, head mounted transmitter or terminal block mounted, and for wiring with TMT162 or TMT142 assemblies Design of leads Flying leads 139.7 mm (5.5 in) - Page 8 TH53, TH54 and TH55 Response time examples for thermocouples assemblies with thermowell TH53 and TH54 Construction Stepped thermowell Tapered thermowell ³⁄₄" straight thermowell Time 15 s 20 s 25 s Response times for thermocouple assemblies with thermowell are provided for general design guidance without transmitter.
-
Page 9: Installation Conditions
• Minimum immersion length per ASTM E644, ΔT ≤ 0.05 °C (0.09 °F): For temperature assemblies with thermowell (TH53 and TH54) the minimum immersion is the depth to which the thermowell is immersed in the medium, measured from the tip. To minimize... - Page 10 TH53, TH54 and TH55 Terminal head Temperature in °C (°F) With mounted head –20 to 70 °C (–4 to 158 °F) transmitter and display With mounted field • Without display: –40 to 85 °C (–40 to 185 °F) transmitter • With display and/or integrated overvoltage protection module: –40 to +80 °C (–40 to +176 °F)
-
Page 11: Mechanical Construction
Thermowell immersion length XA Immersion length thermocouple sensor Drill depth of thermowell Overall insert length For TH53 thermowells with ½" NPT and 1" process thread length and ¾" hex length dimensions, spring loaded sensor assemblies must be used with the thermowells. Endress+Hauser... - Page 12 TH53, TH54 and TH55 All thermowells are marked with a material ID, CRN (Canadian Registration Number) and heat number. Dimensions of TH53 E (nominal dimension) Process Shape of ⌀Q connection thermowell 63.5 mm (2.5 in) Material: Steel or 316 76.2 mm (3 in) or ½"...
- Page 13 TH53, TH54 and TH55 E (nominal dimension) Flange size ⌀Q, tapered version Immersion length thermocouple sensor = thermowell drilled X = A = U + 50.8 mm (2 in) + T length Overall insert length X = A + E...
- Page 14 Can be used to a limited extent up to 800 °C (1472 °F) for low compressive loads and in non-corrosive media. Please contact your Endress+Hauser sales team for further information. The process connection is the means of connecting the thermometer to the process. The following...
- Page 15 For ambient temperatures with head transmitter installed, see the ' E nvironment' section. As a special feature, Endress+Hauser offers terminal heads with optimized terminal accessibility for easy installation and maintenance. Some of the specifications listed below may not be available on this product line.
- Page 16 TH53, TH54 and TH55 TA30H with display window in cover Specification • Flameproof (XP) version, explosion-protected, captive screw 125 (4.92) cap, available with one or two cable entries • Degree of protection: IP 66/68, NEMA Type 4x Encl. Ex-version: IP 66/67 •...
- Page 17 TH53, TH54 and TH55 TU401 (TA30A style) Specification • Available with one or two cable entries 107.5 (4.23) • Protection class: IP66/68 (NEMA Type 4x encl.) • Temperature: –50 to +150 °C (–58 to +302 °F) without cable gland • Material: aluminum, polyester powder coated Seals: silicone •...
-
Page 18: Certificates And Approvals
Certificates and approvals CE Mark The device meets the legal requirements of the EC directives if applicable. Endress+Hauser confirms that the device has been successfully tested by applying the CE mark. Other standards and • IEC 60529: Degree of protection of housing (IP code) •... -
Page 19: Ordering Information
• Depending on the device: Direct input of measuring point-specific information such as measuring range or operating language • Automatic verification of exclusion criteria • Automatic creation of the order code and its breakdown in PDF or Excel output format • Ability to order directly in the Endress+Hauser Online Shop Endress+Hauser... - Page 20 TH53, TH54 and TH55 Accessories Various accessories, which can be ordered with the device or subsequently from Endress+Hauser, are available for the device. Detailed information on the order code in question is available from your local Endress+Hauser sales center or on the product page of the Endress+Hauser website: www.endress.com.
- Page 21 DeviceCare is the tool developed by Endress+Hauser for the configuration of Endress+Hauser devices. All smart devices in a plant can be configured via a point- to-point or point-to-bus connection. The user-friendly menus enable transparent and intuitive access to the field devices.
- Page 22 TH53, TH54 and TH55 Active barrier RN221N Active barrier with power supply for safe separation of 4 to 20 mA standard signal ® circuits. Has bidirectional HART transmission and optional HART® diagnostics if transmitters are connected with monitoring of 4 to 20 mA signal or HART® status byte analysis and an E+H-specific diagnostic command.
- Page 23 TH53, TH54 and TH55 Documentation Brief operating instructions - thermocouple assemblies • TH53 Thermocouple assembly in thermowell (KA00196R/24/EN) • TH54 (KA00197R/24/AE) • TH55 (KA00198R/24/AE) Technical information temperature transmitter iTEMP • HART® TMT82 (TI01010T/09/) • PROFIBUS PA TMT84 (TI00138R/09/) • FOUNDATION Fieldbus™ TMT85 (TI00134R/09/) •...
- Page 24 www.addresses.endress.com...
