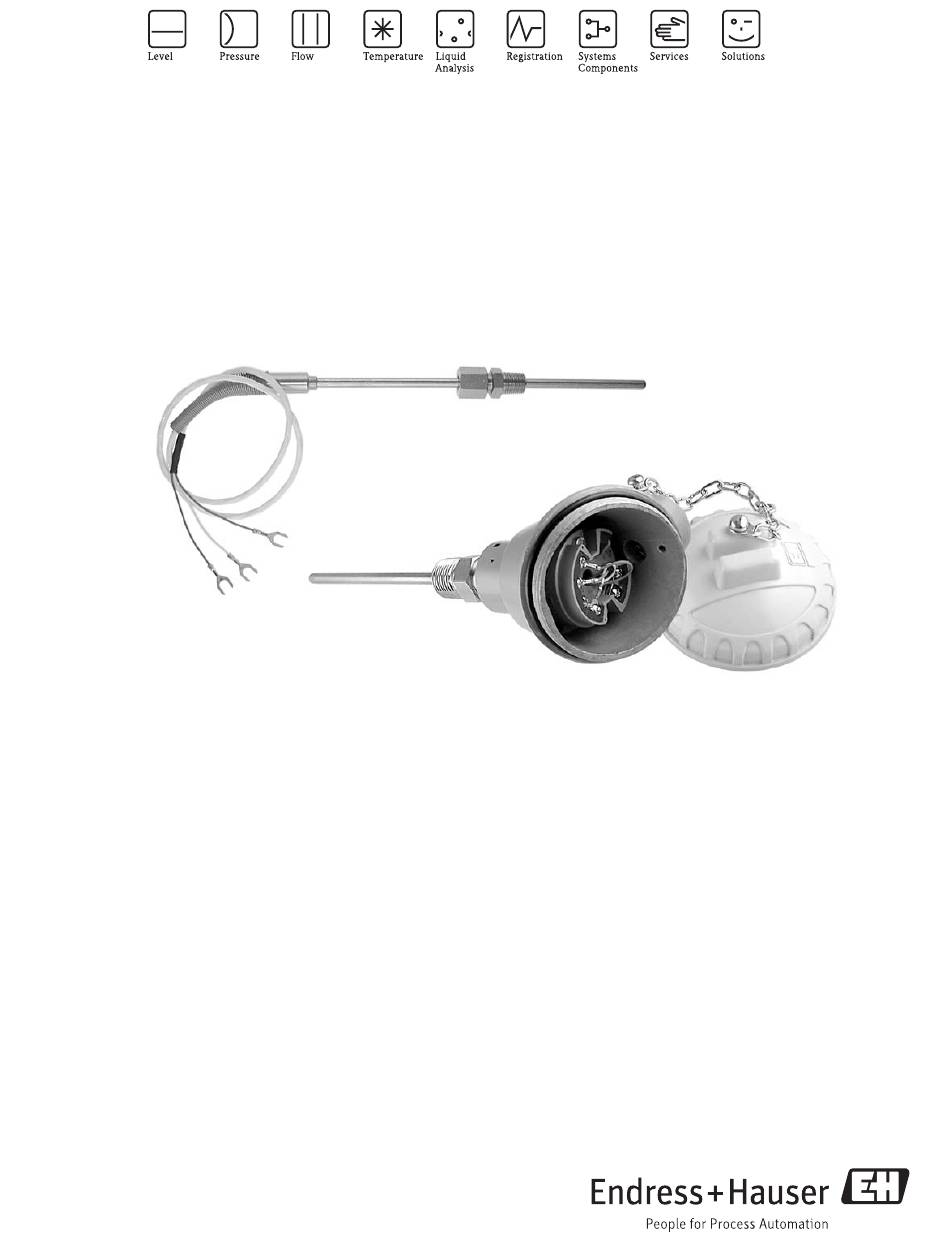

Endress+Hauser TH11 Technical Information

Technical Information

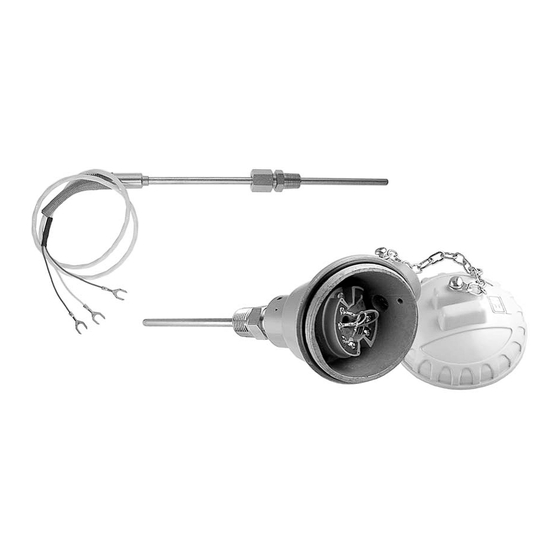

RTD TH11 and TH12
General purpose RTD with terminal head or conductor extension
lead wires for process and laboratory applications
Areas of application
The TH11 and TH12 temperature sensors are RTD's
designed for use in the process industry or factory
automation type of environment. They are made up
of a measurement probe with a RTD, insulation and
sheath.
Among other applications the sensors can be used on:
• Heat exchangers
• Power & recovery area
• Carbon regeneration furnace
• Dryers
• Flue Gas
• Compressor stations
• Process reactors
Head Transmitters
Instead of directly wiring your temperature sensors to
your control system, use transmitters to reduce
wiring and maintenance costs while increasing
measurement accuracy.
TI00108R/24/en
71147552
Your benefits
• High flexibility due to modular assembly with standard
terminal heads and customized immersion length
• One Source shopping for temperature measurement
solutions. World class transmitter with integrated sensor
offering.
- Remove and Install straight out of the box!
• Improved Galvanic Isolation on most devices (2 kV)
• Simplified Model Structure: Competitively priced, offers
great value. Easy to order and reorder. A single model
number includes sensor and transmitter assembly for a
complete point solution
®
• All iTEMP transmitters provide long term
stability ≤ 0.05 % per year
• Fast response time with reduced/tapered tip form
