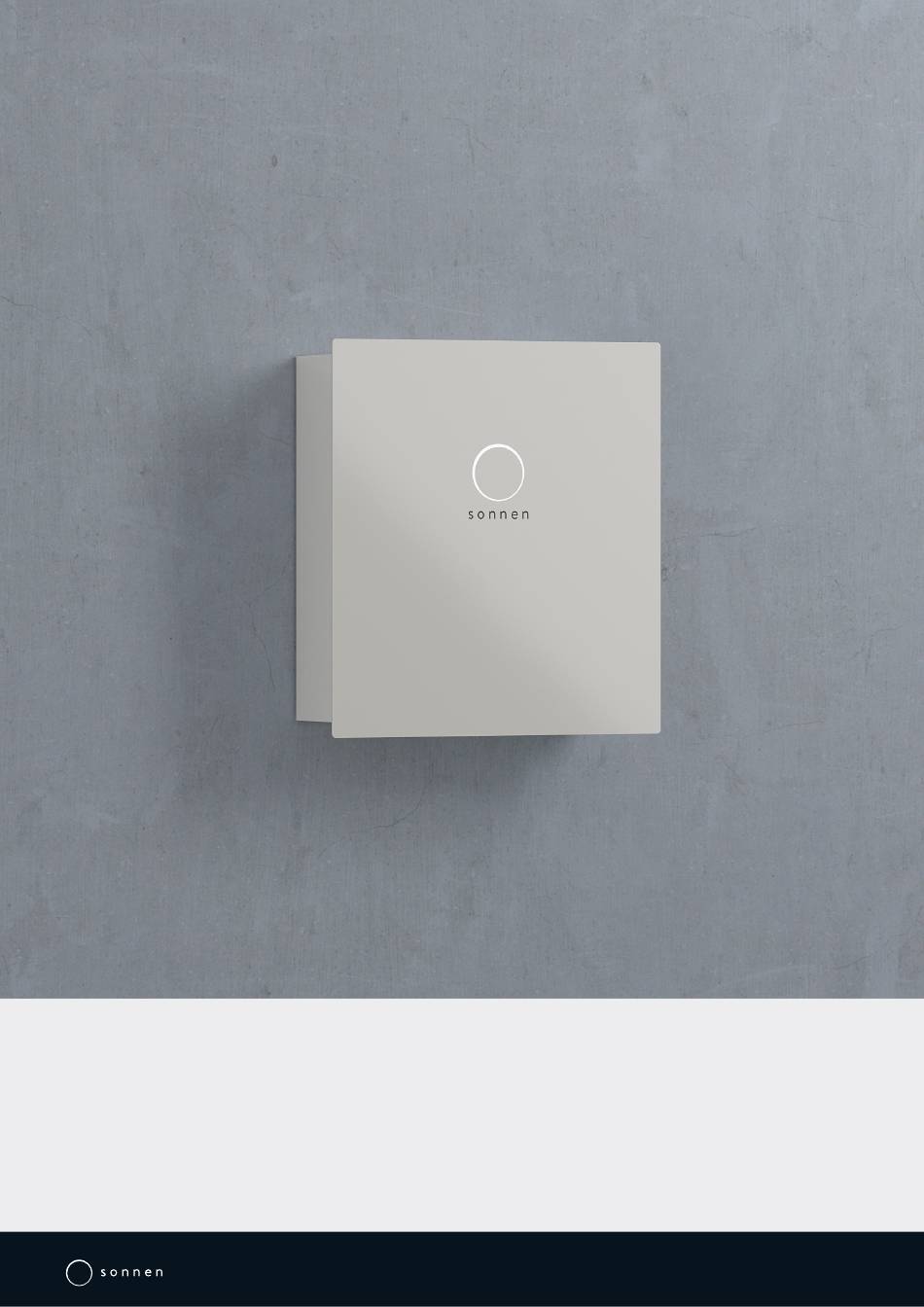

- Page 1 Operating instructions | for operators sonnenBackup-Box for sonnenBatterie eco 8.0 and hybrid 8.1 KD-493 • Part no. 22324 • Version X00 info@sonnen.de • sonnen.de...
- Page 2 „ Read this documentation carefully before installation / operation. „ Retain this document for reference purposes. Publisher sonnen GmbH Am Riedbach 1 D-87499 Wildpoldsried Service number +49 8304 92933 444 Email info@sonnen.de Document Document number Part number 22324 Version Valid for Publication date 11/06/2018 Operating instructions sonnenBackup-Box...
-
Page 3: Table Of Contents
Table of contents Table of contents 1 Information about this document...................... 4 Target group of this document .................... 4 Designations in this document .................... 4 1.3 Explanation of symbols........................ 4 2 Safety................................ 5 Intended use............................ 5 2.2 Requirements for the electrician.................... 5 2.3 Operating the Backup-Box ...................... 5 2.4 Product modifications or changes to the product environment ........ -
Page 4: Information About This Document
1 | Information about this document 1 Information about this document This document describes the operation of the sonnenBackup-Box. „ Read this document in its entirety. „ Keep this document in the vicinity of the sonnenBatterie. 1.1 Target group of this document This document is intended for the operator of the storage system and the Backup-Box. -
Page 5: Safety
The sonnenBackup-Box is an emergency power unit designed to supplement the sonnenBatterie eco 8.0 or hybrid 8.1. The Backup-Box - in conjunction with the appropriate storage system of the sonnen GmbH - serves to supply power in the event of a power failure. Any other use is considered improper use. -
Page 6: Product Modifications Or Changes To The Product Environment
The Backup-Box contains live electrical parts, which poses a risk of electrical 5 min shock. The Backup-Box and storage system inverter also contain capacitors which carry voltage even after the storage system is switched off. Therefore: „ Do not open the Backup-Box. 6 / 20 Operating instructions sonnenBackup-Box... -
Page 7: Product Description
Product description | 3 3 Product description 3.1 Technical data sonnenBackup-Box System data Maximum power (2 sec.) 4,100 VA Overload (30 min.) max. 2,800 VA Nominal power 1,800 VA Nominal frequency 50 Hz Output voltage 230 V +/- 10 % Mains connection three-phase, L1 / L2 / L3 / N / PE... -
Page 8: Type Plate
CE mark. The product meets the requirements of the applic- able EU Directives. WEEE mark. The product must not be disposed of in house- hold waste, dispose of it through environmentally friendly col- lection centres. 8 / 20 Operating instructions sonnenBackup-Box... - Page 9 Product description | 3 Symbol Meaning Observe the documentation. The documentation contains safety information. KD-493 | 22324 | EN | X00 9 / 20...
-
Page 10: Operation
All consumers in the house are supplied with electrical power. The storage system controls - as described in the product documentation of the storage system - the energy flows in the building. 10 / 20 Operating instructions sonnenBackup-Box... -
Page 11: Backup Operation - Grid Outage
Operation | 4 4.1.2 Backup operation - grid outage ON AL Test Reset kΩ Illustration 2: Backup operation - grid outage PV system Storage system Inverter of the Backup-Box Battery of the storage system Backup-Box Public electrical mains Consumer connected to phase L1 Consumer connected to phase L2 Consumer connected to phase L3 The Backup-Box (3) automatically detects a grid outage. -
Page 12: Setting The Backup Buffer
„ Log in as user with the following password: Sonnen2016 The Dashboard appears. „ On the web interface of the storage system, navigate to the Settings page. „ Change the percentage for backup-buffer to a desired value. 12 / 20 Operating instructions sonnenBackup-Box... -
Page 13: Switching Off The Backup-Box
Switching off the Backup-Box | 5 5 Switching off the Backup-Box To switch off the Backup-Box manually, the following procedure can be carried out. In order to be able to work on the Backup-Box safely it must be disconnec- ted from the power supply (see next section). Disconnect the power supply to the storage system as described in the relev- ant product documentation. -
Page 14: Maintenance And Cleaning
„ Do not use water jets. „ Carefully clean the outside of the Backup-Box with a clean, moist cloth. For tougher dirt, use a small amount of household dishwashing detergent on a moist cloth. 14 / 20 Operating instructions sonnenBackup-Box... -
Page 15: Uninstallation And Disposal
Uninstallation and disposal | 7 7 Uninstallation and disposal 7.1 Uninstallation DANGER Improper uninstallation of the Backup-Box Danger to life due to electrocution! „ The Backup-Box must only be uninstalled by authorised electricians. 7.2 Disposal The Backup-Box must not be disposed of as domestic waste! „... -
Page 16: Troubleshooting
Backup-Box . Only connect electrical consumers to phase L1 when they have a power con- sumption that does not ex- ceed the maximum power of the Backup-Box when switched on. 16 / 20 Operating instructions sonnenBackup-Box... - Page 20 GmbH Am Riedbach 1 D-87499 Wildpoldsried...
