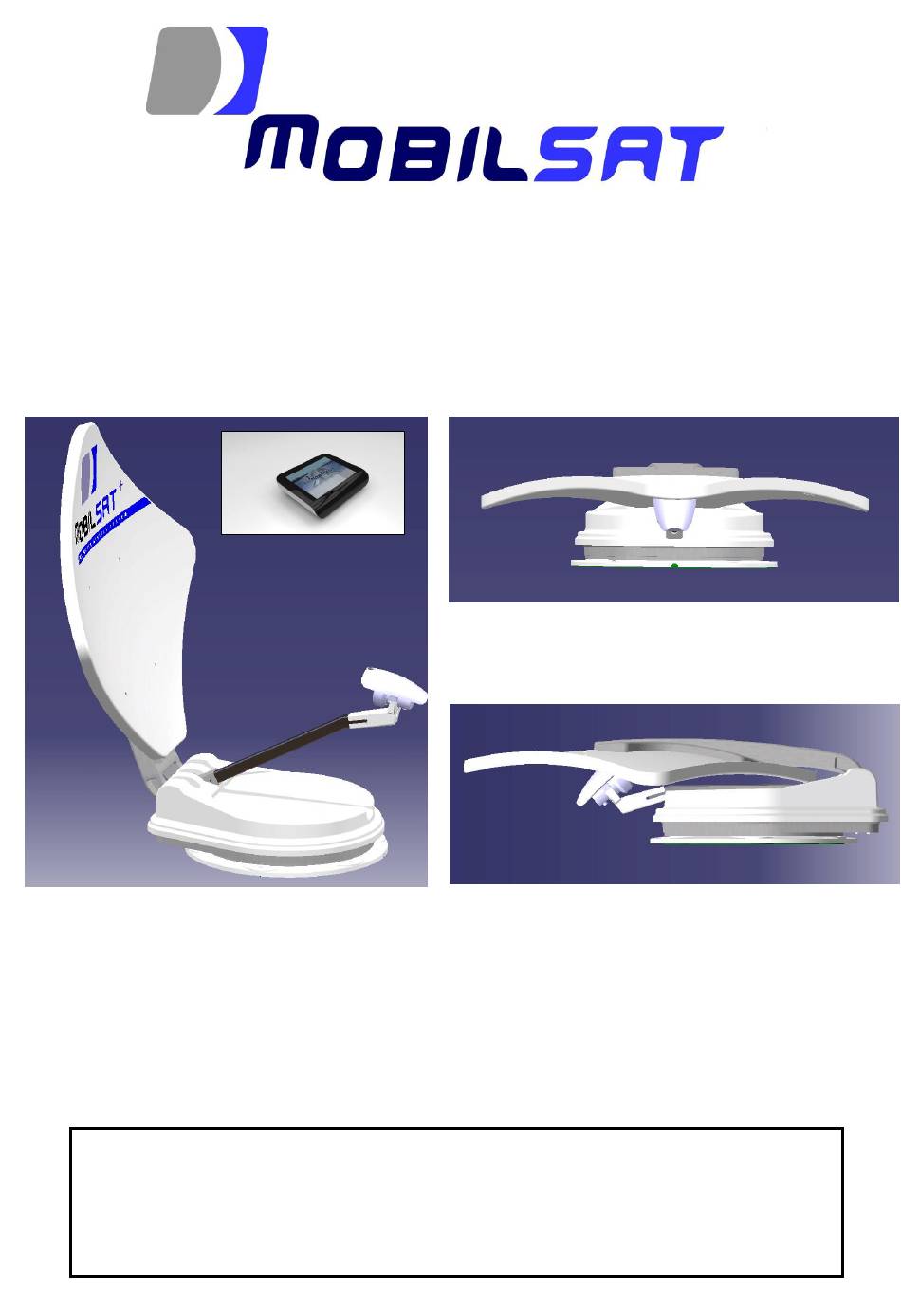

Digital satellite antenna
with touch screen control panel
Mounting instructions
To exercise the right of the 24 months warranty is mandatory that in the sales
document is reported the Mobilsat serial number, that can be found:
1. under the antenna base
2. at the end of this booklet
3. on the antenna packaging
User Manual
IMPORTANT
Advertisement
Table of Contents
Related Manuals for Mobiltech MobilSat
Summary of Contents for Mobiltech MobilSat
- Page 1 User Manual IMPORTANT To exercise the right of the 24 months warranty is mandatory that in the sales document is reported the Mobilsat serial number, that can be found: 1. under the antenna base 2. at the end of this booklet...
-
Page 2: Table Of Contents
Mounting Instructions – User Manual MobilSat SUMMARY Mounting instructions ......................... 3 Safety instructions .......................... 3 1.1.1 Proper use (for the intended purpose) ..................3 1.1.2 Safety during installation work ....................3 1.1.3 Proper installation and safety ....................4 1.1.4 Adhesive sealant ........................4 1.1.5... -
Page 3: Mounting Instructions
Mounting Instructions – User Manual MobilSat 1 Mounting instructions Read carefully and completely this manual at least once before starting with mounting operations. ATTENTION The antenna and the control panel must be mounted only by qualified personnel In order to prevent danger during mounting operations, during normal operation and during vehicle moving, please observe carefully the information provided in this manual. -
Page 4: Proper Installation And Safety
Mounting Instructions – User Manual MobilSat vehicle roof is sufficiently strong and stable to carry out the installation work (risk of damage or collapsing of roof). Make sure that: The turntable and connected units are disconnected from the power supply ... -
Page 5: Certifications
Mounting Instructions – User Manual MobilSat Certifications MobilSat complies with the following regulations Electromagnetic Ref rule: EN 55022:2010 compatibilità 2004/108/CE EN 55024:2010 Safety Ref rule: EN 12100 2006/95/CE EN 349 EN 13857 1.3 Packaging content The received package contains the following items:... -
Page 6: External Unit Space Requirements
Mounting Instructions – User Manual MobilSat 1.5.2 External unit space requirements Be sure that there is enough space for the folded up system and for the complete rotation of the antenna. The space requirements for a correct mounting of the external unit are displayed in the... -
Page 7: Installation Of The Mounting Plate
It’s absolutely needed to mark the roof of the vehicle with a line, in order to exclude the possibility to mount the assembly plate in a wrong direction. MobilSat antenna can be mounted in only one direction; LNB must be oriented towards the rear of the vehicle. All other positions will not be considered as correct and will cause immediate guarantee expiration. -
Page 8: Power Supply
Mounting Instructions – User Manual MobilSat b) Take care to cable fixing, in order to avoid oscillations - when the caravan is in motion. Such oscillations could damage or broke internal wires; along the route to the control unit fix the cable to the caravan walls using a commercially available cable fixing system. -
Page 9: Protection Circuit
Mounting Instructions – User Manual MobilSat When the system has been connected correctly to a power supply, an auto test will be performed. If an error message appears on the display, look up the cause specified in the user manual section 1.5.9 Protection circuit... -
Page 10: User Manual
Mounting Instructions – User Manual MobilSat 2 User manual For proper operation of the tracking system and the correct reception of the signal from the satellite, pay attention that there are no obstructions between the dish and the south, as the majority of the satellites covering Europe are facing south. -
Page 11: Basic Operations
Mounting Instructions – User Manual MobilSat 2.3 Basic operations Switch on and pointing: Tap the touch screen to turn it on and press the "On / Off" button, the antenna automatically performs the search and tracking. After 3 minutes the display turns off and enters in standby mode. -
Page 12: Installer Menu
Mounting Instructions – User Manual MobilSat Satellite selection: in this menu you can select the desired satellite from the three included in favorites. Pressing the “Exit” button antenna automatically will search the selected satellite Options menu: in this menu you can change language, adjust clock and enter the Installer menu 2.4 Installer menu... -
Page 13: Manual Pointing (Cross-Polarization "Skew" Setting)
Mounting Instructions – User Manual MobilSat New data can be inserted by pressing the related box: Frequency (Freq): enter the frequency of the new transponder and add two zeros (see figure) with the numeric keys Symbol rate (Baud): enter the data of the new transponder... -
Page 14: List Of Available Satellites
Mounting Instructions – User Manual MobilSat 2.6 List of available satellites In the following table is displayed the list of available satellites; positions 17-20 can be customized via the Installer Menu 6-10 11-15 16-20 AMOS 3W ATLANTIC BIRD 5W EUTELSAT 7E TURKSAT 42E ASTRA 4.8E... -
Page 15: Technical Data
Mounting Instructions – User Manual MobilSat 4 Technical data Power supply: 10 - 17,5V Current consumption stand-by mode: 22mA Display consumption stand-by mode: 22mA Typical consumption during sat search: 2,5A MAximum consumption during sat search: Typical time for sat search:... -
Page 16: References
Mounting Instructions – User Manual MobilSat 6 References Producer Retailer stamp Mobiltech s.a.s. Via Brughetti, 9/E 20030 Bovisio Masciago (MI) Tel: (+39) 0362 – 544.928 Fax: (+39) 0362 – 576.478 Internet: www.mobiltech.it Mailto: info@mobiltech.it Serial Number label Page 16 of 16...
