DISMOUNT MANUAL MOBILSAT 2016

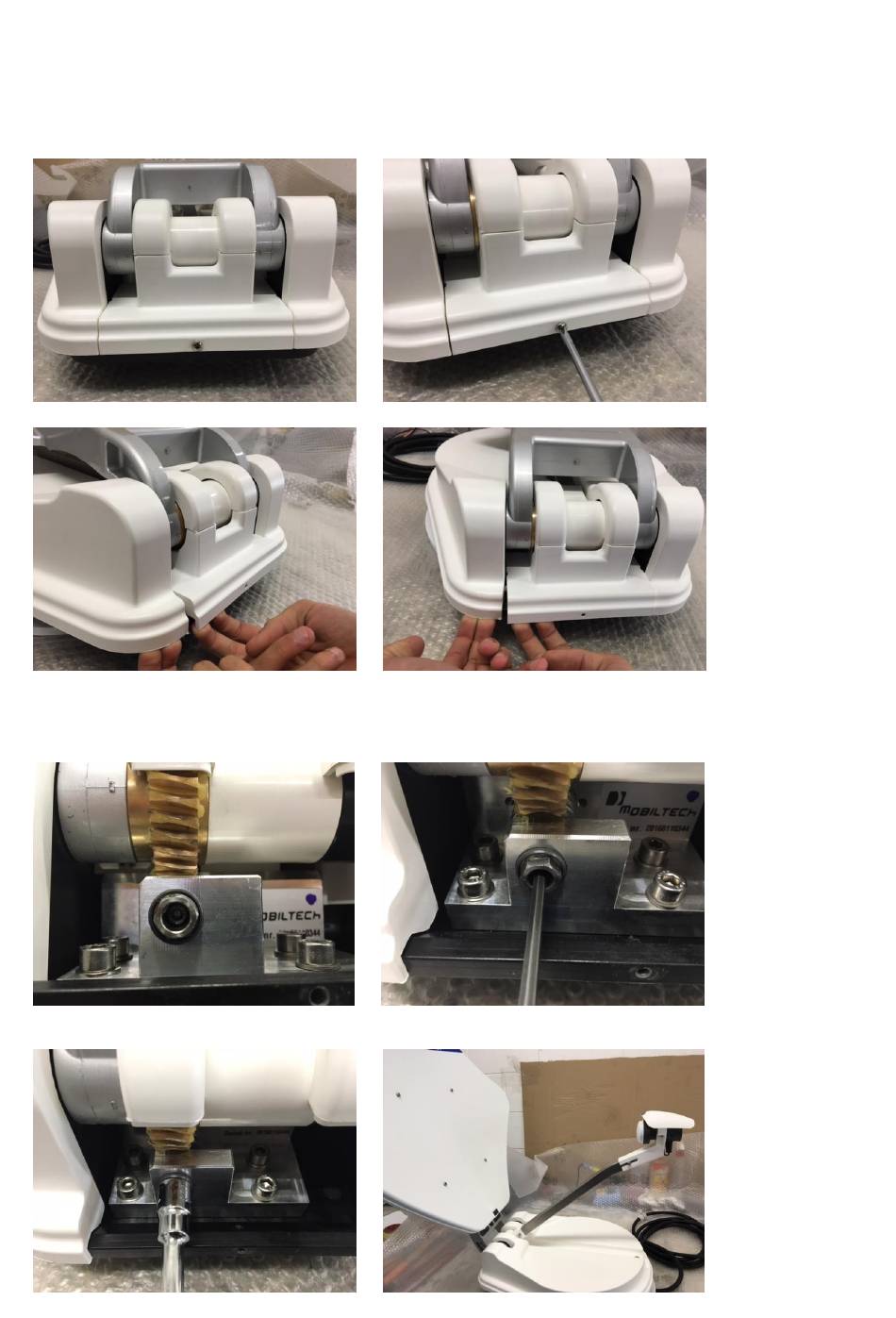

1) Remove the skrew placed in the rear part with a Phillips screwdriver.
2) Lift the engine cover to remove the rear cover.
3) With a 4mm Allen key unscrew 5 turns the screw inside the wormscrew then push forward the Allen
key to release the elevation shaft from the wormscrew. In this way the anchor plug disengages the
mechanism and allows the handling of the elevation group.
4) With a 13mm key open the antenna up to searching elevation and lift the LNB arm.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Mobiltech MOBILSAT 2016
Summary of Contents for Mobiltech MOBILSAT 2016
- Page 1 DISMOUNT MANUAL MOBILSAT 2016 1) Remove the skrew placed in the rear part with a Phillips screwdriver. 2) Lift the engine cover to remove the rear cover. 3) With a 4mm Allen key unscrew 5 turns the screw inside the wormscrew then push forward the Allen key to release the elevation shaft from the wormscrew.
- Page 2 5) Remove the chrome cap with a flat screwdriver and unscrew the two screws holding the cover, one placed under the chrome cap and the second one in the back as photo. 6) Unscrew the screws that fix the antenna to the base glued to the roof of the camper with a 10mm hex wrench.
- Page 3 B1) With a 13mm wrench unscrew the locknut that fix the rotation motor. B2) Lift the rotation motor and remove it from the shaft. B3) Rotate the shaft manually to make visible the 2 screws and remove them. B4) Cut the cable ties, remove the connectors and the cable. 7) Upon reassembly to reconnect the elevation motor shaft to the wormscrew match the anchor plug with the slot in the wormscrew and tighten the screw inside the wormscrew with a 4mm Allen.
- Page 4 Barin Luca & C. s.a.s. Via Brughetti 6 – 20813 Bovisio Masciago (MB) tel. 0362/544928 web: www.mobiltech.it info@mobiltech.it...
