Wesco 272228 Assembly Instructions And Parts Manual

Industrial Products, Inc.

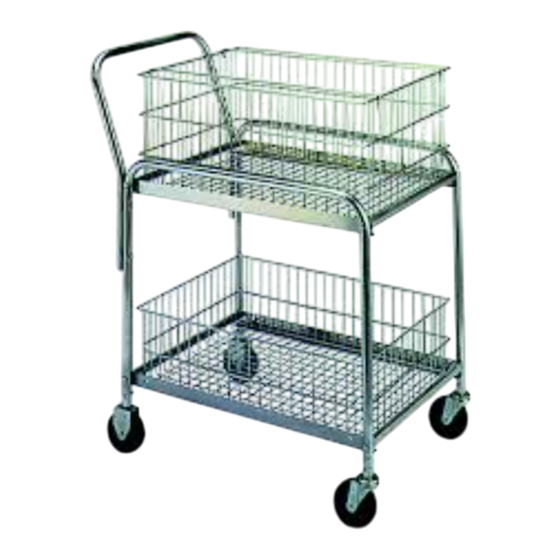

The Wesco Wire Office Carts are designed for a wide variety of
office, light warehouse and retail uses.
Wesco Industrial Products, Inc
1250 Welsh Road
North Wales, PA 19454
Tel: 215-699-7031 Fax: 215-699-3836
Contact the factory for parts information and ordering.
Visit us on the web at www.wescomfg.com
When unpacking the Wesco Product, check carefully for shipping
damage and missing parts. If damage has occurred or any parts
are missing, file a claim with the delivering carrier within 24 hours
and notify the dealer from whom the unit was purchased.

Warranty Repairs

If the unit does not work properly, contact your dealer or the
factory (215-699-7031) for units less than 90 days old.

Non-Warranty Service

If units are older than 90 days, repairs can be made easily on
site with factory supplied parts.
NOTE: Do not send units to the factory for service without first
obtaining a "Return Merchandise Authorization" (RMA) number
from the customer service department.
responsible for merchandise
authorization.

General Safety Information

The Wesco Wire Office Carts are designed for specific functions.
To insure proper use, the following instructions must be adhered
to:
(1)
Capacities are as follows:
- 272228 Small Cart: 200 lbs
- 272230 Small Cart: 200 lbs
- 272231 Large Cart: 250 lbs
(2)
Capacities are based on evenly distributed loads.
(3)
Periodically inspect unit for damages and loose or missing
hardware. If required, remove from service and repair.
(4)
Use only genuine Wesco replacement parts when
servicing.
(1) Lubricate moving parts periodically.
(2)
Check bolts and nuts frequently for tightness.
LIMITED WARRANTY
WESCO INDUSTRIAL PRODUCTS (WESCO) warrants to the purchaser of this product for a period of ninety (90) days from the date of purchase that this product shall be free of
defects in material and/or workmanship, as follows:
1. WESCO will supply, at no charge, new or rebuilt replacements for any part that fails through a defect in material and/or workmanship during the warranty period. To obtain warranty
service, you must deliver the product prepaid, to the WESCO factory.
2. This warranty does not cover any product or product part which has been subject to accident, misuse, abuse or negligence. WESCO shall only be liable under this warranty if the
product is used the manner intended by the manufacturer as specified in the written instructions furnished with this product.
REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY OF THE PURCHASER. ANY EXPRESS WARRANTY NOT PROVIDED IN
THIS WARRANTY DOCUMENT, AND ANY REMEDY FOR BREACH OF CONTRACT THAT, BUT FOR THIS PROVISION, MIGHT ARISE BY IMPLICATION OR OPERATION OF LAW,
IS HEREBY EXCLUDED AND DISCLAIMED. UNDER NO CIRCUMSTANCES SHALL WESCO BE LIABLE TO PURCHASER OR ANY OTHER PERSON FOR ANY INCIDENTAL OR
CONSEQUENTIAL DAMAGES, WHETHER ARISING OUT OF BREACH OF WARRANTY, EXPRESS OR IMPLIED, A BREACH OF CONTRACT OR OTHERWISE. EXCEPT TO THE
EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR ANY PARTICULAR PURPOSE ARE EXPRESSLY LIMITED
IN DURATION TO THE DURATION OF THIS LIMITED WARRANTY.
Some states do not allow the exclusion or limitation of incidental or consequential damages, or allow limitations on how long any implied warranty lasts, so the above limitations may not
apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
Assembly Instructions and Parts Manual
ATTENTION: TO INSURE SAFE AND EASY USE OF YOUR WESCO WIRE

Description

Model 272231

Unpacking

We will not be
returned without

Maintenance

Wire Office Cart
(P/N 272228, 272230 & 272231)
OFFICE CART, READ THESE INSTRUCTIONS BEFORE USING.

Large Cart (P/N 272231) Assembly

(1) Assemble cross tubes (#3) to side frames (#2) with 1-1/2"
screws (#12) and nuts (#14). Note: Upper angles (#4 with four
holes) and lower angles (#5 with holes and slots) should be
assembled between frames and cross tubes.
(2) Assemble handle (#1) to side frames (#2) with 2" screws (#11)
and nuts (#14).
(3) Assemble swivel casters (#9) to front legs of frames with 1-1/2"
screws (#12) and nuts (#14). Note: Braces (#6) should be
assembled between frames and nuts.
(4) Insert axle adapters (#8) into back legs of frames. Slide axle
(#7) through axle adapters. Assemble axle adapters to frames
with 1-1/2" screws and nuts. Note: The flat braces should be
assembled between the frames and nuts. Mount wheels (#10)
onto each side of axle. Assemble pushnuts (#15) onto each end
of axle.
(5) Assemble braces (#6) to lower angles (#5) with 3/8" screws
(#13).
(6) Mount lower basket into position, mount upper basket into
position. Clip short guide rod onto center of sides of upper
basket. Clip long guide rods onto ends of upper baskets.
Small Cart (P/N 272228 & 272230) Assembly
(A) To assemble frame (both units):
(1) Assemble cross tubes (#3) to side frames (#2) with 1-1/2"
screws (#8) and nuts (#10). Note: Upper angles (#4 with four
holes) and lower angles (#5 with holes and slots) should be
assembled between frames and cross tubes.
(2) Assemble handle (#1) to side frames (#2) with 2" screws (#7)
proper
and nuts (#10).
(B) To assemble #172231 Caster Set (For #272228):
(1) Assemble swivel casters (#16) to front legs of frames and rigid
casters (#17) to back legs of frames with 1-1/2" screws (#8) and
nuts (#10). Note: Braces (#6) should be assembled between
frames and nuts.
(2) Assemble braces (#6) to lower angles (#5) with 3/8" screws (#9)
(C) To assemble #172230 Caster/Wheel Set (For #272230):
(1) Assemble swivel casters (#13) to front legs of frames with
1-1/2" screws (#8) and nuts (#10). Note: Braces (#6) should be
assembled between frames and nuts.
(2) Insert axle adapters (#12) into back legs of frames. Slide axle
(#11) through axle adapters. Assemble axle adapters to frames
with 1-1/2" screws and nuts. Note: The flat braces should be
assembled between frames and nuts. Mount wheels (#14) onto
each side of axle. Assemble pushnuts (#15) onto each end of
axle.
(3) Assemble braces (#6) to lower angles (#5) with 3/8" screws
(#9).
(D) Basket Assembly/Both Carts:
(1) Mount lower basket into position.
(2) Mount upper basket into position.
(3) Clip long guide rods onto end of upper baskets.
