- Page 1 USER MANUAL MODEL: DS-A335 STANDBY/ON DS-A335...
-
Page 2: Table Of Contents
Should you encounter any problems, please contact the help line before you return this product back to the place of purchase. Contact our Toll Free Warranty Support Help Line 1300 366 144 Email: warrantyhelp@awa.com.au Visit our web site for FAQ's or request for service www.awa.com.au... -
Page 3: Safety Precautions
SAFETY PRECAUTIONS The lightning flash with arrowhead symbol, within an equila- teral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage " within the product's en- closure that may be of sufficient magnitude to constitute a risk of electric shock to persons. - Page 4 SAFETY PRECAUTIONS This item incorporates copy protection technology that is protected by U.S. patents and other intellectual property rights of Rovi Corporation. Except as otherwise required by law which cannot be excluded, reverse engineering and disassembly are prohibited. Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.
-
Page 5: Important Safety Instructions
CAUTION: PLEASE READ AND OBSERVE ALL WARNINGS AND INSTRUCTIONS GIVEN IN THIS MANUAL AND THOSE MARKED ON THE UNIT. RETAIN THIS BOOKLET FOR FUTURE REFERENCE. This set has been designed and manufactured to assure personal safety. Improper use can result in electric shock or fire hazard. -
Page 7: Playable Disc Type
PLAYABLE DISC TYPE Playable Disc Type: Disc Types Disc Logo Contents DVD VIDEO VIDEO-CD (VCD) AUDIO CD Designed for Windows Media JPEG KODAK PICTURE CD DivX CD-R CD-RW DVD+R DVD+RW DVD-R DVD-RW Discs other than those listed above can not be played. Non-standardized discs, even if they may be labeled as above cannot be played. -
Page 8: Playable File Type
PLAYABLE FILE TYPE Playable files formats Supported audio file formats This player does not support VBR Supported video file formats (Variable Bit Rate). This player does not support lossless encoding. DivX Video Files with following extensions can be played.: .avi, .divx, .AVI, .DIVX. Windows Media Audio (WMA) DivX Video(Codec) Format: DivX 3.11,DivX 4.x, Sampling frequencies: 32 kHz, 44.1 kHz and... -
Page 9: Accessories And Panel

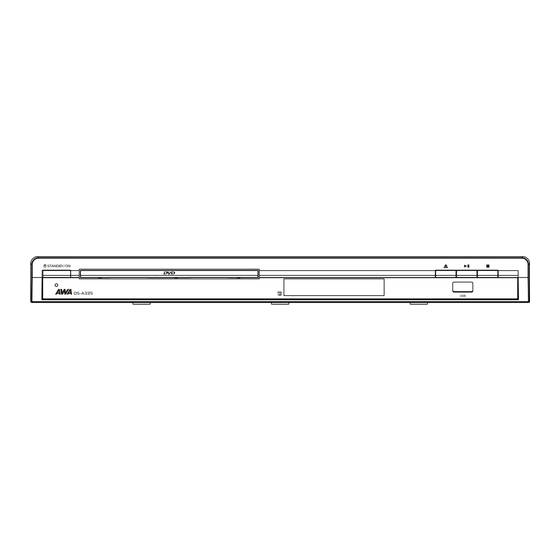

USER MANUAL F.REV F.FWD PREV NEXT PAUSE/STEP STOP DVD/USB AUDIO MUTE ANGLE VOLUME DS-A335 FRONT PANEL STANDBY/ON DS-A335 1. STANDBY/ON 6. OPEN/CLOSE 2. POWER INDICATOR 7. USB 3. TRAY 8. PLAY/PAUSE 4. REMOTE CONTROL SENSOR 9. STOP 5. LED SCREEN... -
Page 10: Basic Connection
BASIC CONNECTION REAR PANEL OUTPUT 5.1 DVD player with HDMI MODEL: DS-A335 AC: 110V-240V~ 50/60Hz U.S. Patent Nos. 6,836,549; 6,381,747; CR / PR POWER: 12W MADE IN CHINA 7,050,698; 6,516,132; and 5,583,936. CAUTION CENTER CB / PB S/N: 110V-240V~ 50/60Hz... - Page 11 BASIC CONNECTION Connecting to a audio system and TV equipped with YUV video input To CR/PR video input To CB/PB video input To audio inputs of the amplifier To Y video input Connecting to an amplifier equipped with a digital audio input and TV To COAXIAL type digital audio input...
-
Page 12: Remote Control
F.FWD PREV NEXT DOWN 10. ENTER/PLAY 25. NEXT PAUSE/STEP STOP DVD/USB AUDIO MUTE ANGLE VOLUME 11. ZOOM 26. PREVIOUS 12. FAST REVERSE 27. AUDIO 13. FAST FORWARD 28. DVD/USB 14. PAUSE/STEP 29. VOLUME + DS-A335 15. STOP 30. VOLUME -... -
Page 13: Basic Playback
BASIC PLAYBACK Stop playback Preparations When you want to view a disc, turn on the TV and 1. Press STOP button to go to stop mode, the TV select the video input connected to the DVD player. screen will show the start logo. With certain disc types, such as DVD, the player can resume from the point where it was stopped. -
Page 14: Advanced Playback
ADVANCED PLAYBACK IMPORTANT NOTE: THE FOLLOWING FUNCTIONS ARE APPLICABLE ONLY TO DVD DISCS. IF OTHER DISC FORMATS ARE PLAYED, SCREEN DISPLAY AND OPERATION WILL BE DIFFERENT. V.MODE SEARCH Press this button one time, the screen will display This button can set VIDEO output among "CVBS" or search menu, the second will cancel. -
Page 15: Special Function Playback
SPECIAL FUNCTION PLAYBACK AUDIO CHANNEL CHOOSE VOLUME and MUTE Press this button on remote control to change the Press " + " at the right of VOLUME to increase mode of audio. volume, " - " to decrease to volume. Pressing MUTE For example: Audio 1/2: Dolby D 2 CH English once will display MUTE (no voice), the second press Audio 2/2:... - Page 16 SPECIAL FUNCTION PLAYBACK CD RIPPING FUNCTION INTRODUCTION This function allows user to copy the files of CD to a USB mass CD RIP OPTIONS TRACK storage device. When playing an Audio CD, insert a USB drive, speed Normal track 01 05:28 then press the CD ripping key (Subtitle key in remote), immediately bitrate...
- Page 17 SPECIAL FUNCTION PLAYBACK Kodak Picture CD Playback Playback (Normal) When a Kodak Picture CD is inserted on the unit, an automatic slide show is launched. Each picture in the Kodak Picture CD will be displayed consecutively in a slide-show fashion and will be scaled to fit in the whole TV screen.
-
Page 18: System Setup
SYSTEM SETUP When you press SETUP key on the remote control, 1.2 ANGLE MARK the setup menu will be displayed. ANGLE MARK: Users can select a particular camera 1.Within the setup menu, you can use UP, DOWN, angle when playing a DVD that offers multiple angles. LEFT and RIGHT buttons on the remote control to move the cursor, and then press the... - Page 19 SYSTEM SETUP 2.1 SPEAKER SETUP PAGE 2.2 SPDIF SETUP PAGE 2.1.1 DOWNMlX SETUP 2.2.1 SPDlF OUTPUT DOWNMIX MODE: sets front speakers to Lt/Rt SPDlF OUTPUT MODE: Sets the audio outputs. STEREO, V SURR or 5.1CH. Dolby D The first 3 settings ( Lt/Rt, STEREO, V SURR) General Audio Video...
- Page 20 SYSTEM SETUP 2.3.2 BASS BOOST 4.1 VIDEO OUTPUT BASS BOOST: Enhance the bass degree. VIDEO OUT : Set the video output. 2.3.3 SUPER BASS SUPER BASS: Enhance the super bass degree. 4.2 RESOLUTION SETUP PAGE 2.3.4 TREBLE BOOST RESOLUTION: You can select the resolution output TREBLE BOOST: Enhance the Treble boost of the player to match your TV.
- Page 21 SYSTEM SETUP 4.3.7 LUMA DELAY 5.2 PBC LUMA ( Luminance ) DELAY: Set the luminance delay of video output depend on the TV's brightness, PBC MODE: Sets the PBC (Playback Control) to be color. It sets 1T commonly for DVD. on or off .
-
Page 22: Trouble Shooting
TROUBLE SHOOTING Please check the following guide for the possible cause and solution for a problem before contacting the nearest service center or dealer for repairs. SYMPTOMS AND CORRECTIONS SYMPTOMS CORRECTIONS Check to make sure that the power connection is secure. No power Make sure the connection between the player and the TV is secure. -
Page 23: Specifications
SPECIFICATIONS System and Outputs VF Signal NTSC/PAL system CD: 20Hz-20KHz(EIAJ) Frequence DVD: 20Hz-44KHz(96KHz)(Sample result) response 20Hz-22KHz(48KHz)(Sample result) Audio S/N ratio > 90 dB MPEG1 V2.0; MPEG2 Video/Picture Audio MPEG LAYER2 standard Audio output Electric level output: 1.8 0.2V Impedance: 10Kohm (analog audio) Audio output Electric level output: 0.5Vp--p... - Page 24 SPECIFICATIONS Video Output Capabilities Resolutions Supported Resolutions Supported Video Output (NTSC Models) (PAL Models) 1080p 1080p 1080i 1080i HDMI 720p 720p 480p 576p 480i 576i 1080i 1080i 720p 720p Component video (Y, CB,CR) 480p 576p NTSC SD(480i) PAL SD(576i) Composite video NTSC SD(480i) PAL SD(576i) NTSC SD(480i)
- Page 25 Acts of God, pixel error, infestation by insects or vermin, exposure to abnormally corrosive conditions or any foreign object or matter having entered the product. § Mileage or travelling time in respect of service outside the authorised AWA Service Centre nor pick up and delivery cost incurred.
- Page 26 1-3090-A658-0000...
